Vernacare VORTEX AIR - Pneumatics Assembly

Page | 30
VORTEX AIR Technical Manual
Revision 6- Issued by N. Shields 24/08/2023

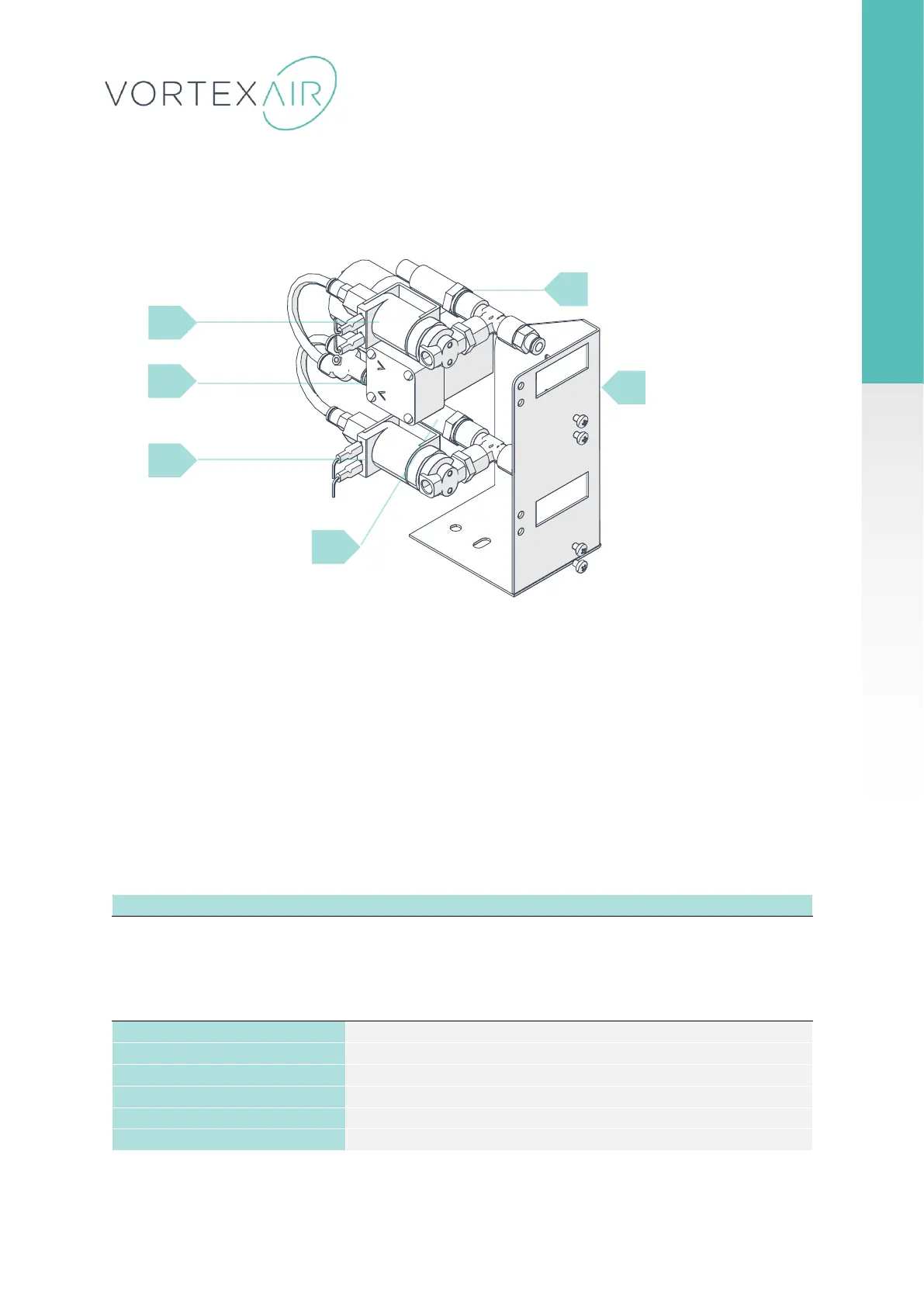

5.6. Pneumatics Assembly
How it Works
The pneumatics assembly is responsible for distribution of Air throughout the macerators
systems. This in turn controls both the drain and lid seal. Each of these contain their own
independent pressure sensors so in the event of failure the display will highlight the correct error.
1
Inflatable Lid Seal 3/2 Way Valve
2
Air Compressor
3
Diaphragm 3/2 Way Valve
4
Diaphragm Pressure Sensor
5
Inflatable Lid Seal Pressure Sensor
6
Pneumatic Assembly Bracket
2
1
3
6
5
4
