5.8. Interlock Assembly
How it Works
The interlock solenoid locks the lid in place when closed. The pin moves linearly into the adjacent
recess on the top cover moulding, this physically prevents the lid from opening whilst engaged.

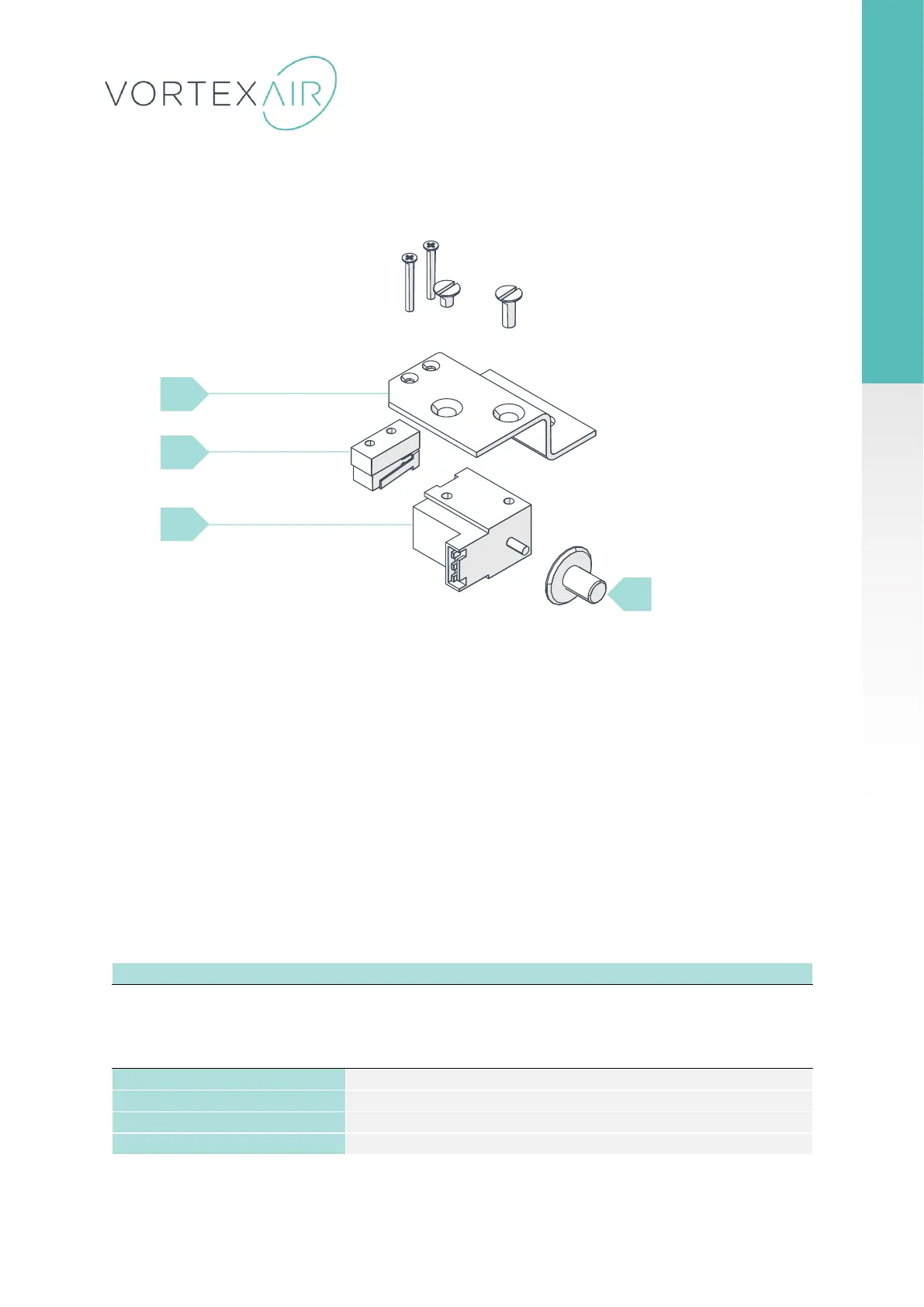

1
Interlock Bracket
2
Microswitch
3
Interlock Solenoid
4
Interlock Pin
1
2
3
4
