VXA-210 PILOT OPERATING MANUAL
45

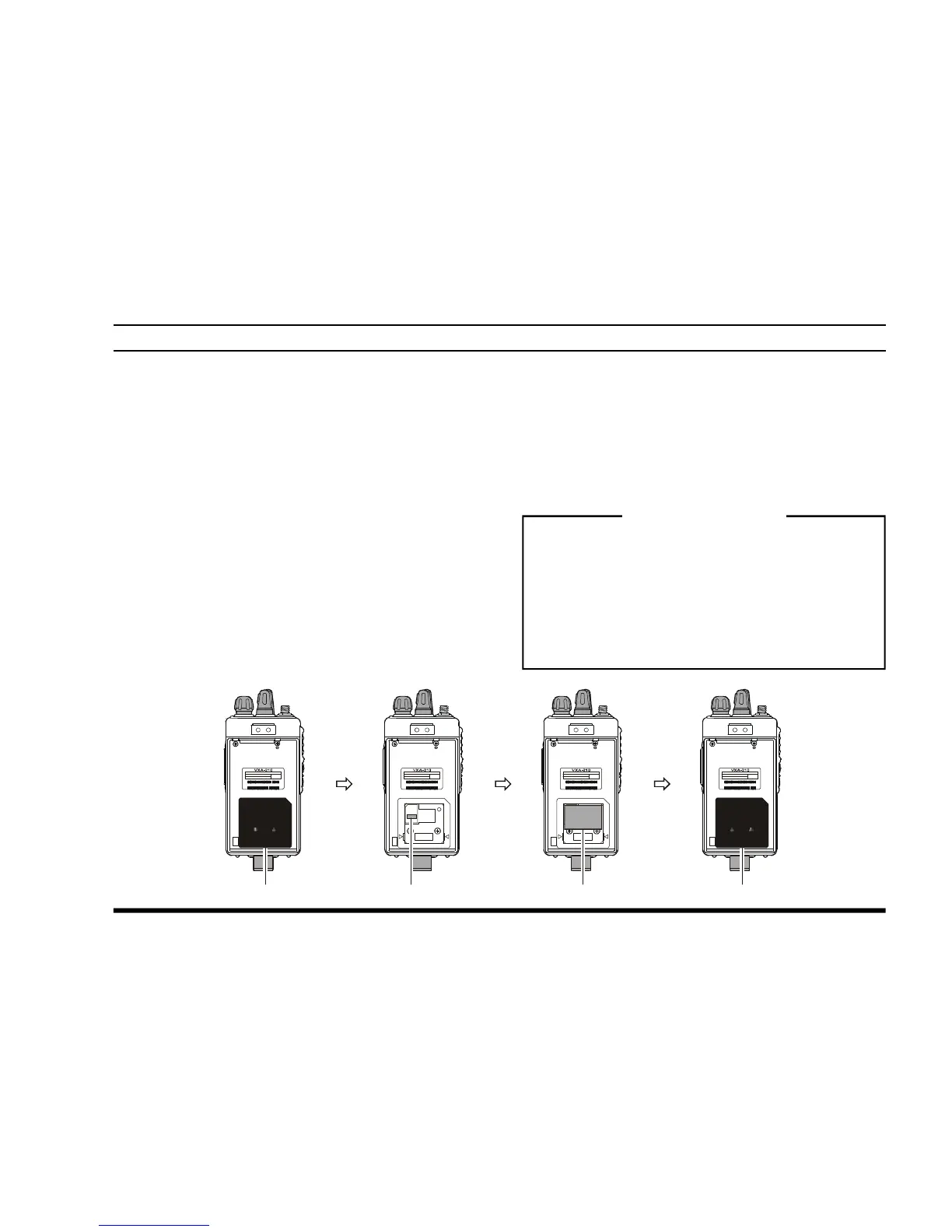

1. Make sure that the transceiver is off. Remove
the hard or soft case, if used.
2. Remove the two screws affixing the belt clip and
remove the belt clip, then remove the battery pack.
3. Locate the connector for the SU-1 under the
“Caution” label in the battery compartment on
the back of the radio, just carefully peel off the
“Caution” label.
4. Remove the small Rubber Cushion from the
“Caution” label. Keep this Rubber Cushion for
future use, because this Rubber Cushion must
be replaced on the connector board of the trans-
ceiver if you remove the SU-1 from the trans-
ceiver. We recommend that this Rubber Cushion
be put on the bottom of the SU-1.
INSTALLATION OF THE SU-1
Important Note
The Barometric pressure/Altitude feature of
the optional SU-1 are designed to be supple-
mental aids for the information of the user, and
are not intended to be a substitute for accu-
rate, calibrated Barometer or Altimeter devices
used for navigation critical to personal safety.
5. Align the connector on the SU-1 with the
transceiver’s connector and gently press the unit
into place.
6. Affix the “Caution” label, and replace the bat-
tery and the belt clip.
7. Installation is now complete.
