VXA-210 PILOT OPERATING MANUAL
4

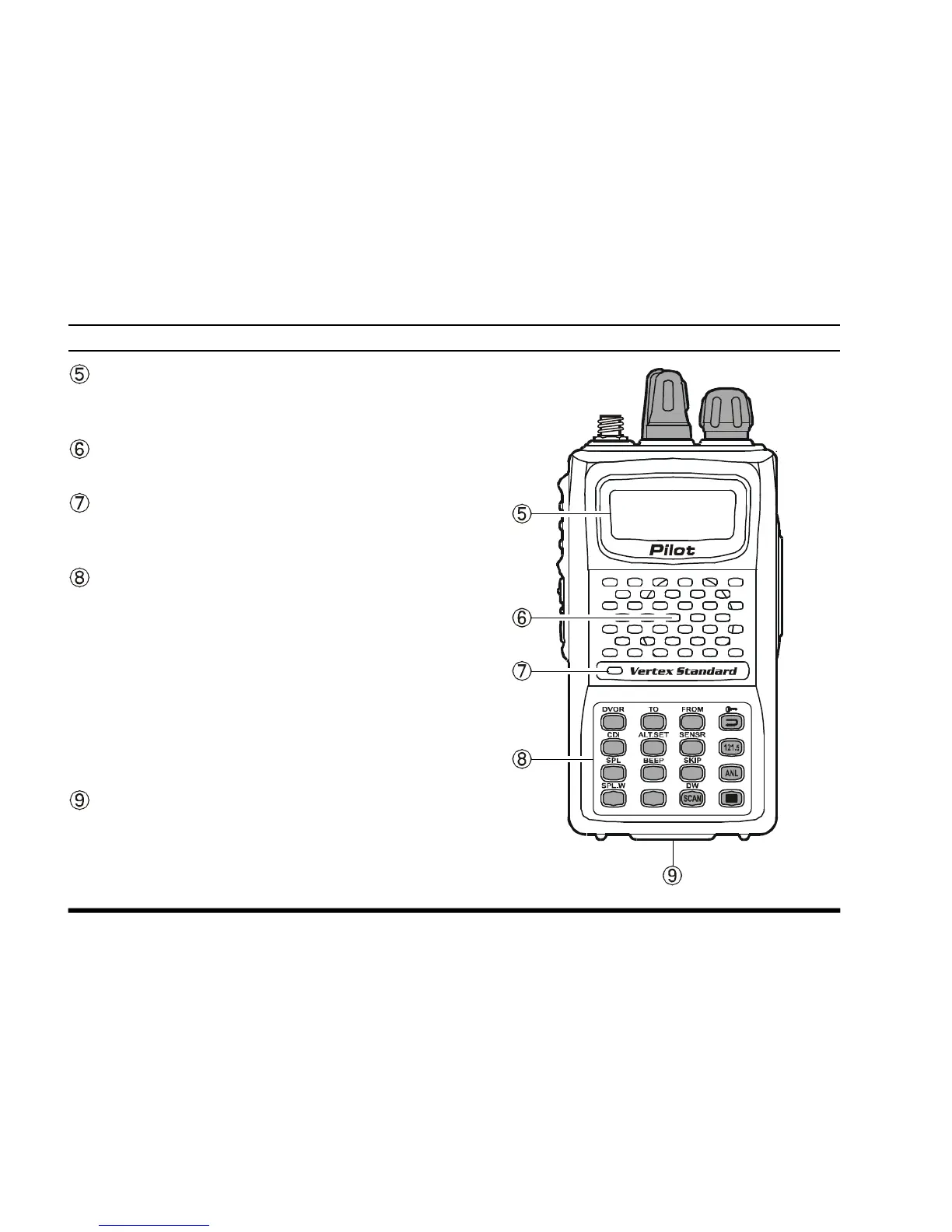

CONTROLS & CONNECTORS
(
FRONT PANEL
)
LCD (Liquid Crystal Display)
The display shows the selected operating condi-
tions as indicated on the next page.
Loudspeaker
The internal speaker is located in this position.
Microphone
Speak across this opening in a normal voice level
while pressing the PTT switch, to transmit.
Keypad
Several keys have dual functions.
The primary functions are labeled on the key top
(activated by simply pressing the key momen-
tarily), while the secondary functions are labeled
in yellow above the top edge of the key (acti-
vated by pressing the
[
F
]
key first, then the indi-
cated key).
These functions are described in detail on page 6.
Battery Pack Latch
Open this latch for battery removal.
1
4
7
To Next Page
