EXS
User Manual 10H52260UM60 - Rev. 1 - 10/2017 23
2.8 Installation Drawings

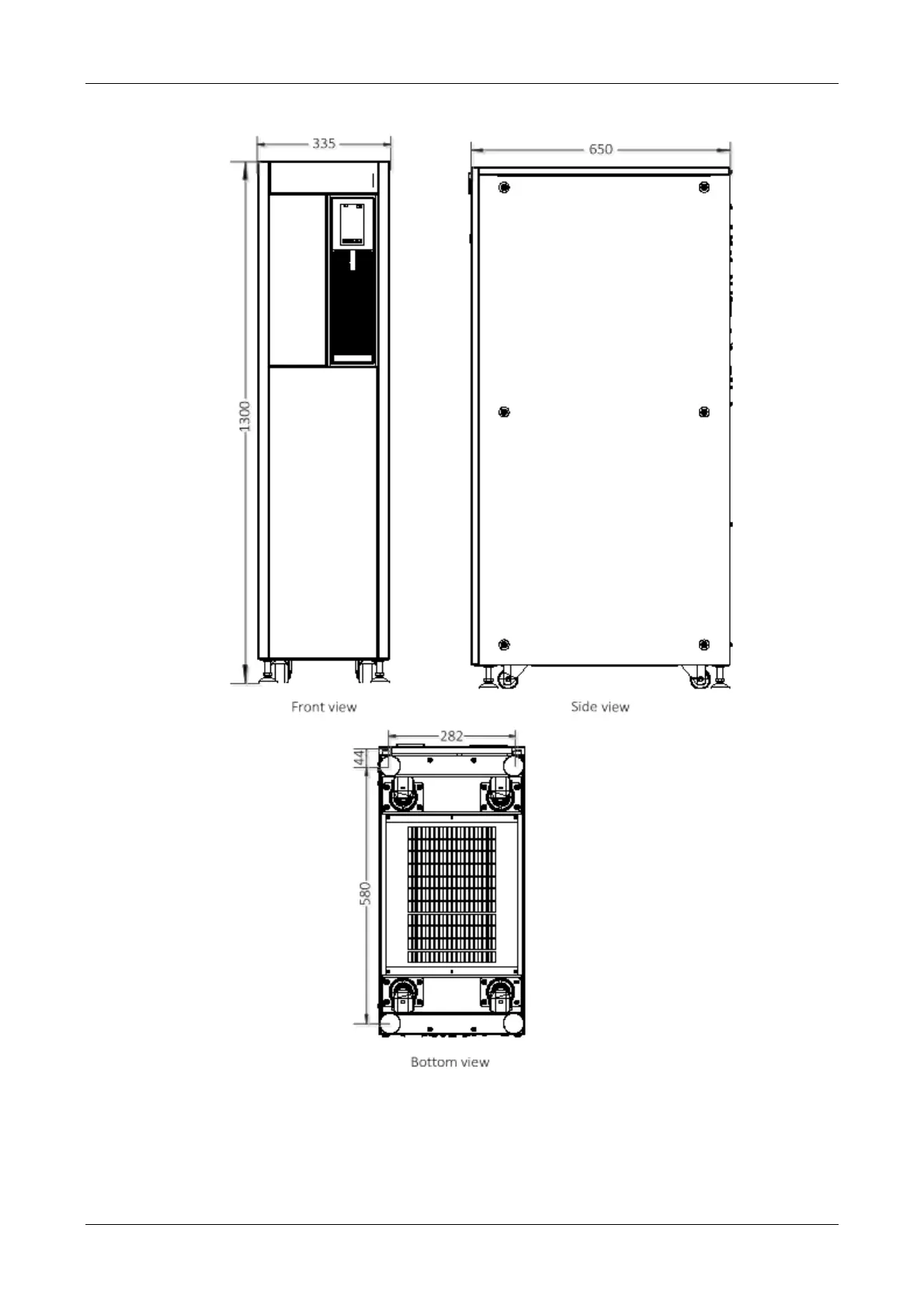

Figure 2-4 Front/side/bottom view of the standard UPS (unit: mm)
