EXS
User Manual 10H52260UM60 - Rev. 1 - 10/2017 61

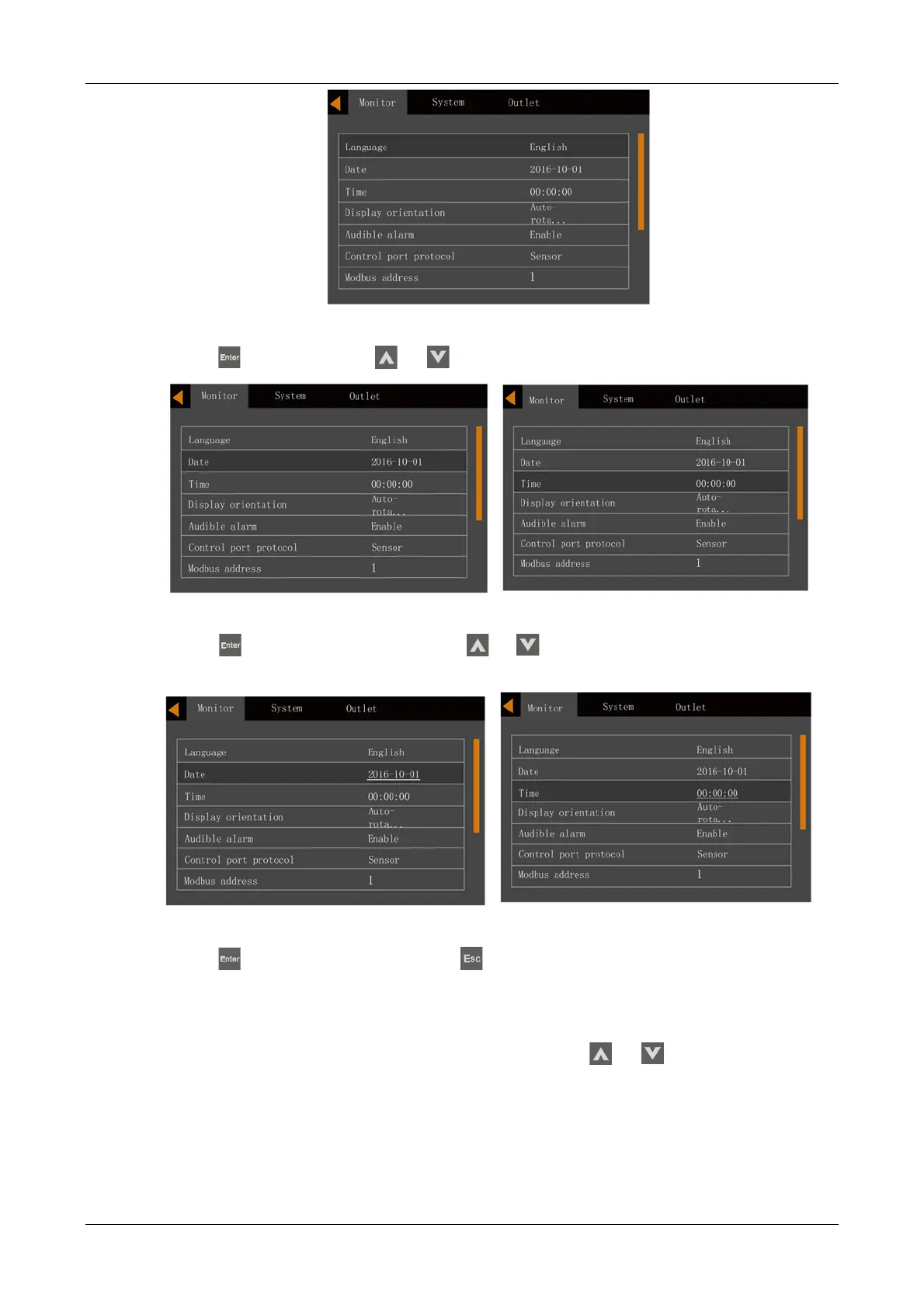

Figure 5-19 Monitor interface
3. Press the key, followed by the or key to highlight the date and time, see Figure 5-20.
Figure 5-20 Selecting date and time
4. Press the key, move the cursor and press the
or
key to change the date and time as required.
See Figure 5-21.
Figure 5-21 Changing date and time
5. Press the key to confirm, and then press the key several times to return to the main menu screen.
5.9 Setting the Password
1. After switching the UPS on, access the main menu screen and press the or key to move the cursor to
select 'Settings'. See Figure 5-22.
