EXS
40 User Manual 10H52260UM60 - Rev. 1 - 10/2017

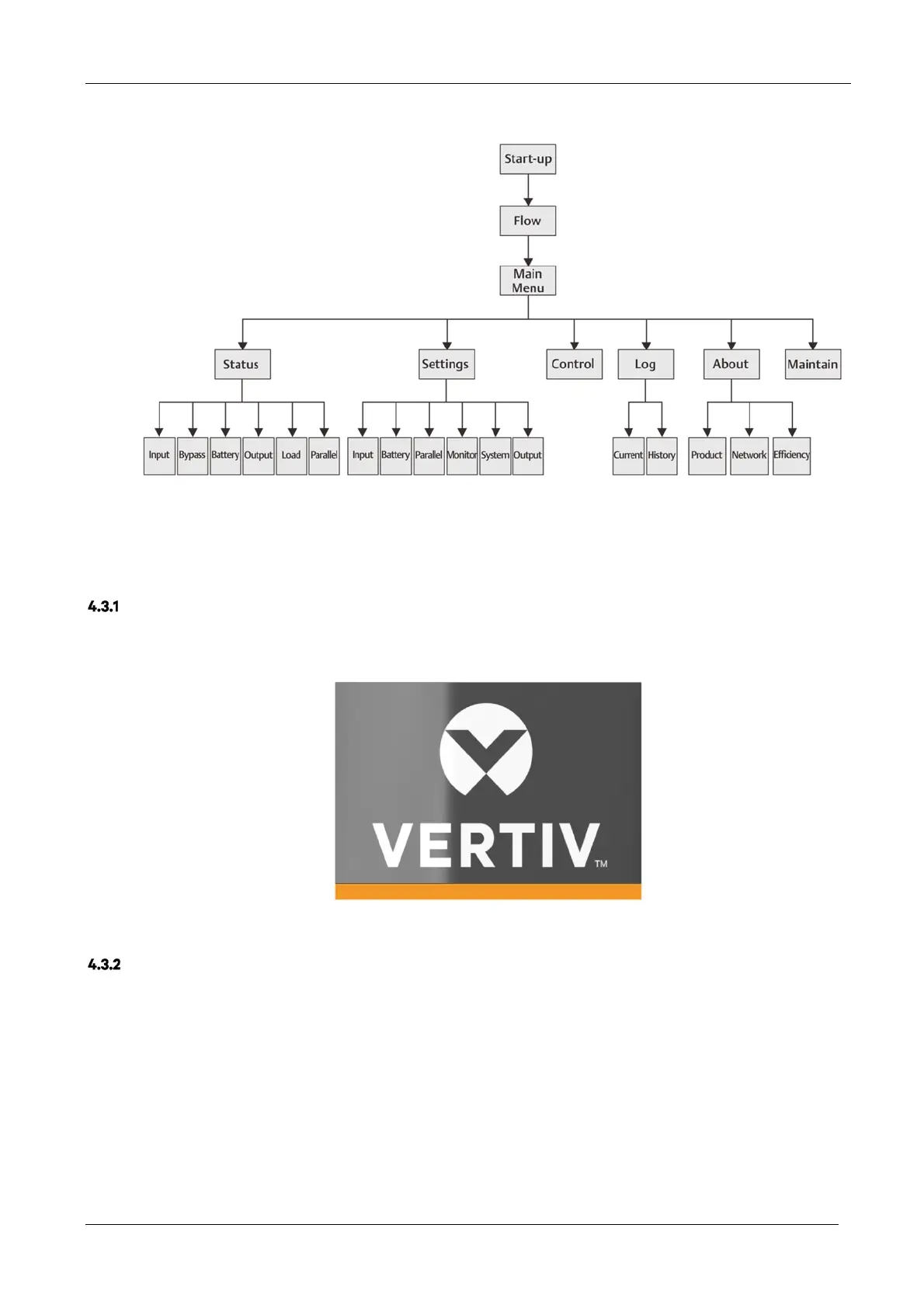

4.2 LCD Menu Structure
Figure 4-10 LCD menu structure
4.3 LCD Screen Types
Start Screen
When the UPS is started up it performs a system self-test, during which the Start Screen is displayed for
approximately 10 seconds, as shown in Figure 4-11.
Figure 4-11 Start screen
Flow Screen
Once the UPS self-test is complete, the flow screen shown in Figure 4-12 will appear.
The flow screen provides a total status overview of the UPS, including the input, bypass, rectifier, battery, inverter
and output, etc. Operating modes are displayed in colour, while invalid are displayed in grey.
