EXS
User Manual 10H52260UM60 - Rev. 1 - 10/2017 19
2.4 Unpacking
Unpack the UPS and battery packages under the supervision of an authorized service engineer.
Proceed as follows:
1. R
emove the cart
on.
R
emove the packing strap and lift the whole carton upwards, as shown in Figure 2-1.

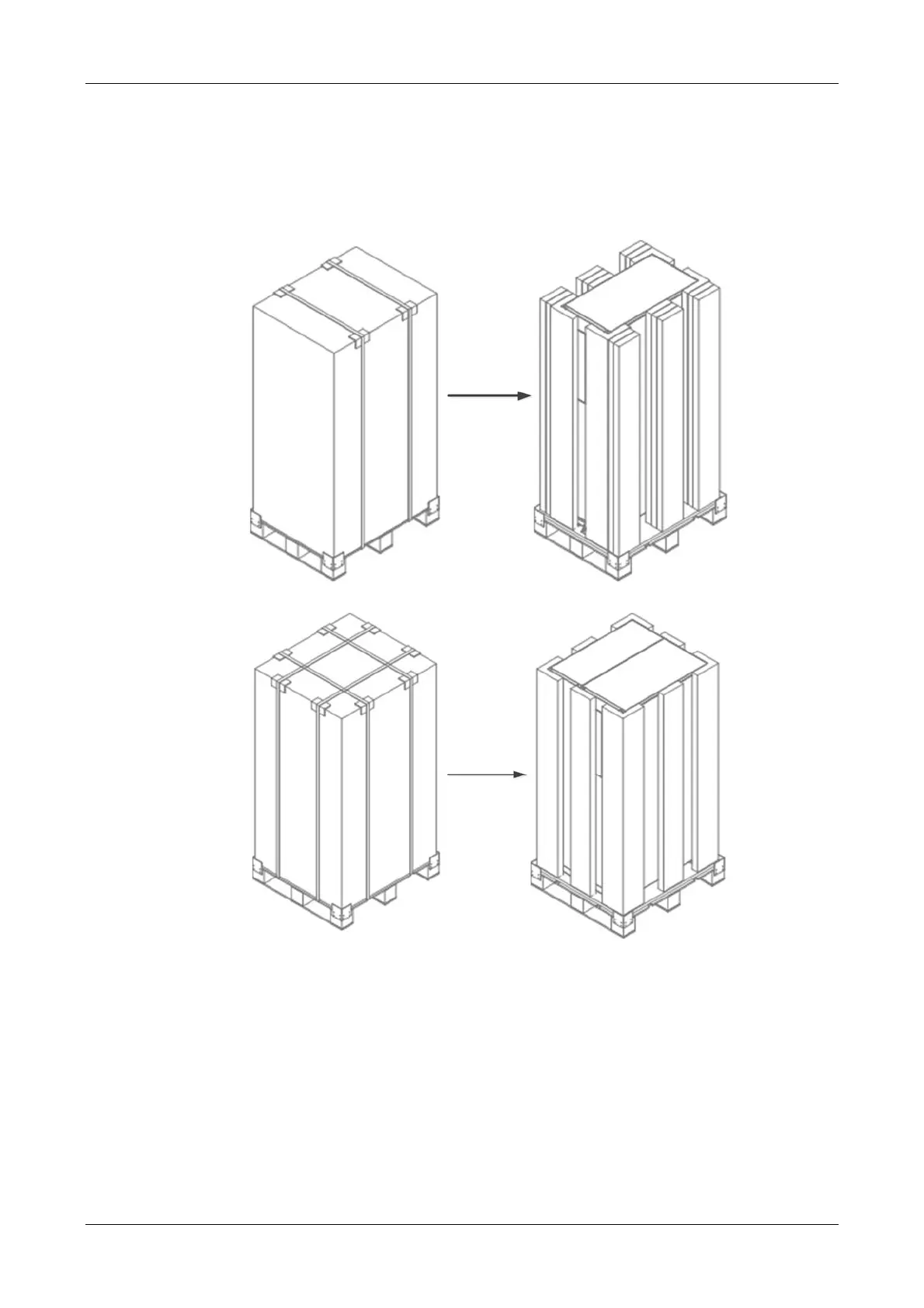

Removing carton from standard UPS
Removing carton from UPS with side cabinet
Figure 2-1 Removing cartons
2. Remove the fixing structural parts from the bottom pallet (see Figure 2-2), do not throw them away. Next, use the
f
orklift (inserting the forks at the points illustrated in Figure 2-2) to move the cabinet close the installation site.
