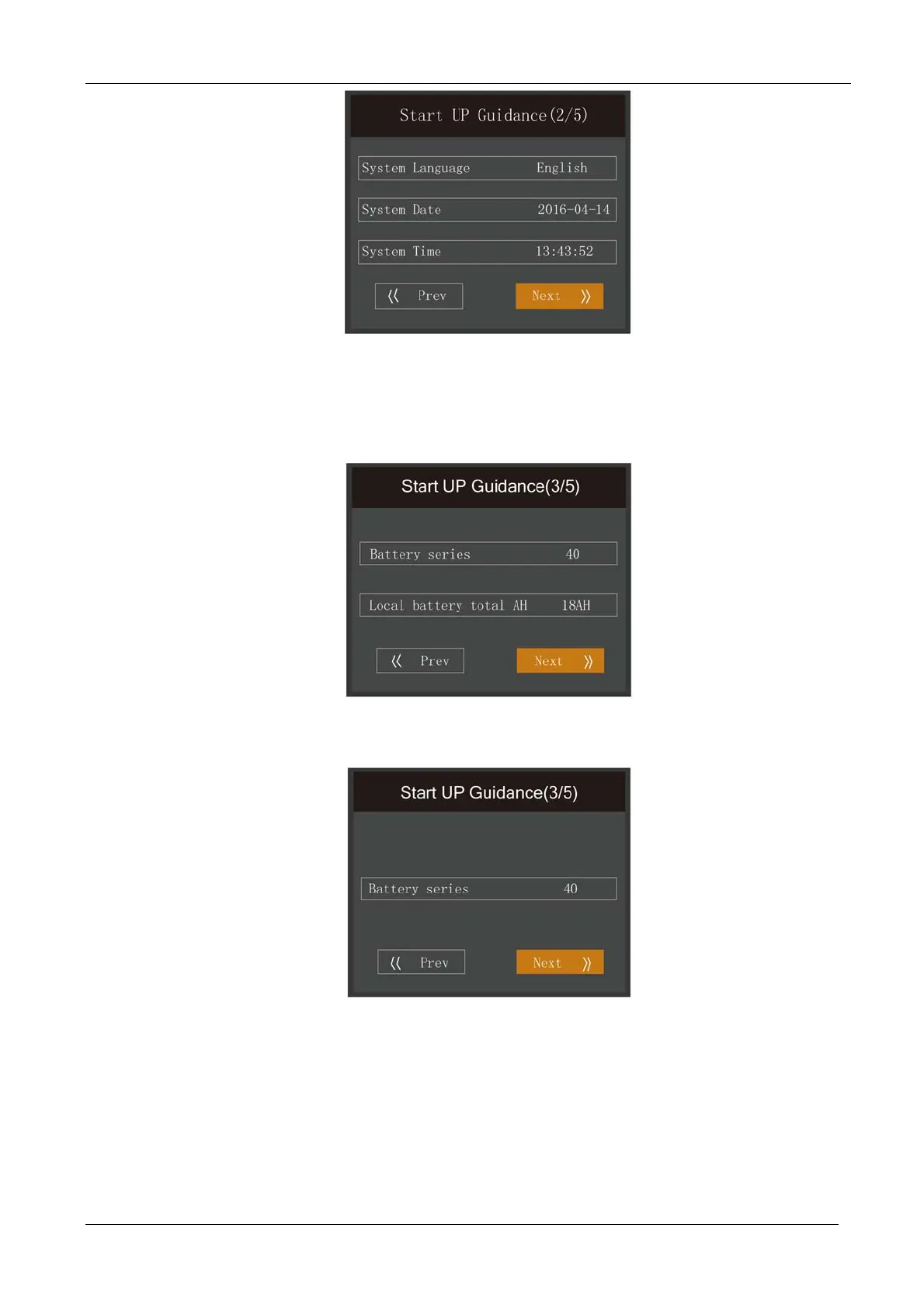

Figure 4-4 Initial Start-up Guide (2)
Battery parameter page
On this page, you can set-up the battery cell number and total Ah.
The available settings are 24, 32 and 40. See the right hand diagram in Figure 4-5.
Figure 4-5 Initial Start-up Guide (3)
If there is an external battery module, the 'Local battery total Ah' will not appear, see Figure 4-6.
Figure 4-6 Initial Start-up Guide (3)
Output page
As shown in Figure 4-7, you can set-up the output voltage, output frequency, and output phase.
The 'Output phase No.' may be set to 'single' or '3 phases'. See the right hand diagram in Figure 4-7.
