REV : 4
REV DATE : 10/18
DPN003215
Page :1 /2
UPFLOW MODELS CW038 - CW084 W/ EC FANS
Form No.: DPN001040_REV4

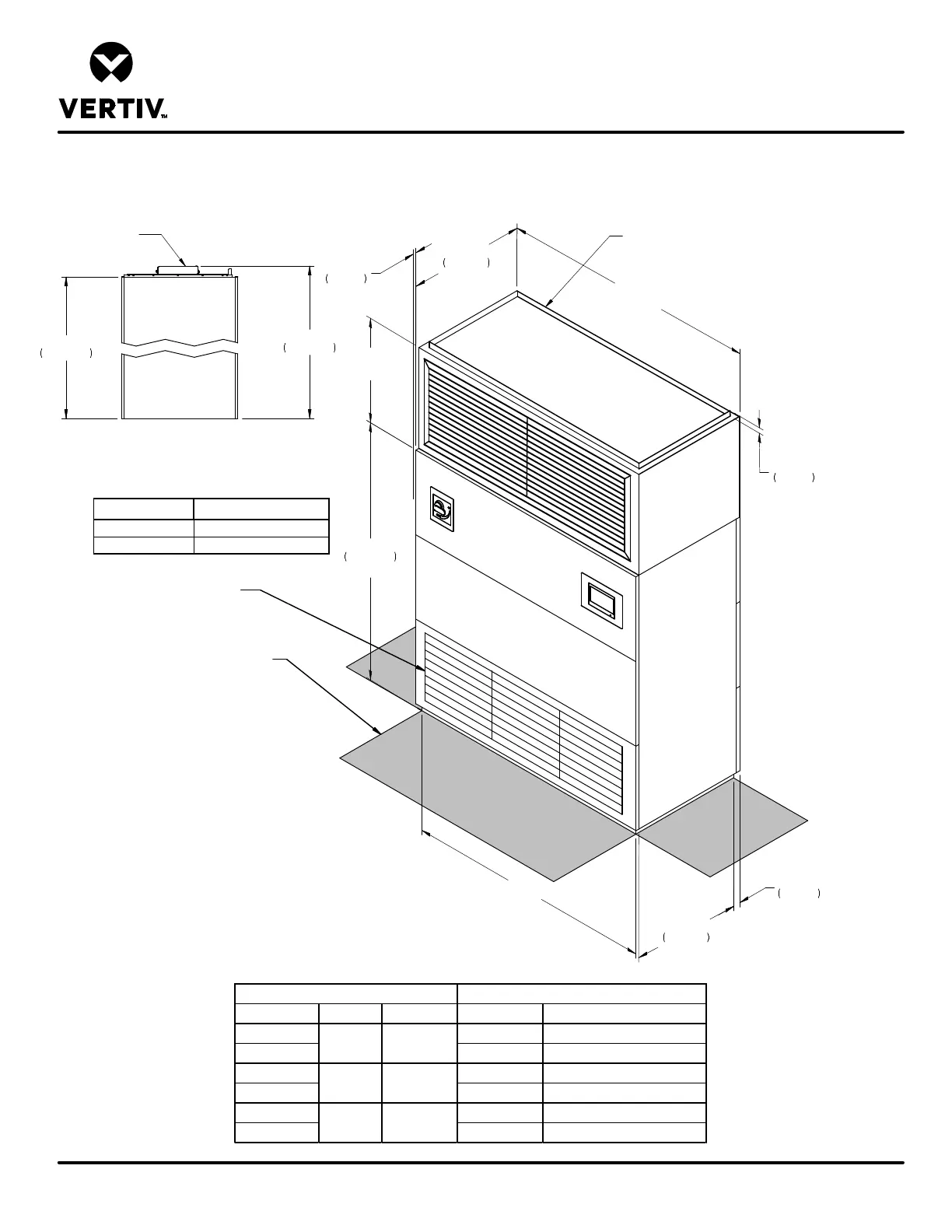

CABINET DIMENSIONAL DATA
LIEBERT CW
C
BASE
1"
25mm
33"
838mm
BASE
PROJECTION OF
DISPLAY BEZEL
B
OVERALL
35"
889mm
OVERALL
72"
1829mm
UNIT
A
PLENUM
NOTE: DUCT FLANGES ON PLENUM
TOP FOR SUPPLY AIR DUCTING WHEN
SOLID PANEL PLENUM IS USED.
1"
25mm
SHADED AREAS
INDICATE A RECOMMENDED
CLEARANCE OF 36" (914mm) BE
PROVIDED FOR COMPONENT
ACCESS AND FILTER REMOVAL. FOR
RECOMMENDED MINIMUM
CLEARANCE REFER TO THE
INSTALLATION MANUAL.
SEE DPN003214 FOR PLENUM
CLEARANCES.
72"
1829mm
75 1/4"
1911mm
EC FAN TERMINAL BOX
3/4"
19mm
LEFT SIDE DETAIL VIEW WITHOUT
PLENUM OR EC FANS
SUPPLY AIR
GRILLE DISCHARGE
TOP DISCHARGE 22.75 (578), 30 (762), 36 (914)
22.75 (578)
DIMENSION A
PLENUM HEIGHT DAT A in (mm)
RETURN AIR GRILLE
SUPPLIED ON
UNITS WITH FRONT RETURN
FRONT AIR RETURN MODEL SHOWN
MODEL B C UNIT ONLY UNIT W/ PLENUM & FANS
CW038 542 (246) 774 (351)
CW041 589 (267) 821 (372)
CW051 755 (342) 1118 (507)
CW060 827 (375) 1190 (540)
CW076 1141 (518) 1566 (710)
CW084 1239 (562) 1664 (755)
UNIT DIMENSIONAL DATA in. (mm)
NET WEIGHT lbs. (kg)
74 (1880)
99 (2515
72 (1829)
97 (2464)
50 (1270) 48 (1219)
