UPFLOW MODELS CW038 - CW084 W/ EC FANS
Form No.: DPN001040_REV4

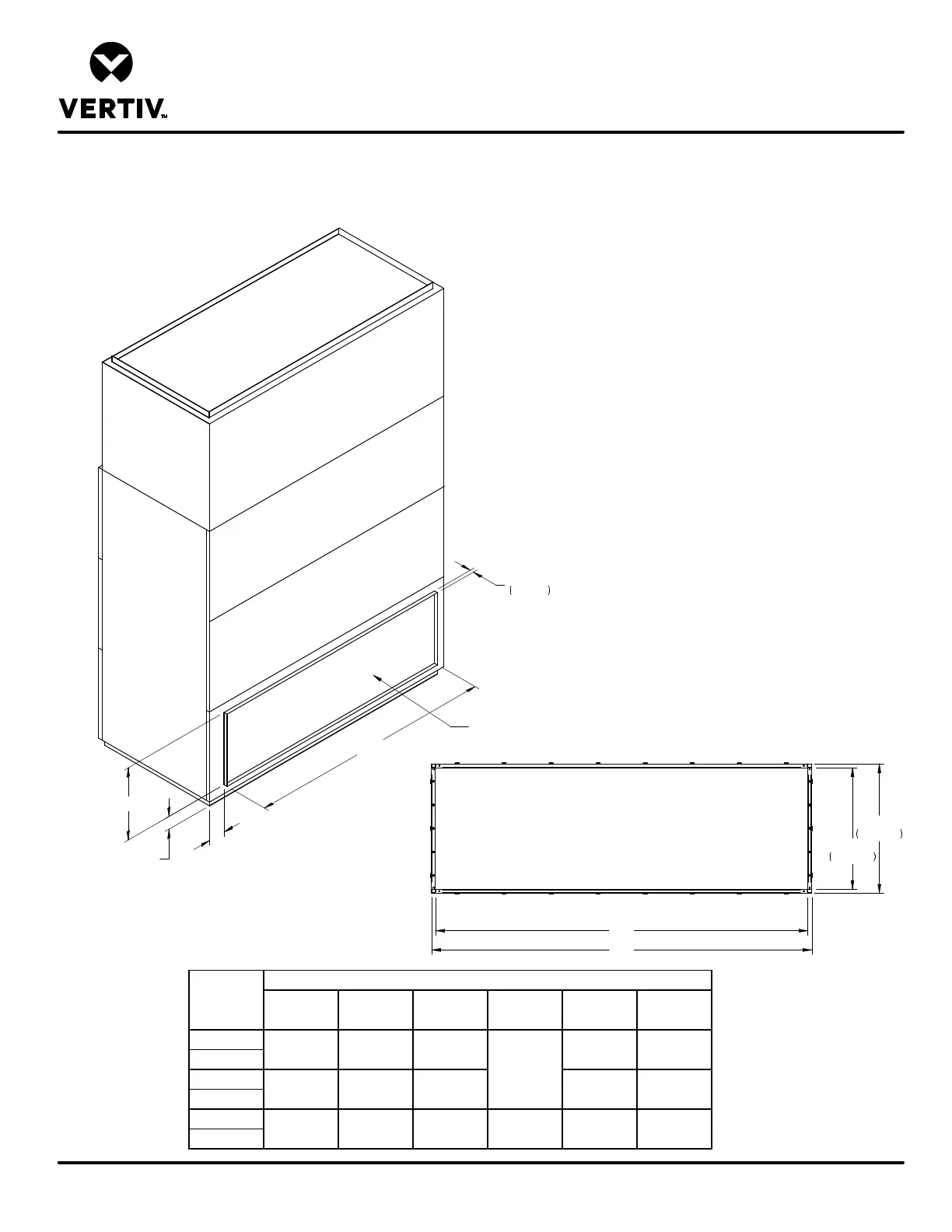

CABINET DIMENSIONAL DATA
LIEBERT CW
1"
25mm
C
B
A
D
REAR AIR RETURN MODEL
RETURN AIR OPENING
BOTTOM VIEW
33"
838mm
31"
787mm
F
E
FRONT OF UNIT BOTTOM AIR RETURN MODEL
CW038
CW041
CW051
CW060
CW076
CW084
CHILLED
WATER
MODEL
A
44 (1118)
68 (1727)
86 (2184)
Dimensional Data in. (mm)
B C D E F
18 (457)
20 (508)
18 (457)
5 (127)
4 (102)
5 (127)
3 (76)
6-1/2 (165) 95 (2413)
70 (1778)
46 (1168)
97 (2464)
72 (1829)
48 (1219)
