UPFLOW MODELS CW106 & CW114 W/ EC FANS
Form No.: DPN001040_REV4

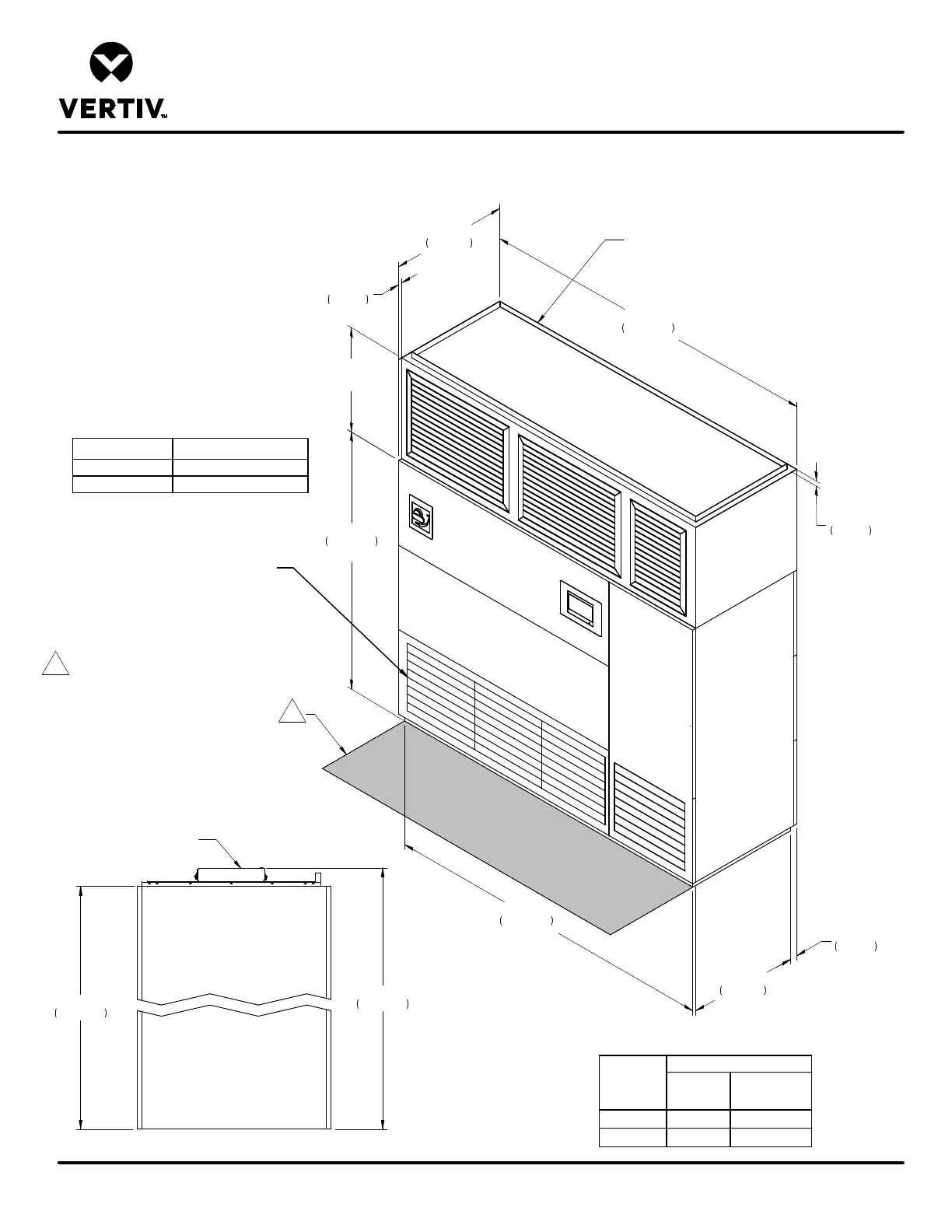

CABINET DIMENSIONAL DATA
LIEBERT CW
RETURN AIR GRILLE
SUPPLIED ON
UNITS WITH FRONT AIR RETURN
120"
3048mm
BASE
7/8"
22mm
Typ.
33"
838mm
BASE
PROJECTION OF
DISPLAY BEZEL
122"
3099mm
OVERALL
76"
1930mm
UNIT
A
PLENUM
NOTE: DUCT FLANGES ON PLENUM
TOP FOR SUPPLY AIR DUCTING WHEN
SOLID PANEL PLENUM IS USED.
1"
25mm
76"
1930mm
79 1/4"
2013mm
EC FAN TERMINAL BOX
LEFT SIDE DETAIL VIEW WITHOUT
PLENUM OR EC FANS
FRONT AIR RETURN MODEL SHOWN
SUPPLY AIR
GRILLE DISCHARGE
TOP DISCHARGE 22.75 (578), 30 (762), 36 (914)
DIMENSION A
PLENUM HEIGHT DATA in (mm)
Note:
1. Shaded areas indicate a recommended
minimum CLEARANCE OF 36" (914mm) for
component access from the bottom of the unit
to the top of the plenum.
1
CW106 1240 (562) 1827 (829)
CW114 1375 (624) 1962 (890)
CHILLED
WATER
MODEL
UNIT ONLY
UNIT W/ PLEN.
& FANS
3/4"
19mm
34 3/4"
883mm
OVERALL
