Vertiv | Liebert® DM | User Manual 33
Mechanical Installation
2.6.7. Pipe Connector Position
Figure 2-18 to Figure 2-22 show the pipe connector cutout locations of the indoor unit for upflow and downflow models
respectively.
No. Description No. Description
1
Liquid pipe (Straight pipe 3/8”-9.52mm
Connector 5/8”-18UNF thread)
3 Condensate water drain pipe (OD 22 mm)
2
Humidifier water supply pipe 1/4” copper nut
1/4”-1/2” Connector thread
4
Discharge pipe (Straight pipe 1/2”-12.7 mm
Connector 3/4”-16UNF thread)

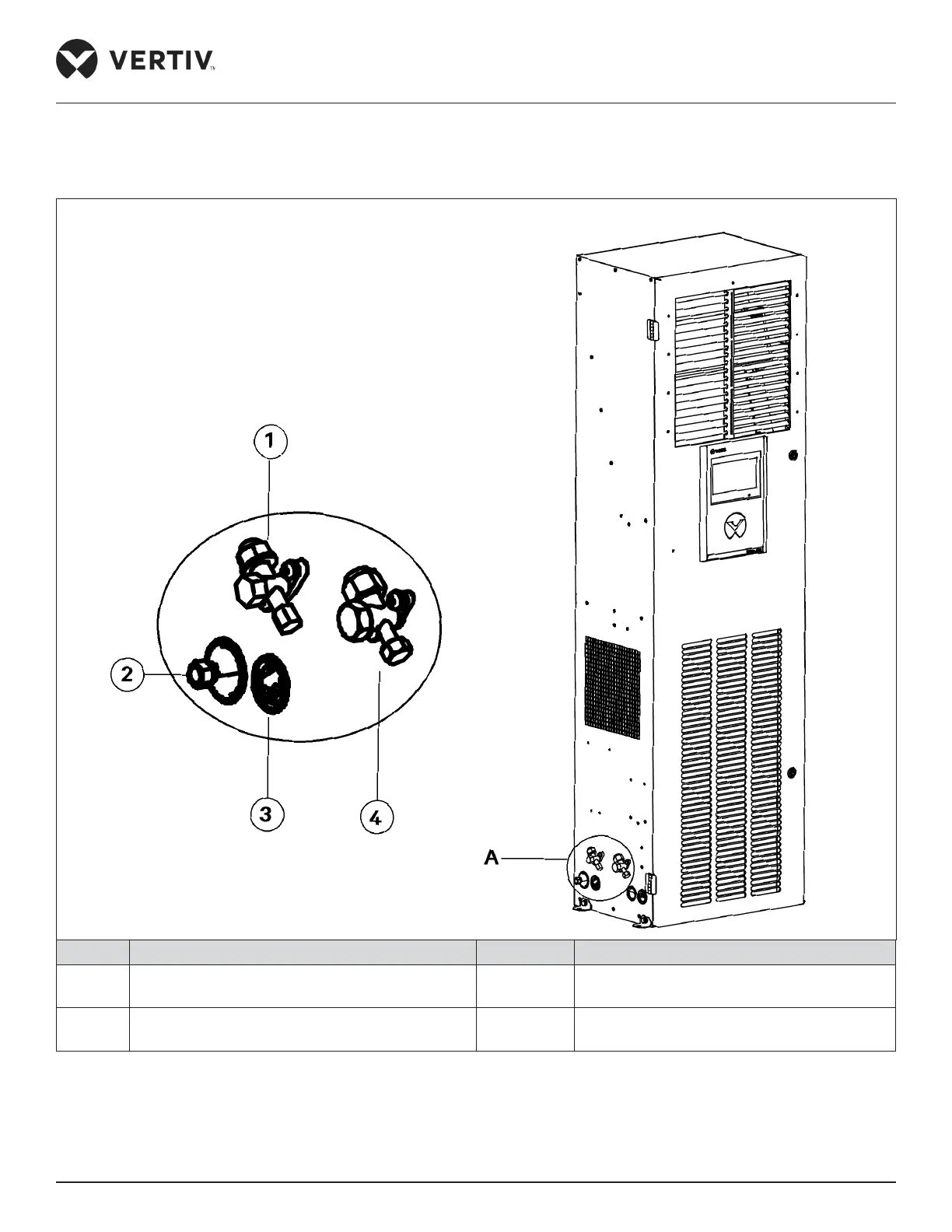

Figure 2-18 Pipeline Connector Interface (DME07)
Amplified View of ‘A’
