Vertiv | Liebert® DM | User Manual 21
Mechanical Installation
2.4.2. Dimension and Weight of the Outdoor Unit
The mechanical parameters of the outdoor unit are shown in Figure 2-7, Figure 2-8, and Table 2-2.
DMC07WA1 DMC12WA1 DMC17WA1

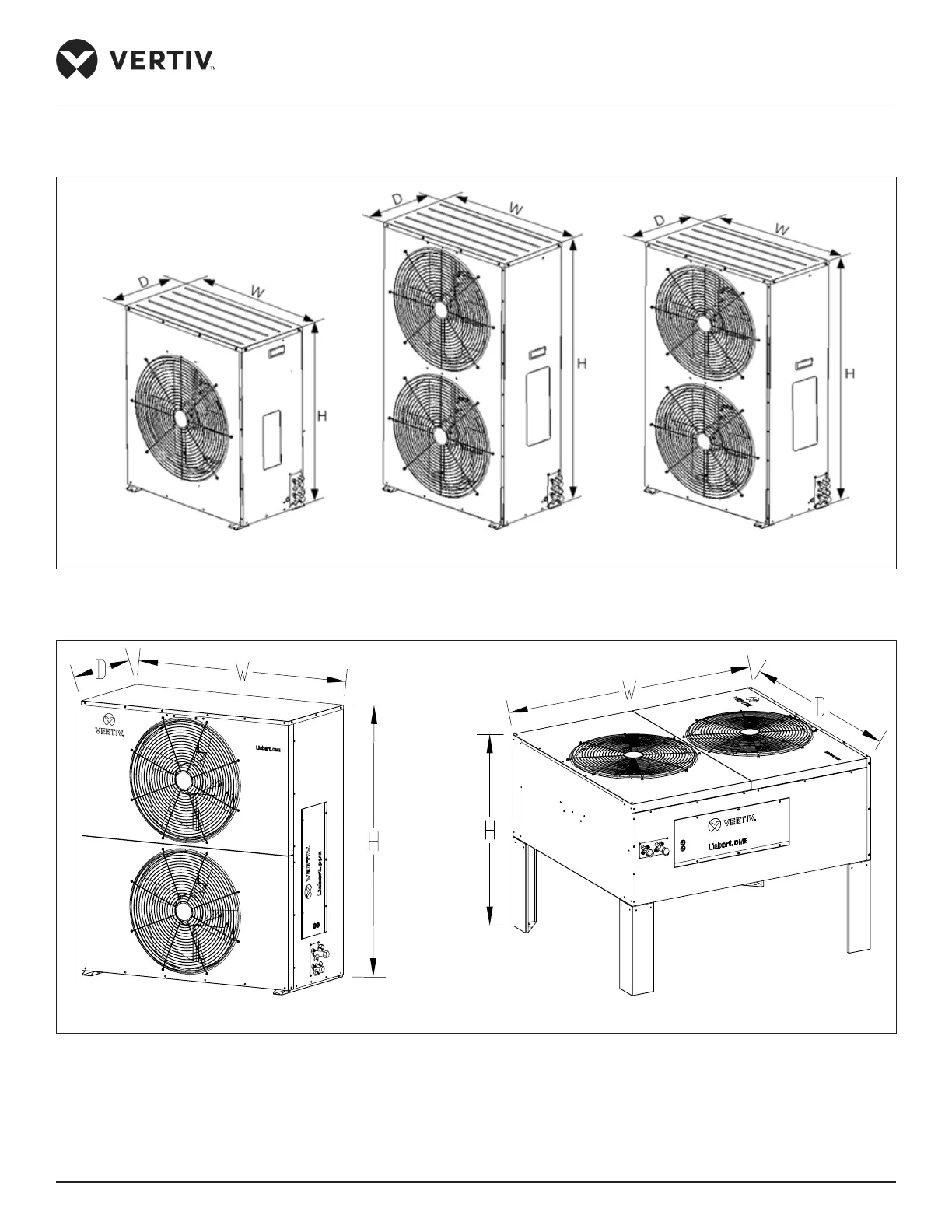

Figure 2-7 Dimension of Standard Outdoor Unit (07 kW, 12 kW and 17 kW)
DMC22MA1/DMC27MA1 Vertical Installation DMC22MA1/DMC27MA1 Horizontal Installation
Figure 2-8 Dimension of Standard Outdoor Unit (22 kW and 27 kW)
