Vertiv | Liebert® DM | User Manual 36
Mechanical Installation
(Amplified View of 'D')
D
No. Description No. Description
1 Humidifier inlet pipe (1/4” BSP, 1/2” BSP Male) 4 Cable hole (ID 29 mm)
2 Condensate drain pipe (OD 22 mm)
5
Liquid line shut o service angle valve (5/8”-
16 mm straight pipe, 7/8”- 14 UNF Connector
thread)
3
Discharge line shut o service angle valve
(3/4”-19 mm straight pipe, 1-1/16”- 14 UNF
Connector thread)

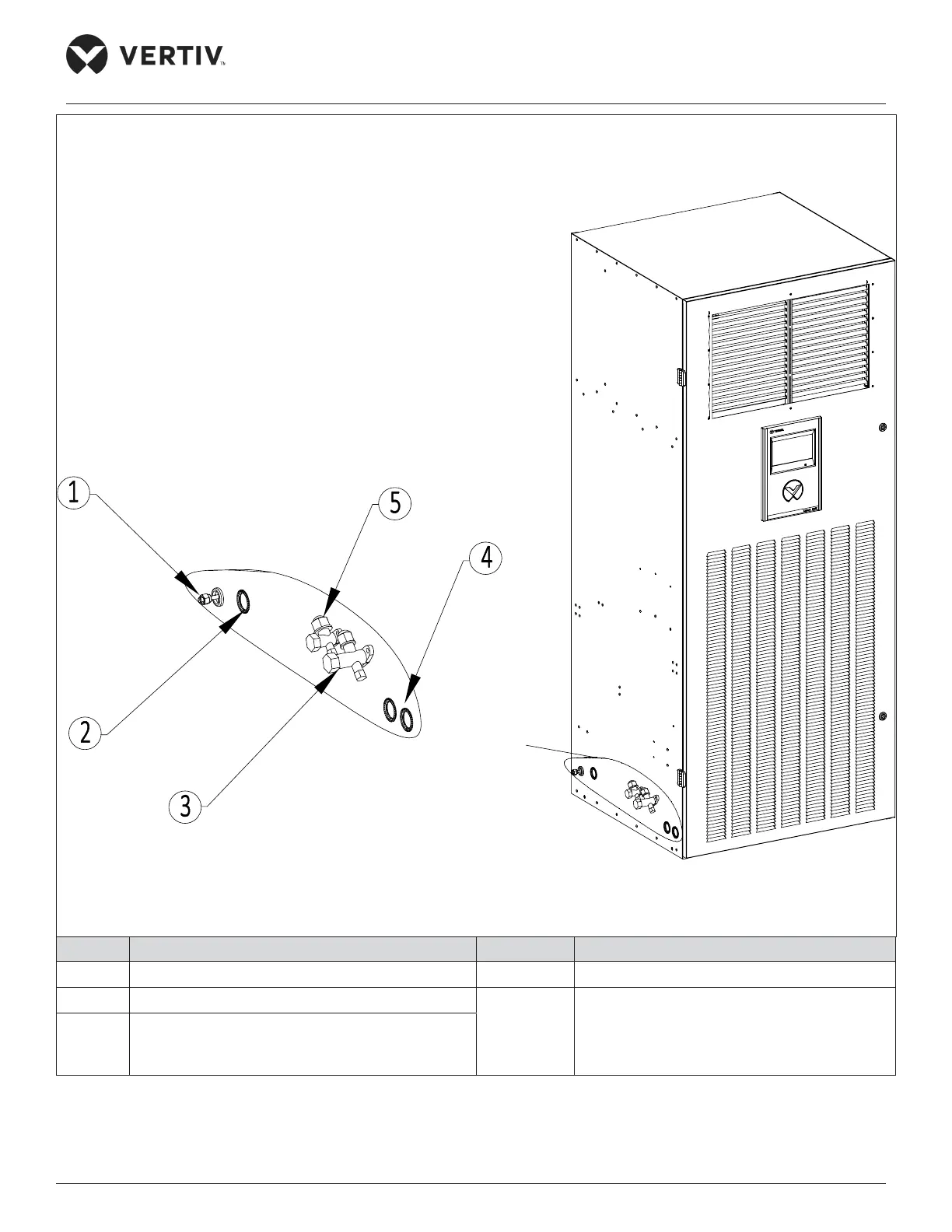

Figure 2-21 Pipeline Connector Interface (DME22 and DME27 Upflow Unit)
