Vertiv™ | Liebert® DM | User Manual 6
Overview

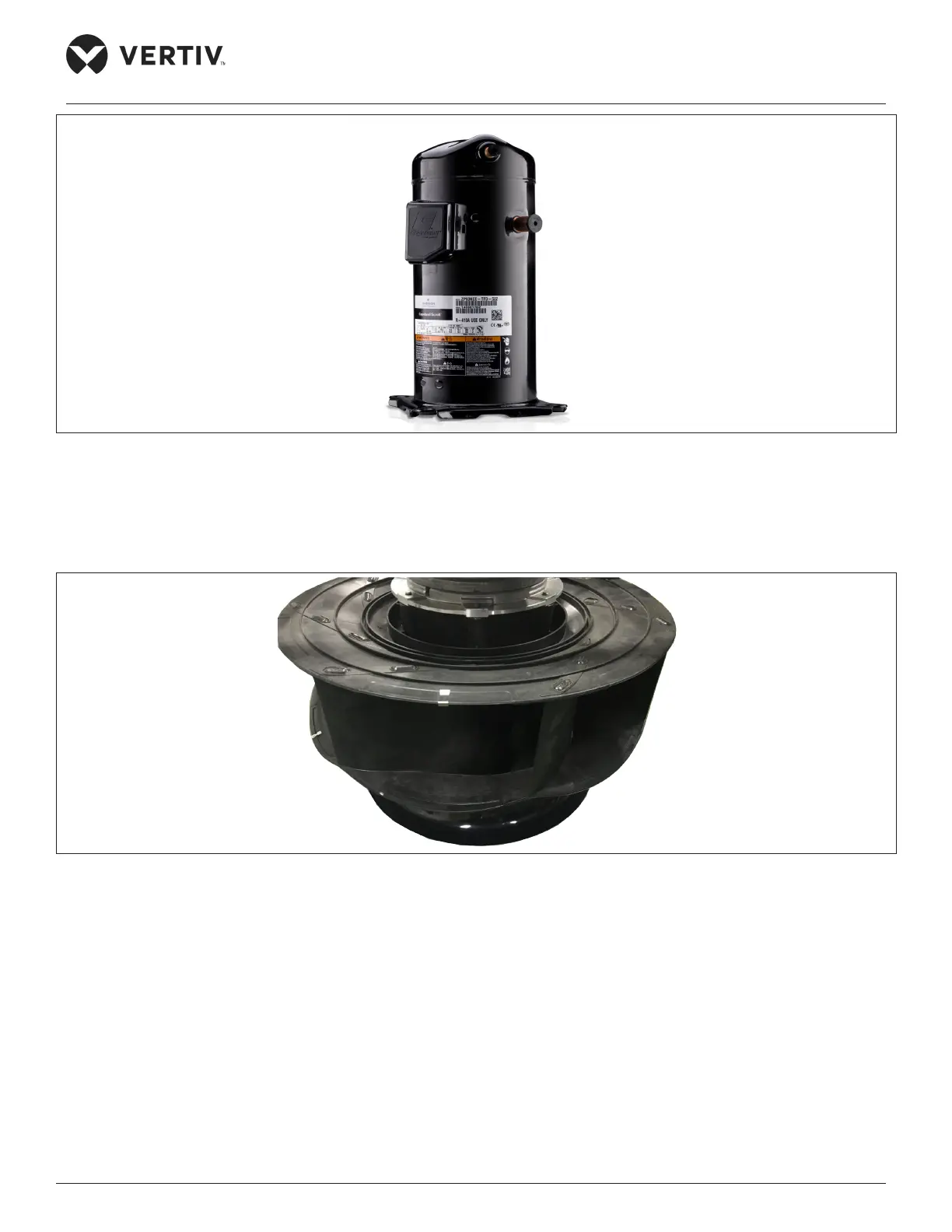

Figure 1-5 Scroll Compressor
• Centrifugal Fan
A highly eicient and reliable centrifugal fan is provided in Vertiv™ Liebert® DM unit, that can handle large airflow. It also has
features such as long throw, direct driven, and easily maintainable.
Figure 1-6 Centrifugal Fan
