Mechanical Installation
2.6.2. Installation Procedure
1. Place the outdoor unit on the base.
2. Fix the outdoor unit onto the base with expansion bolts, refer Figure 2-12 and Figure 2-13 for the vertical and horizontal
installations of the outdoor unit respectively. The hole dimension of the base for vertical and horizontal installations are
given Table 2-4
No. Description
1 Slot hole (4-10x12)

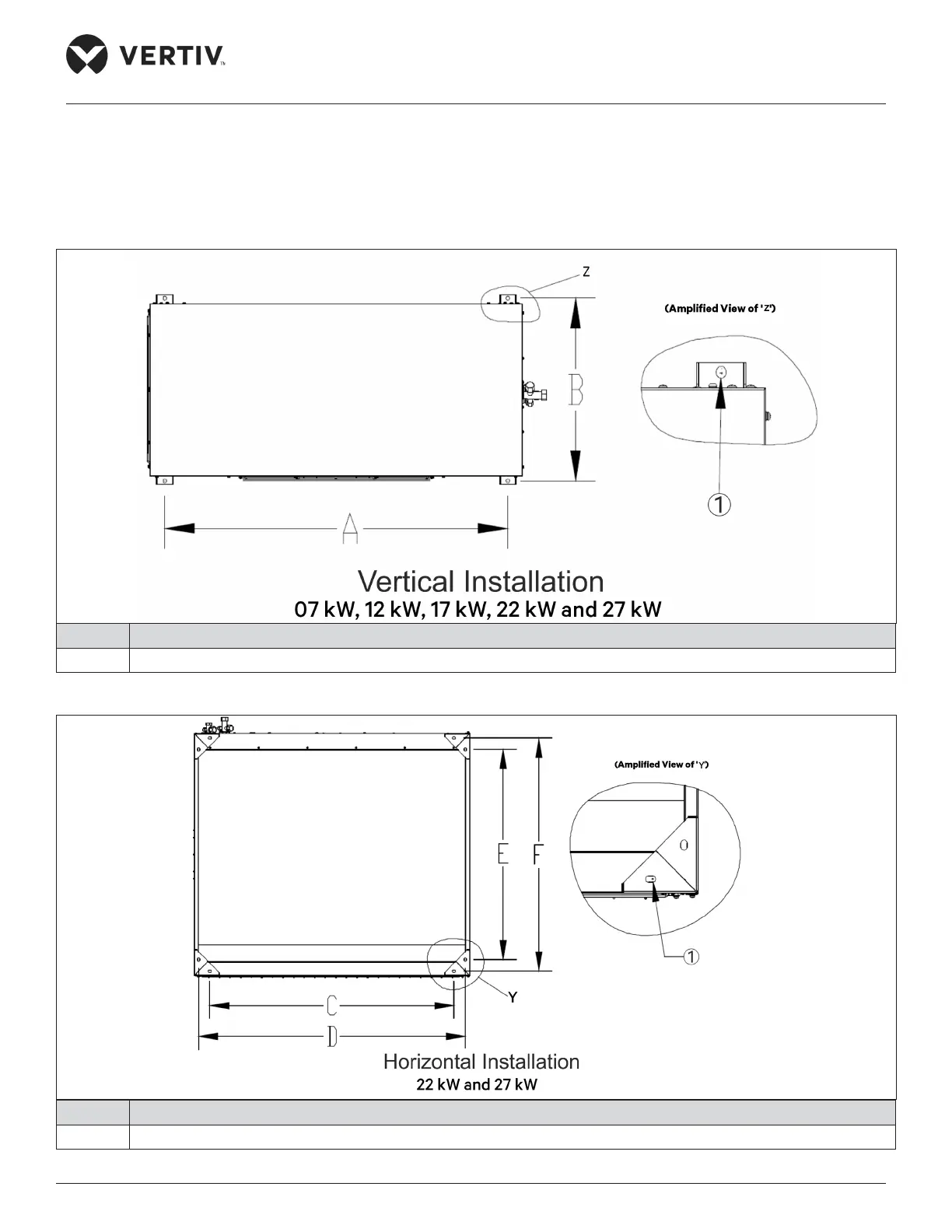

Figure 2-12 Hole Dimension of Outdoor Unit Base (Vertical Installation)
No. Description
1 Slot hole (8-10x16)
Figure 2-13 Hole Dimension of Outdoor Unit Base (Horizontal Installation)
