Mechanical Installation
2.4. Mechanical Installation
2.4.1. Dimension and Weight of the Indoor Unit (Product Dimension)

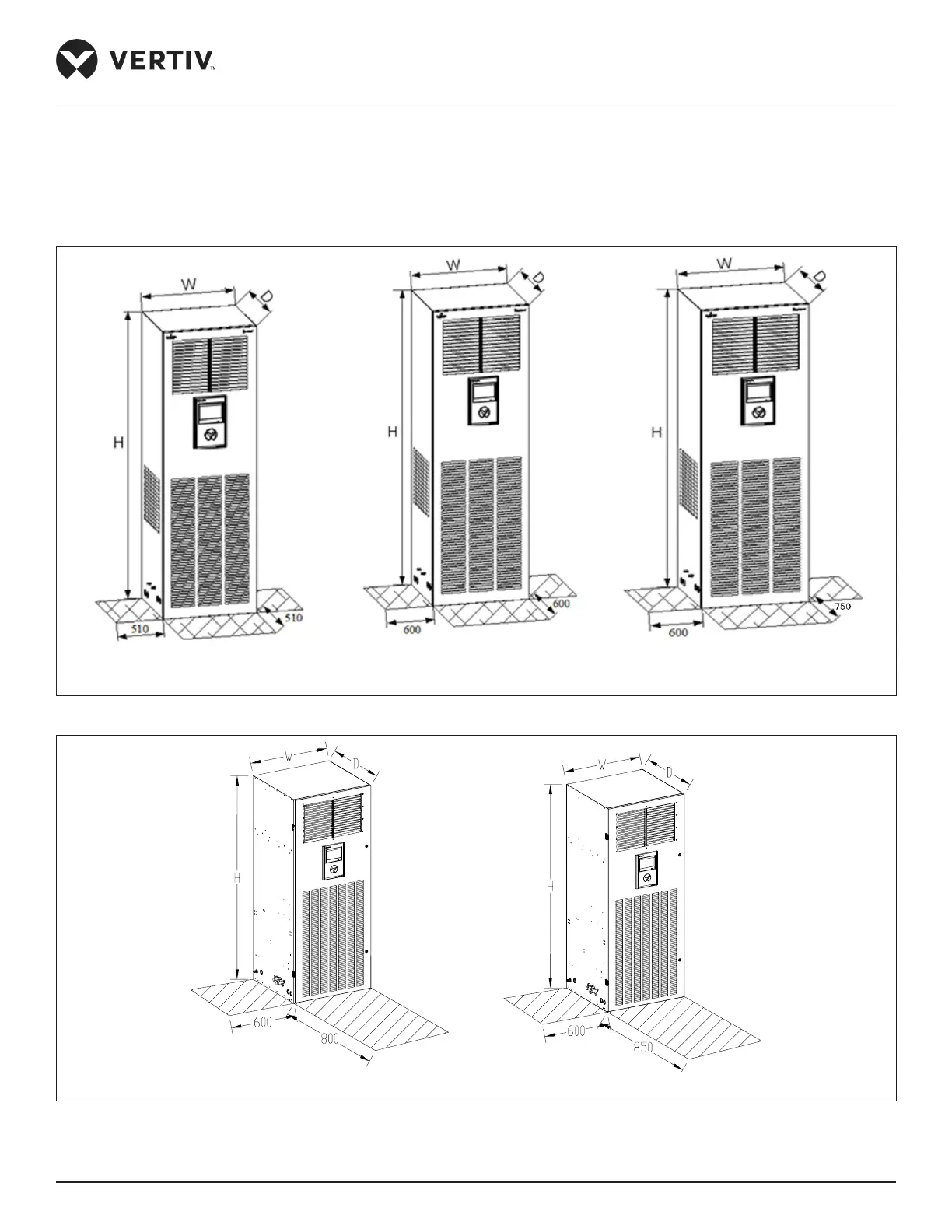

The dimensions and operational weight of the indoor units are represented in Figure 2-4 , Figure 2-5 & Figure 2-6 and
Table 2-1 respectively.
DME07M**UA1 (Upflow Unit) DME12M**UA1 (Upflow Unit) DME17M*0UA1 (Upflow Unit)
Figure 2-4 Vertiv™ Liebert® DM Indoor Unit (07 kW, 12 kW and 17 kW)
DME22M*0UA1 (Upflow Unit) DME27M*1UA1 (Upflow Unit)
Figure 2-5 Vertiv™ Liebert® DM Upflow Indoor Unit (22 kW and 27 kW)
