Mechanical Installation
No. Description No. Description
1
Liquid pipe (Straight pipe 1/2”-12.7 mm
Connector 3/4”-16UNF thread)
3
Humidifier water supply pipe 1/4” copper nut
1/4”-1/2” Connector thread
2 Condensate water drain pipe (OD 22 mm) 4
Discharge pipe (Straight pipe 5/8”-16 mm
Connector 7/8”-14UNF thread)

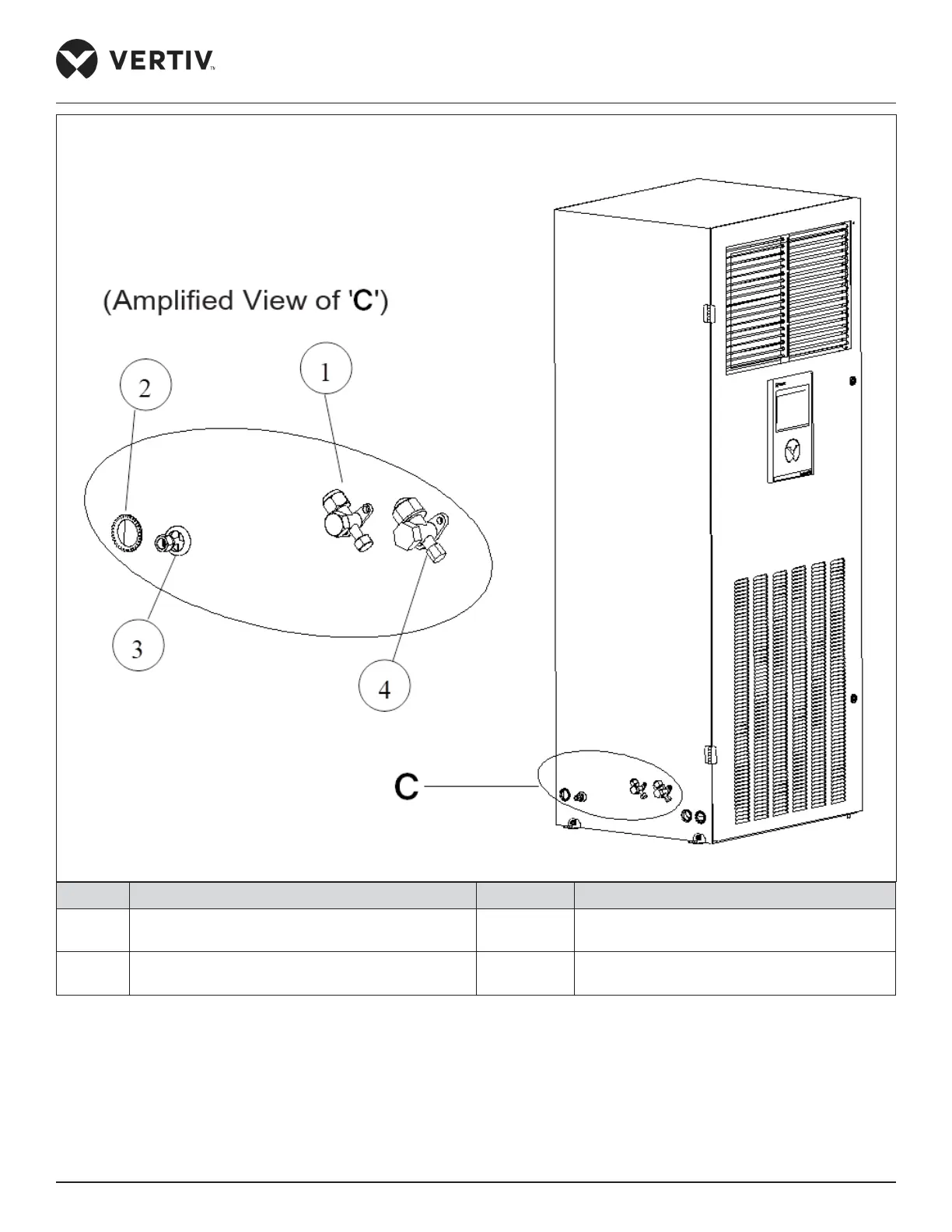

Figure 2-20 Pipeline Connector Interface (DME17)
