Installation26
Table 2-2 Branch circuit breaker ratings
UNIT RATING MAXIMUM BREAKER RATING
5-kVA, 6-kVA 60 A
8-kVA, 10-kVA 70 A
16-kVA, 20-kVA
1-phase: 160 A
3-phase: 50 A

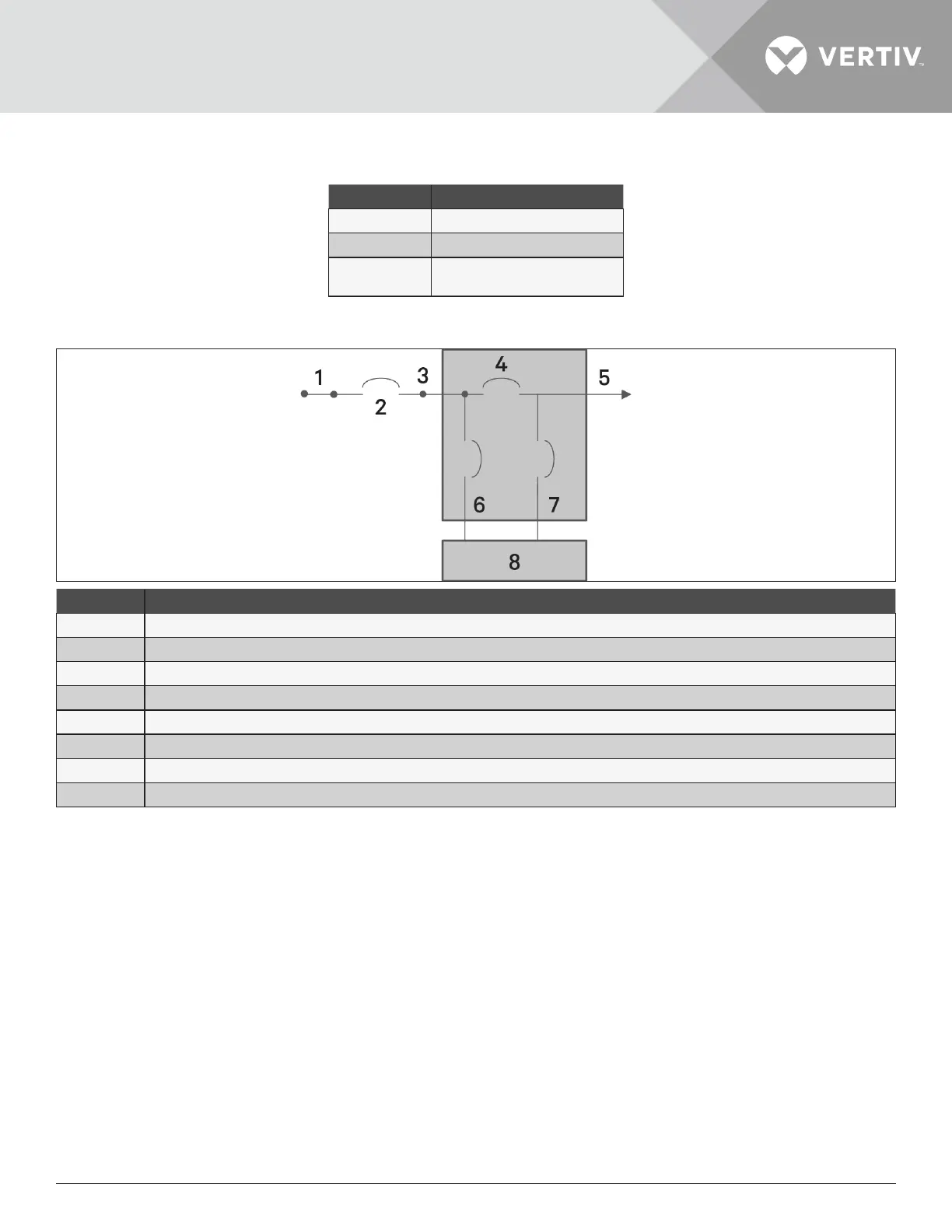

Figure 2-4 Circuit-breakers diagram
ITEM DESCRIPTION
1 Mains/Utility
2 External branch CB
3 Input
4 MB CB
5 Output
6 Input CB
7 Output CB
8 UPS-PFC, battery inverter
2.6.2. Terminal-block Connections
On 5-kVA to 10-kVA models, the hard-wire connections to the terminal blocks are made through knockouts on
the POD attached to the rear of the unit. On 16-kVA to 20-kVA models, the knockouts are on the rear of the unit.
See Removable Power-distribution Boxes on page 10, for the location of the input/output knockouts on your
GXT5 model.
Table 2-3 on the next page, details the electrical-connection specications.
