Vertiv LIEBERT GXT5 Series User Manual

Vertiv | Liebert® GXT5™ | Installer/User Guide 33

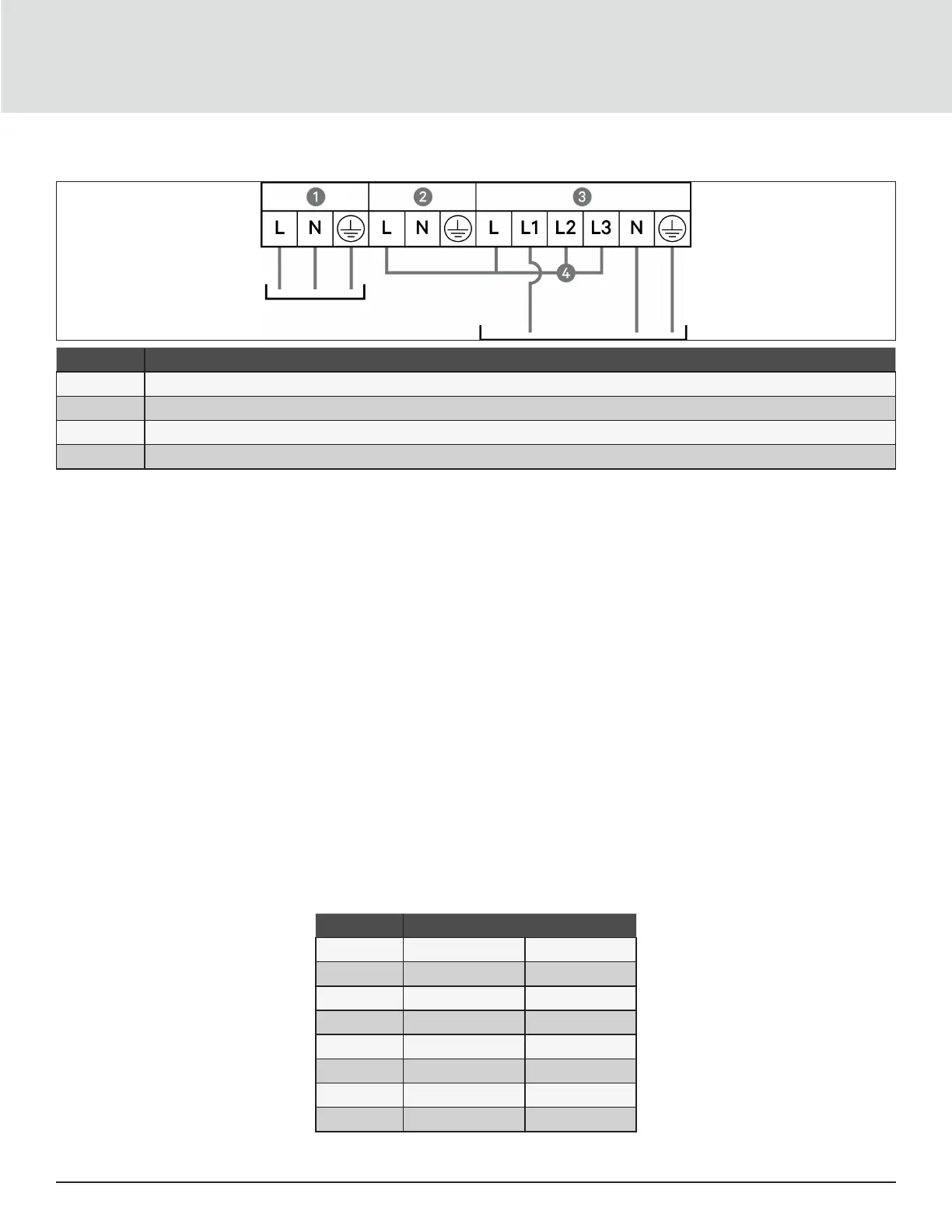

Figure 2-11 Cable/Plug for Connecting REPO switch to UPS REPO port
ITEM DESCRIPTION
1 Terminal 1
2 Terminal 2
3 Plug (connects to REPO port on UPS)
4 REPO switch
2.7.4. Connecting a USB Cable
The UPS includes a USB connector. See the appropriate gure for your model in Rear Panels on page 5, for
the location of the port.
The standard, B-type USB port connects the UPS to a network server or other computer system.
The USB port supports HID/CDC protocol. The CDC protocol is reserved for service software. To use the HID
protocol for monitoring, get the HID protocol from www.vertiv.com.
2.7.5. Connecting CLI Communication Cables
The UPS supports the Vertiv command-line interface for operation with ACS and other third-party monitoring
protocols. The RJ-45 port is used for CLI connection. See the appropriate gure for your model in Rear Panels
on page 5, for the location of the port. The pin-out, described in Table 2-5 below, is consistent with the ACS
pin-out.
Table 2-5 RJ-45 Port Pin-out
PIN SIGNAL DIRECTION
1 NC —
2 NC —
3 TXD O
4 GND —
5 NC —
6 RXD |
7 NC —
8 NC —

Vertiv LIEBERT GXT5 Series Specifications

General

Model	LIEBERT GXT5 Series
Product Type	UPS
Topology	Double Conversion Online
Display	LCD
Form Factor	Tower, Rackmount
Output Voltage	200/208/220/230/240 VAC
Output Frequency	50/60Hz ±0.1Hz (battery mode)
Typical Backup Time	Varies by model and load
Communication Ports	USB, RS-232
Operating Temperature	0°C to 40°C (32°F to 104°F)
Relative Humidity	0% to 95% (non-condensing)
Dimensions	Varies by model
Weight	Varies by model
Certifications	UL, cUL, CE, RoHS
Battery Type	Valve Regulated Lead Acid (VRLA)
