NOTE: The load is unprotected from disturbances in the power supply while the UPS is on bypass.
3. Turn the maintenance-bypass breaker On.
4. Wait 1 minute if the UPS is working on battery mode, then conrm that the UPS is turned-o.
5. Turn the output and input breakers O. On 8-kVA and 10-kVA models, also turn o the bypass breaker.
6. Loosen other captive screws until the power-distribution box releases.
7. Remove the power distribution box from the UPS and set it aside.
8. On the rear of the panel, loosen the screws of the protective cover for the connectors, slide it over the
connectors, and tighten the screws.
NOTE: The captive screws and maintenance-bypass breaker cover is similar for all 5- to 10-kVA models. Figure
5-2 below, shows an example on the 5-kVA/6-kVA model.

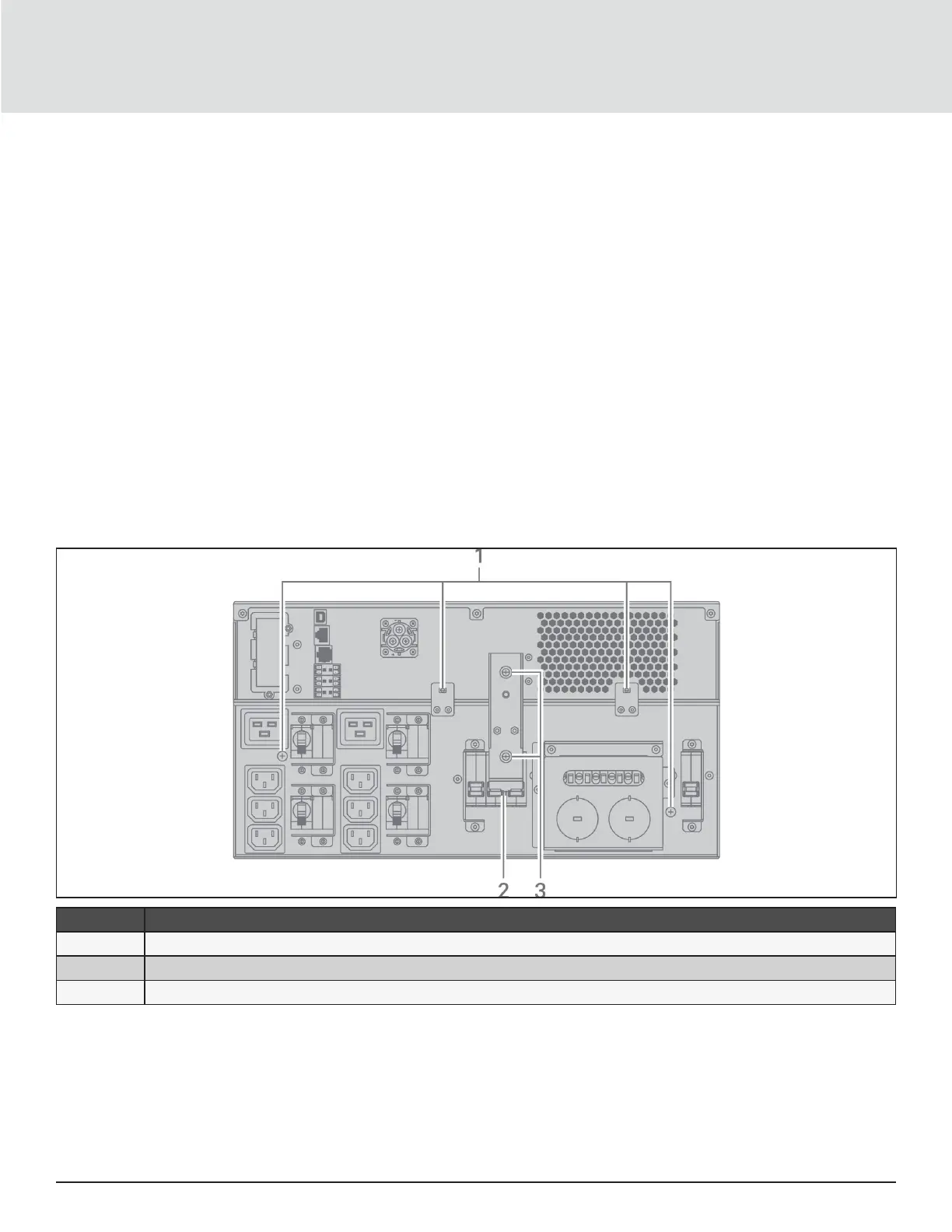

Figure 5-2 Maintenance-bypass Breaker Cover and Captive Screws
ITEM DESCRIPTION
1 Captive screws for POD
2 Maintenance-bypass breaker
3 Connector-cover screws

Vertiv LIEBERT GXT5 Series Specifications

General

Model	LIEBERT GXT5 Series
Product Type	UPS
Topology	Double Conversion Online
Display	LCD
Form Factor	Tower, Rackmount
Output Voltage	200/208/220/230/240 VAC
Output Frequency	50/60Hz ±0.1Hz (battery mode)
Typical Backup Time	Varies by model and load
Communication Ports	USB, RS-232
Operating Temperature	0°C to 40°C (32°F to 104°F)
Relative Humidity	0% to 95% (non-condensing)
Dimensions	Varies by model
Weight	Varies by model
Certifications	UL, cUL, CE, RoHS
Battery Type	Valve Regulated Lead Acid (VRLA)
