Installation drawings
C --- 5
Liebert HPM --- A/W/F/D/H
English

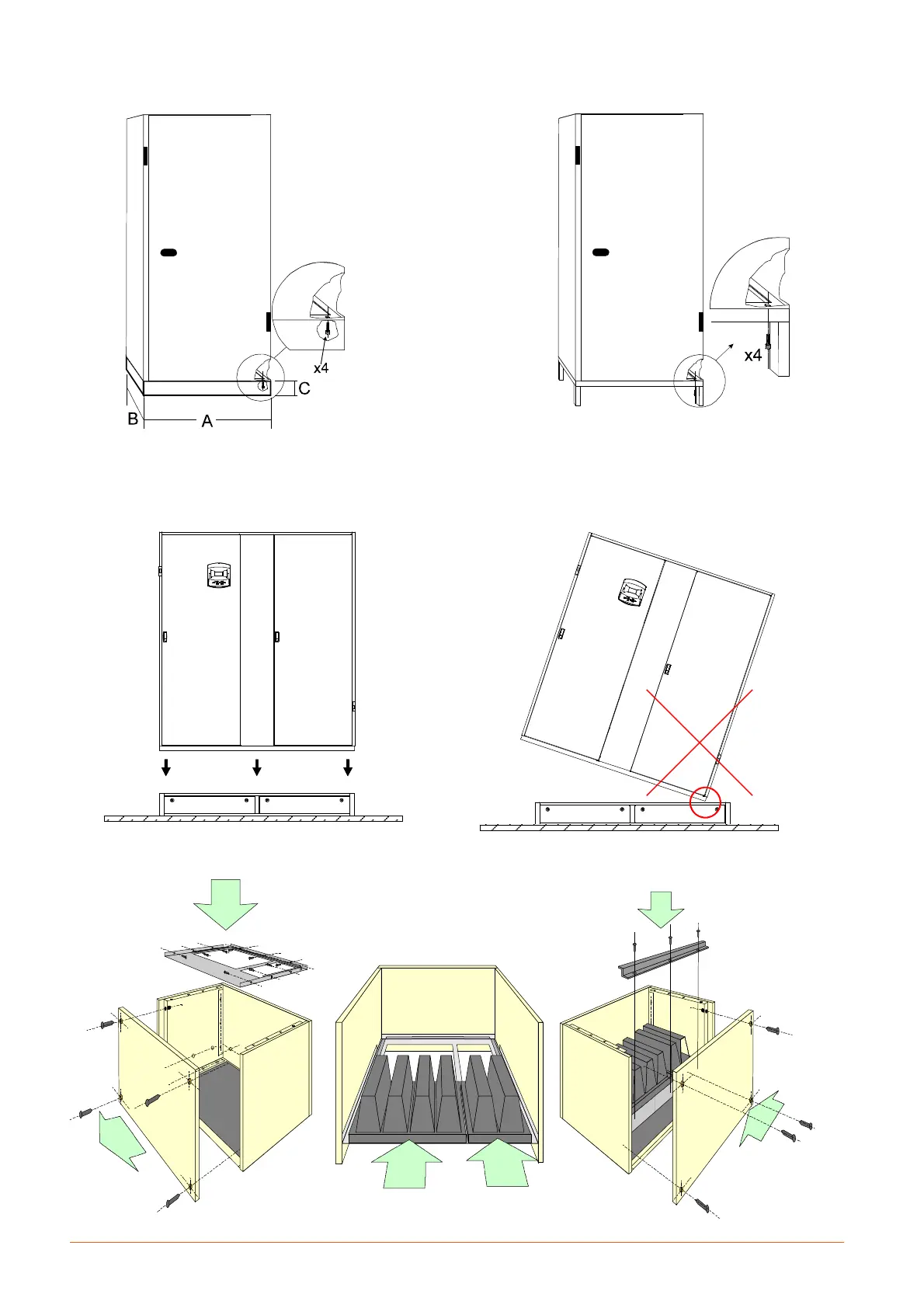

F i g . 9 --- B a s e m o d u l e F i g . 1 0 --- B a s e f r a m e
Fig. 11 --- Correct method to install the base module
The air conditioner must be placed vertically on the base module, maintaining a parallel position, avoiding having the load concentration
on one small area (see figure below).
YES
NO
Fig. 12 --- High efficiency filters
