57

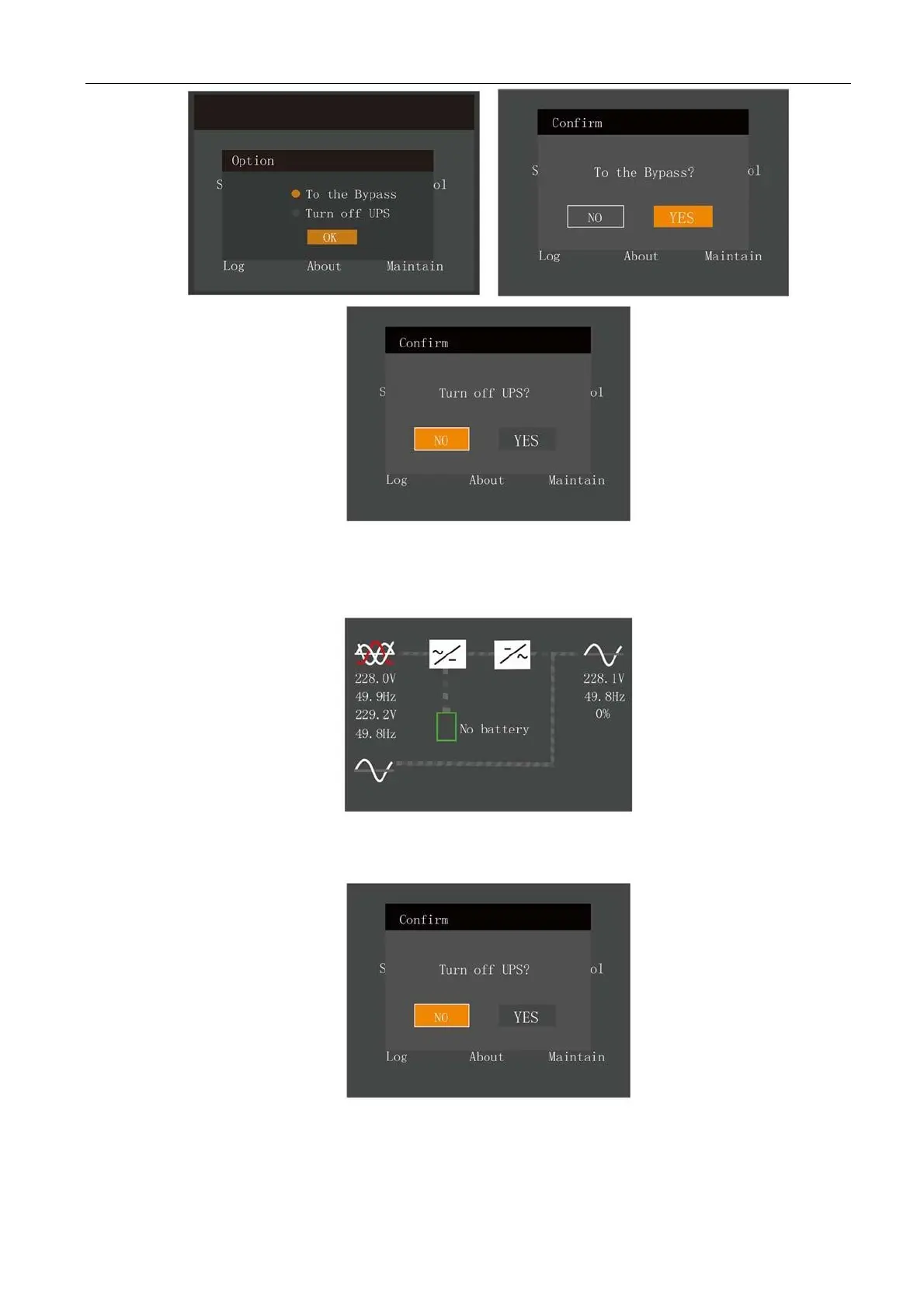

Figure 5-10 ECO mode not enabled
Select 'Turn on UPS' and click
OK
to transfer to Inverter mode, see Figure 5-11.
Select 'Turn off UPS' and click
OK
to shut down the UPS output.
Figure 5-11 Bypass to inverter mode
If ECO mode is enabled, the interface shown in Figure 5-12 will appear. Select 'YES' to shut down the UPS output.
Figure 5-12 ECO enabled interface
