14 402102.01
Service manual VF4 VF5

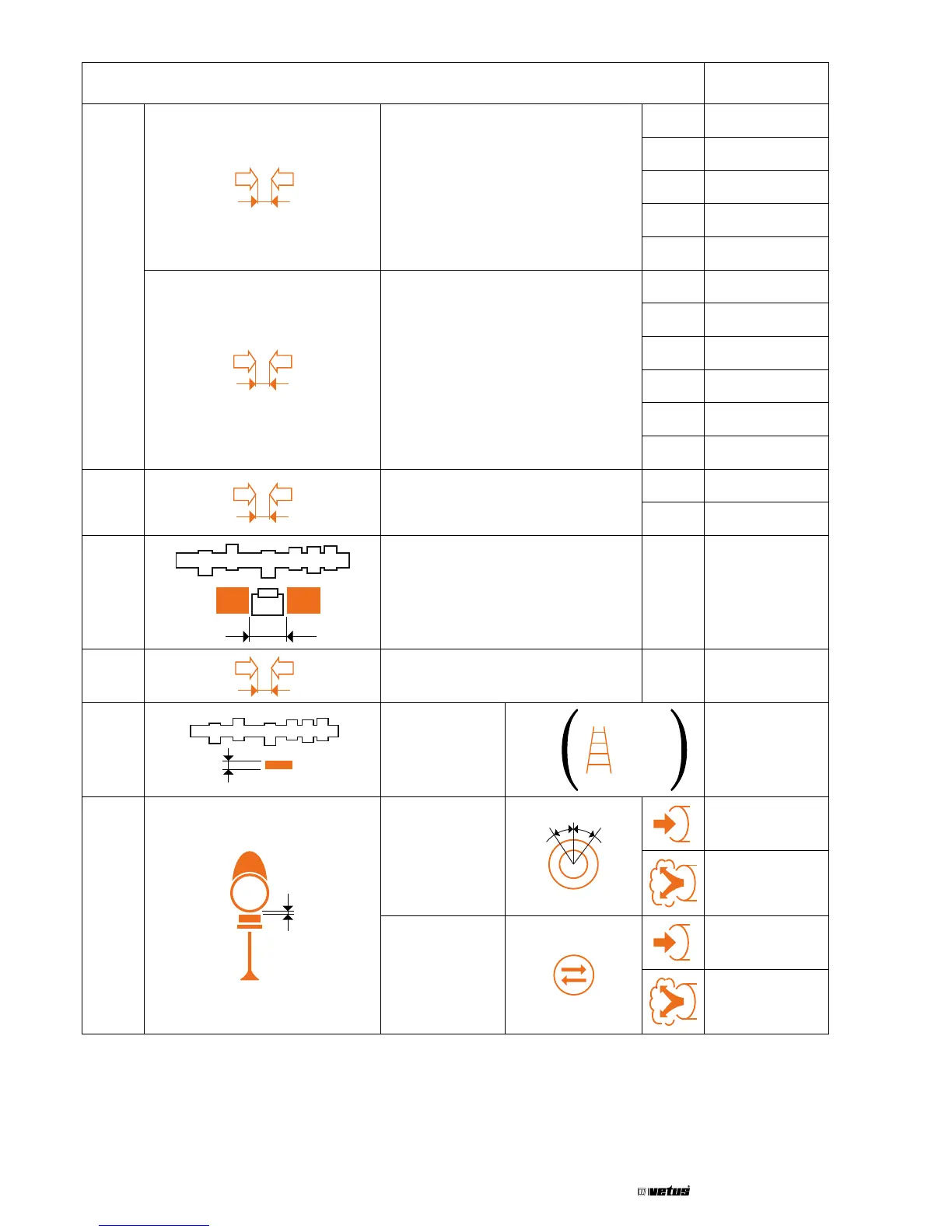

Cylinder head and valve gear Values [mm]
17 - 12
Journal camshaft - Seat in cylinder
head
VF4
I 43.600 ÷ 43.615
II 43.400 ÷ 43.415
III 43.200 ÷ 43.215
IV 43.000 ÷ 43.015
V 30.000 ÷ 30.015
Journal camshaft - Seat in cylinder
head
VF5
I 43.800 ÷ 43.815
II 43.600 ÷ 43.615
III 43.400 ÷ 43.415
IV 43.200 ÷ 43.215
V 43.000 ÷ 43.015
VI 30.000 ÷ 30.015
17-12
Journal camshaft - Cylinder head
support
radial 0.030 ÷ 0.070
axial 0.100 ÷ 0.230
19
∅
Tappet Ø 36.975 ÷ 36.991
19 - 12
Tappet - Cylinder head 0.019 ÷ 0.065
20
s
Shim
0.05
S
3.25 ÷ 4.90
17 - 20
For timing check
0.50
0.50
Normal cold
0.30 ± 0.05
0.35 ± 0.05
