Connecting rod small end bush (one) replace4.5

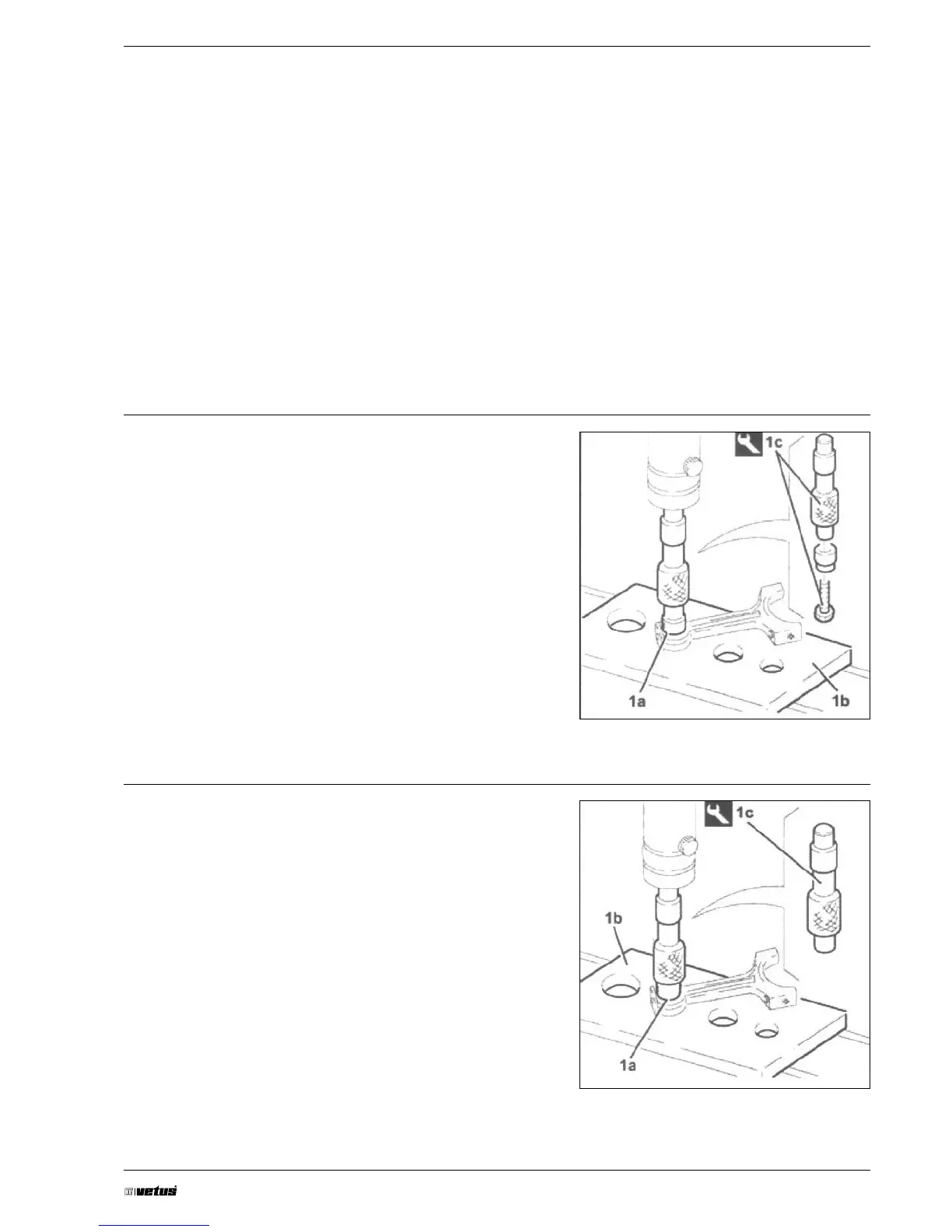

Remove the bush (1 a) from the small end using a hydraulic press,
a suitable plate (1b) and the tool (1c extractor/tting tool) con-
structed as illustrated in the diagram.
Fit a new bush (1 a) in the small end using a hydraulic press, a suit-
able plate (1b) and the tool (1c extractor/tting tool) constructed
as illustrated in the diagram.
The bush should be tted in the small end so that the lubrica-
tion port is aligned with the one in the small end.
