Vetus VF4 - Lubrication

16 402102.01
Service manual VF4 VF5
Lubrication3.5

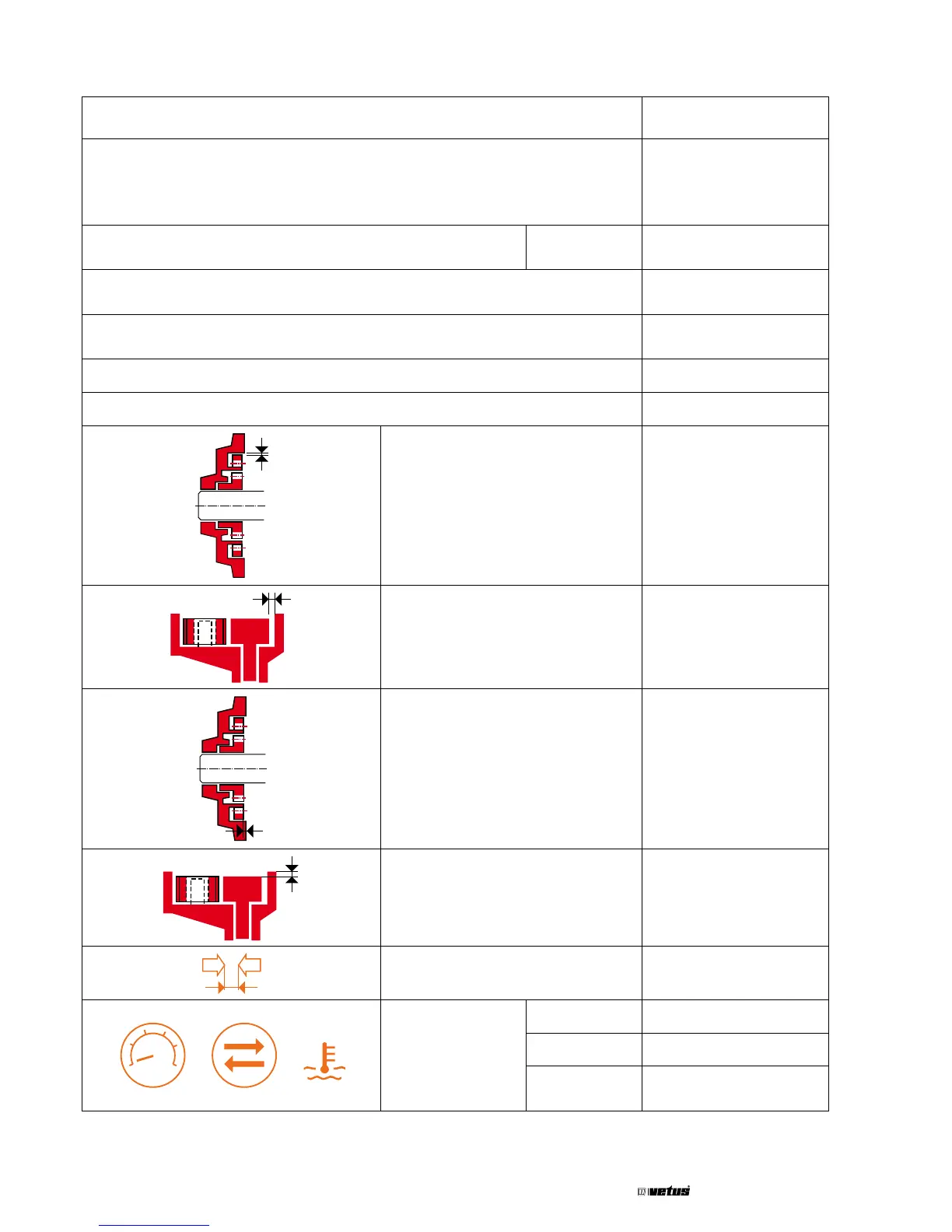

Lubrication Values [mm]
Lubrication circuit engine
with forced circulation, by
means of pump to gears
with cartridge lter in
series.
Oil pump: type
With gears, located the
front cover crankshaft
Driving pump
With a chain command
from the crankshaft
Oil pressure regulation valve
Incorporated in the crank-
shaft front cover
Oil lter full ow With cartridges
Insucient oil pressure sender Electrical
Between the body pump and the
gear
-
Between the gears periphery and
the body pump
0.110 ÷ 0.180
Between the superior side of the
gears and the pump cover
-
Between the superior side of the
gears and the cover pump
0.016 ÷ 0.086
Between the gear and the conductor 0.30
bar
Operation pressure
temperature of
100°C
@ minimal rpm > 1 bar
@ 4000 / min > 4 ÷ 4.5 bar
@ maximum
rpm
-
