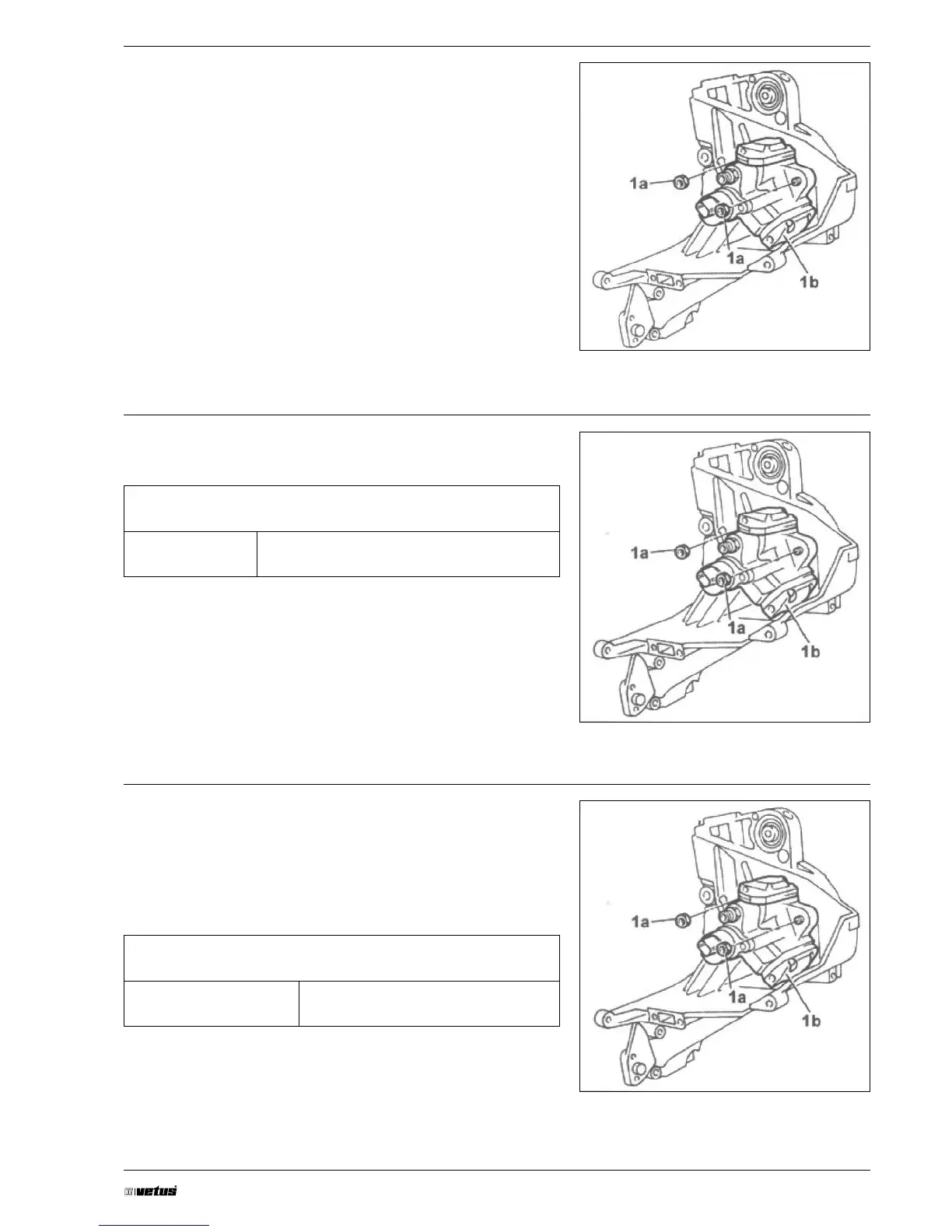

Undo the nuts (1 a) and remove the pressure pump (1b) from the
support.
Place the pressure pump (1 a) on the support and secure it tight-
ening the nuts (1b) to the recommended torque.
Injection pressure pump mount
Nut M8 (daNm) 2.3 ÷ 3.3
Place the pressure pump drive pulley back in its housing.
Lock the rotation of the pressure pump drive pulley using two
bolts.
Tighten the nut xing the pressure pump drive pulley to the rec-
ommended torque.
Pressure pump control pulley
Nut M14 (daNm) 4.2 ÷ 6.6
Undo the two bolts for locking the rotation of the pressure pump
drive pulley tted previously.
