VAB-820 Linux BSP v3.2.0 Quick Start Guide
24
5.7. Configuring the EMIO-2531 miniPCIe / EMIO-5531
USB Wi-Fi & Bluetooth Module
The EMIO-2531 miniPCIe Wi-Fi & Bluetooth module and EMIO-5531 USB Wi-Fi &
Bluetooth module support Wi-Fi and Bluetooth functions.
5.7.1. Connecting to the Internet
The first step is to insert the EMIO-2531 module into the miniPCIe slot or connect the
EMIO-5531 module to the onboard USB pin header (J8) using the USB cable
(P/N 99G3-
190042)
. After installing either module connect the provided antenna to the module.
Next, make sure to unplug any LAN cables or other Wi-Fi/3G modules you have
installed. Finally, power on the VAB-820.

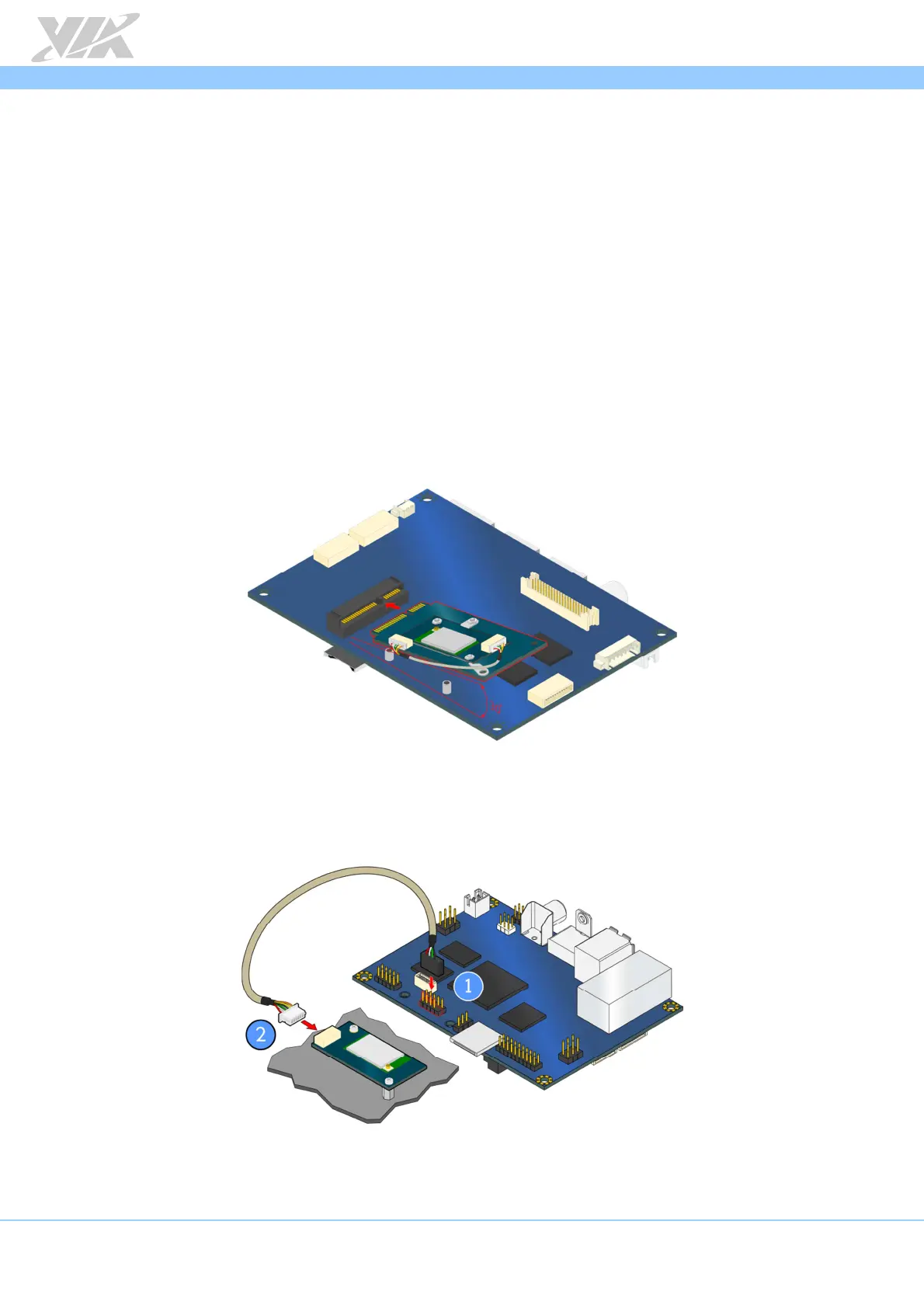

Inserting the EMIO-2531 module
Connecting the EMIO-5531 module
