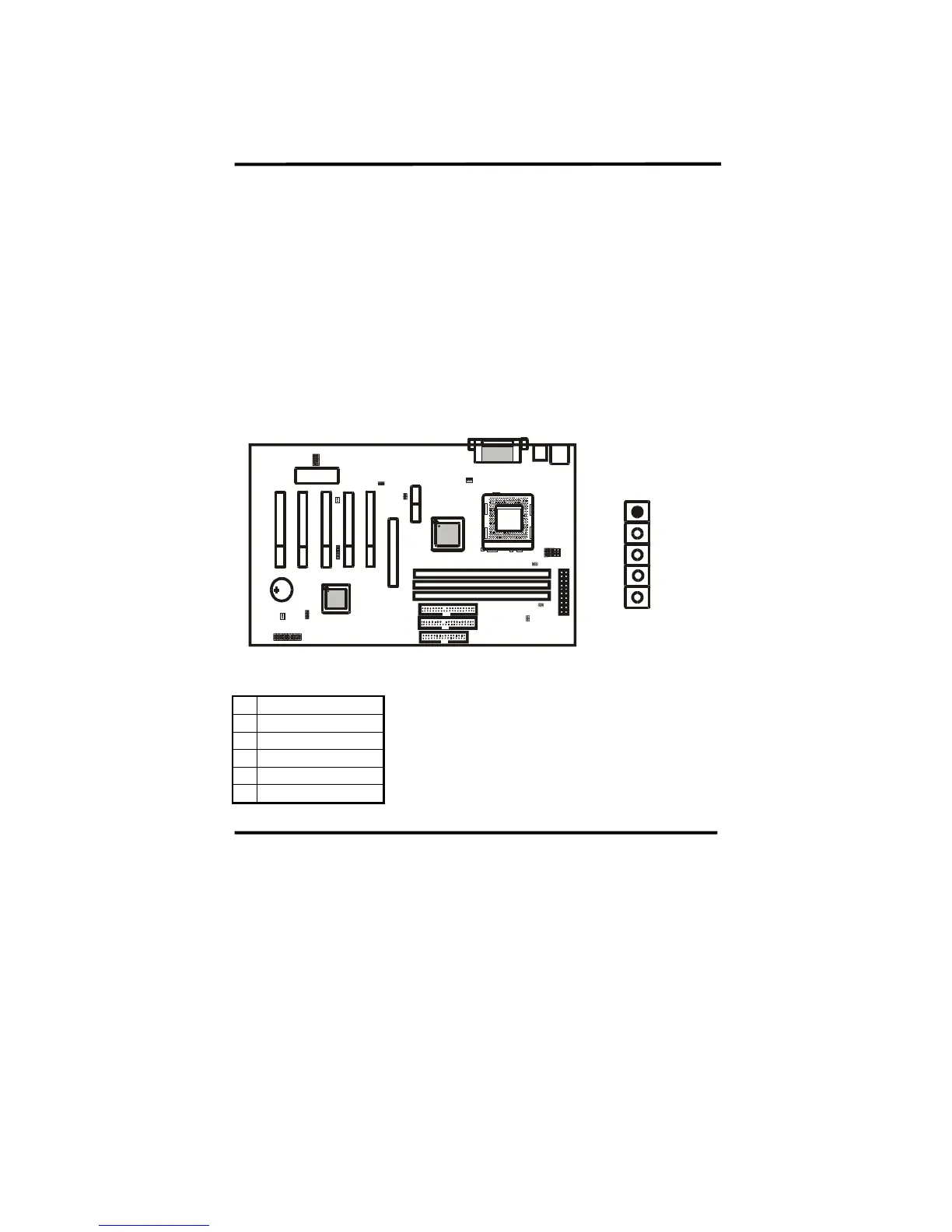

2-3-5 I.R. : IrDA Connector
IR1 connector supports wireless infrared module. With this module and
application software like Laplink, or Win95 Direct Cable Connection, user can
transfer data to or from laptops, notebooks, PDA and printers. This connector
supports HPSIR, ASKIR, and Fast IR.
Attach Infrared module to IR connector. Be sure to put in the right direction
during installation.
I.R.:IrDA
Cinnector
Pin1
IR1
1
VCC
2
NONE
3
IRRX
4
GND
5
IRTX
