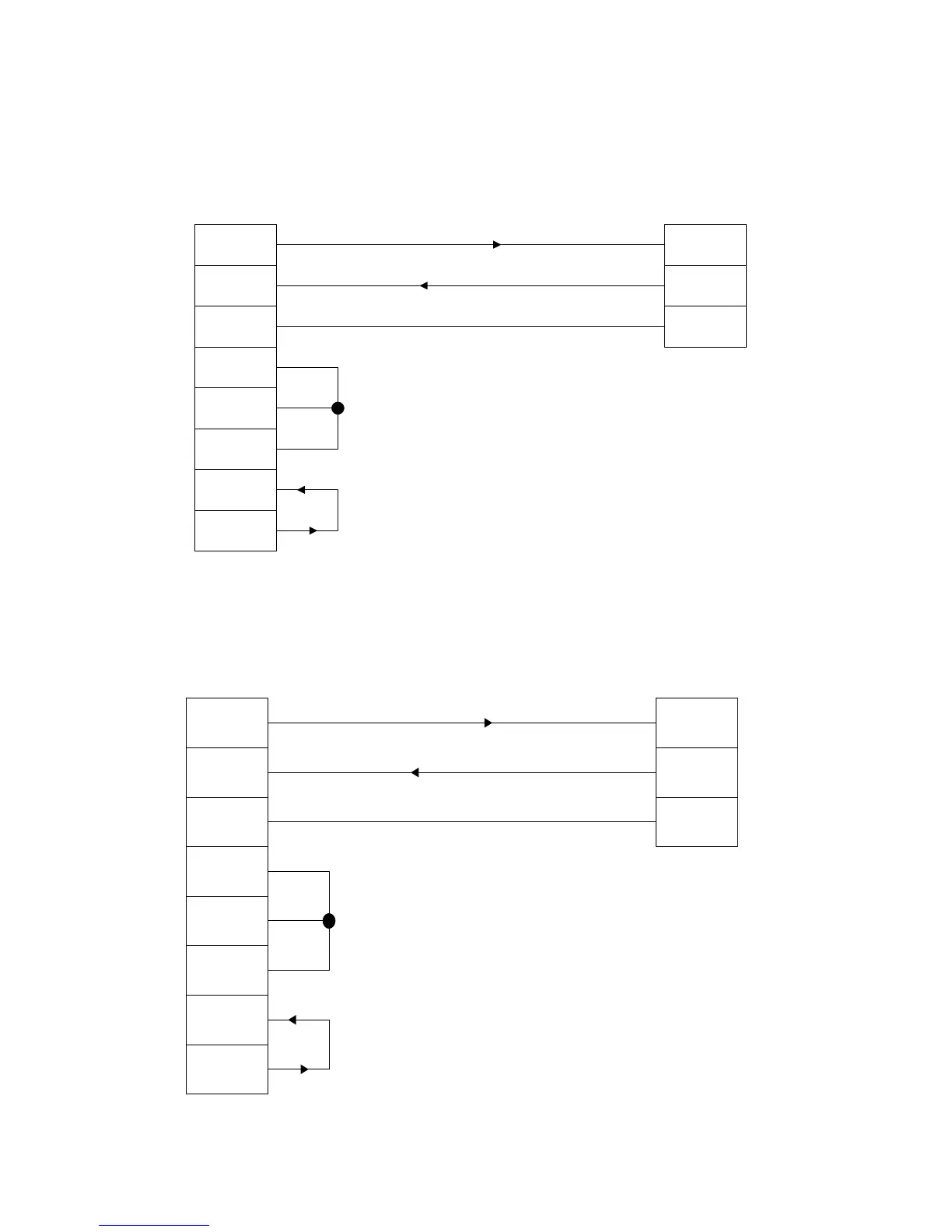

10.2 Connection between Balances and Personal Computers
 Sample connection with an IBM-PC/AT compatible 
 Sample connection with PC9801 
TXD
RXD
GND
DCD
RTS
CTS
DSR
DTR
RXD
TXD
GND
3
4
5
3
2
5
20
7
8
6
4
Balance
DIN5P
3
2
5
1
7
8
6
4
TXD
RXD
GND
DCD
RTS
CTS
DSR
DTR
RXD
TXD
GND
3
4
5
Balance
DIN5P
PC9801
D-SUB25P
IBM-PC/AT compatible
D-SUB9P
