Maintenance
127

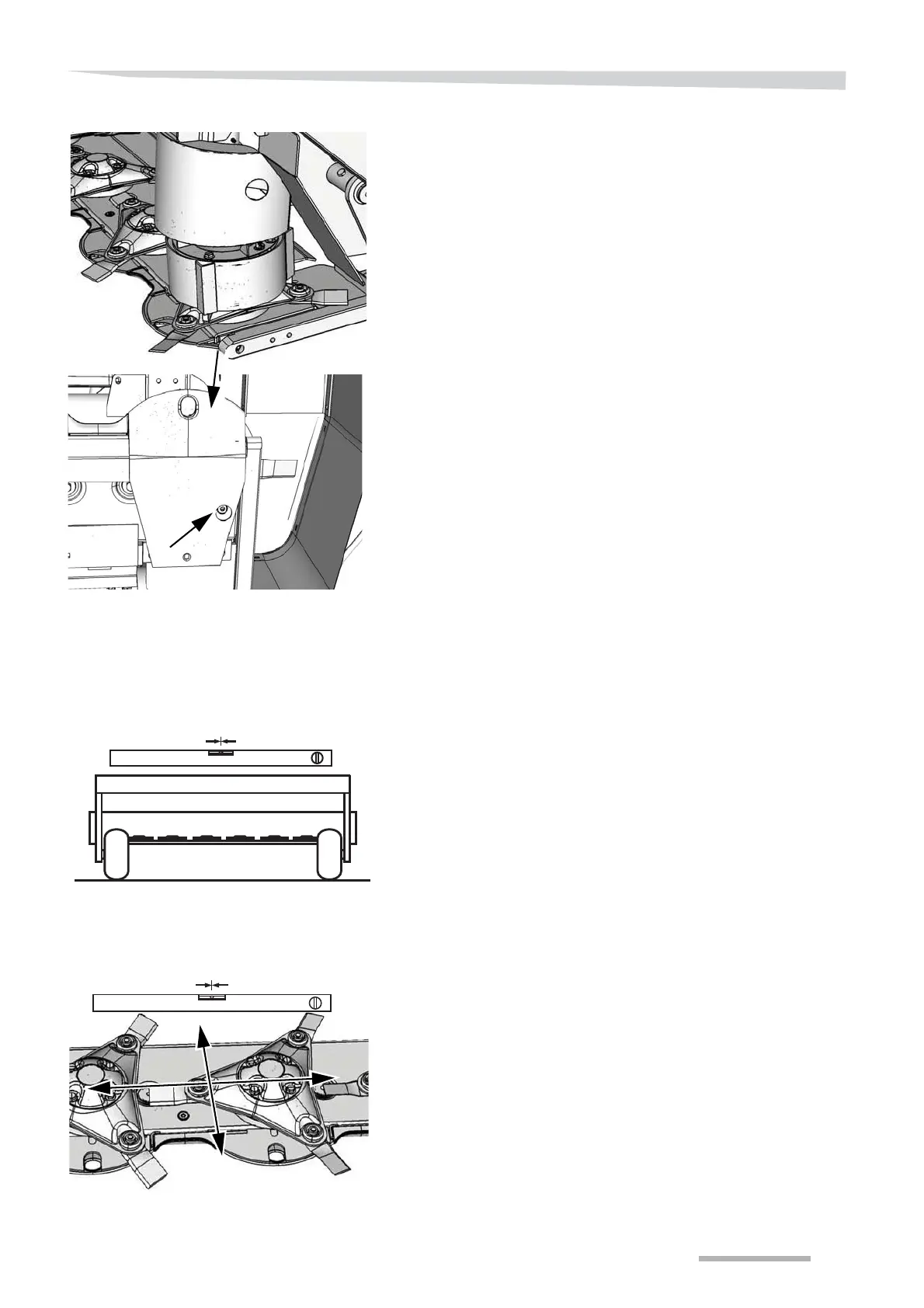

Locate the drain plug on the left side of the cutterbar and remove it.
Let the oil flow into an appropriate container.
Allow the last of the oil to drip out of the cutterbar for approx. 10 -
15 minutes.
Fit the drain plug into the cutterbar and tighten it fully.
Filling up with new oil
Place the machine on a level surface.
Check that the cutterbar is horizontal in the direction shown using
a spirit level or similar tool.
Position of the cutterbar when filling with oil:
See page 90
!
!
