Maintenance
135

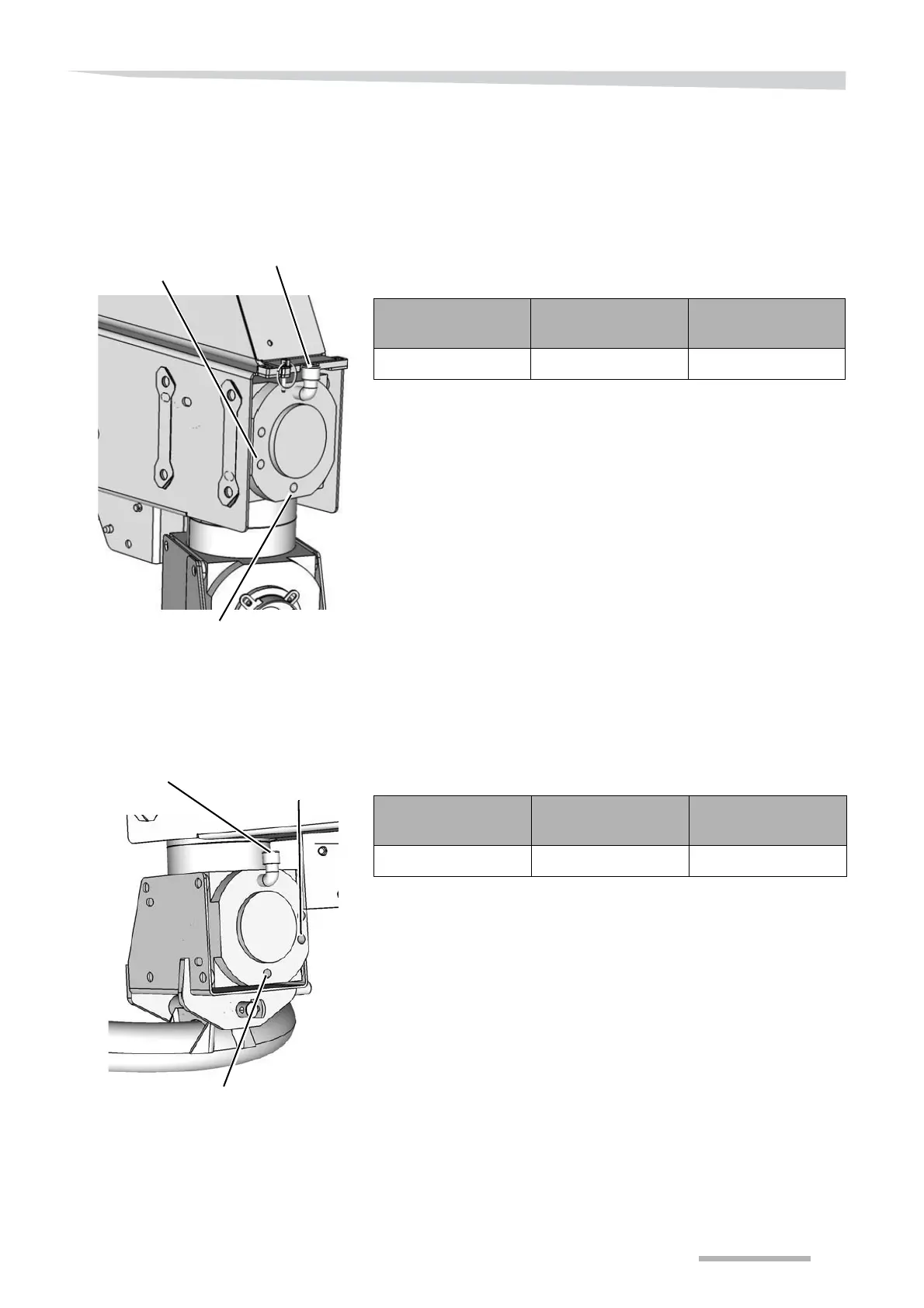

Swivel hitch
Changing oil
After 10 working hours
Thereafter, every season
The upper part of the swivel hitch
Oil amount when changing oil:
The oil is changed as follows:
Use a suitable tool to remove the oilplug 3.
Let the oil flow into an appropriate container.
Allow the last of the oil to drip out of the transmission for approx.
10 - 15 minutes.
Fit oilplug 3 and tighten it.
Remove oilplug 1 and 2.
Fill the new oil through the hole for oilplug 1.
• The correct oil level is reached when the oil reaches the edge of
the hole for oilplug 2.
Fit oilplugs 1 and 2 and tighten them.
»Lubricants« page 170
The lower part of the swivel hitch
»Maintenance intervals« page 79
Oil amount when changing oil:
The oil is changed as follows:
Use a suitable tool to remove the oilplug 6.
Let the oil flow into an appropriate container.
Allow the last of the oil to drip out of the transmission for approx.
10 - 15 minutes.
Fit oilplug 6 and tighten it.
Remove oilplugs 4 and 5.
Fill the new oil through the hole for oilplug 5.
The correct oil level is reached when the oil reaches the edge of
the hole for oilplug 5.
Fit oilplug 4 and tighten it.
»Lubricants« page 170
Litre
(approx.)
Pints (US)
(approx.)
Pints (Imp.)
(Approx.)
1.8 3.8 3.2
Litre
(approx.)
Pints (US)
(approx.)
Pints (Imp.)
(Approx.)
1.8 3.8 3.2
Oilplug 2
Oilplug 1
Oilplug 3
Oilplug 5
Oilplug 4
Oilplug 6
