Vicon Extra 832T PRO - Page 57

Operation
57

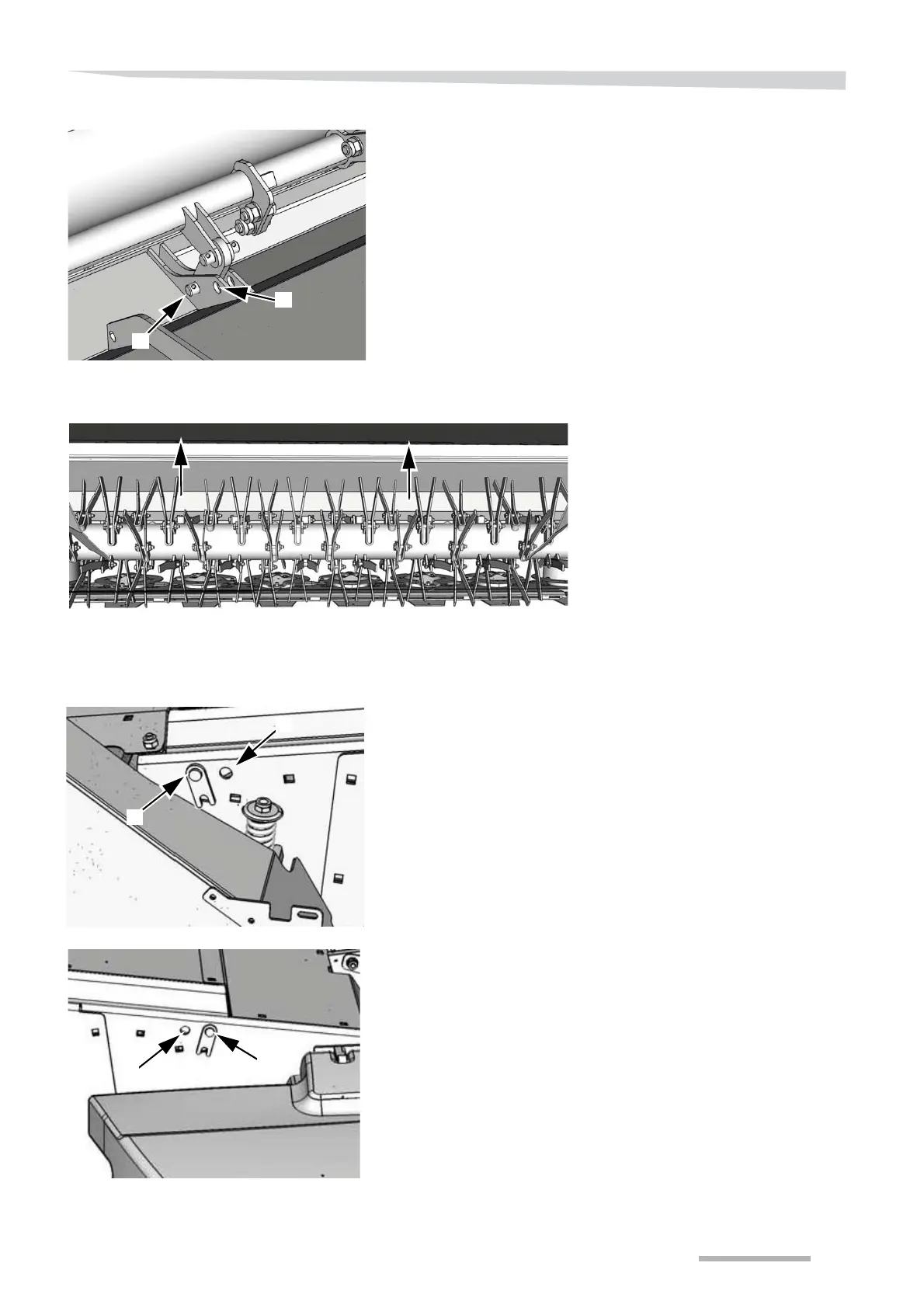

 Remove the pin bolt shown on both sides of the conditioner plate.
 Move the linkage back on the conditioner plate [12] as shown
and fit the pin bolt to both sides of the conditioner plate.
 Lift the conditioner plate up from the rotor.
 Move the pin bolts to the front position [12].
 Fit the conditioner plates on both sides of the machine.
1
2
2
1
1
2
