Operation
58

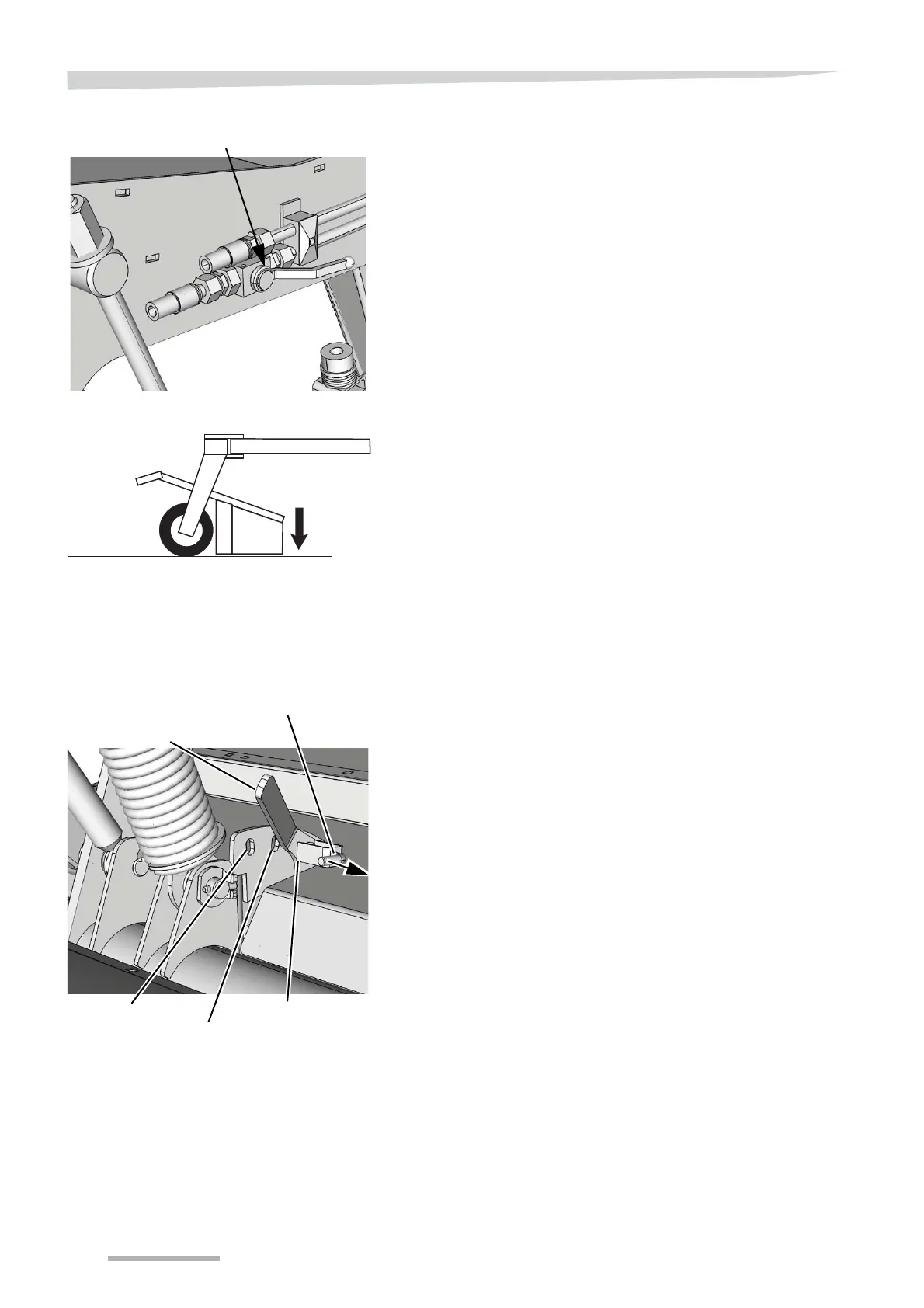

Open the mechanical safety valve.
Activate the tractor hydraulics and lower the cutting unit of the
machine.
Fine adjustment of the
conditioner plate
The conditioner plate can also be adjusted to 3 positions with a
handle, regardless of its basic setting.
»Basic setting of the conditioner plate« page 55
The conditioner plate is fine-tuned in the following way:
Pull out the lock.
Move the handle to the desired position.
Release the lock.
Check that the handle is locked in the desired position.
Handle
Lock
Pos. 1
Pos. 2
Pos. 3
