Overview of Printer Parts
The main parts of the Videojet 6210 printer is described as follows:
• CLARiTY Controller: Houses the power supply unit and touch
screen. You can access jobs, setup jobs, set the various print
parameters using the touch screen
• Printer: Houses the printhead and ribbon. The data is transferred
to the printhead from the CLARiTY controller. The printhead
prints onto the packaging film.
1. Air Regulator
2. 4 mm Air Tubing
3. CLARiTY Controller
4. CLARiTY Controller Bracket
5. Power Cable
6. Printer
7. Low Profile Cable Assembly
8. Cassette
9. CLARiTY Configuration Manager CD-
ROM

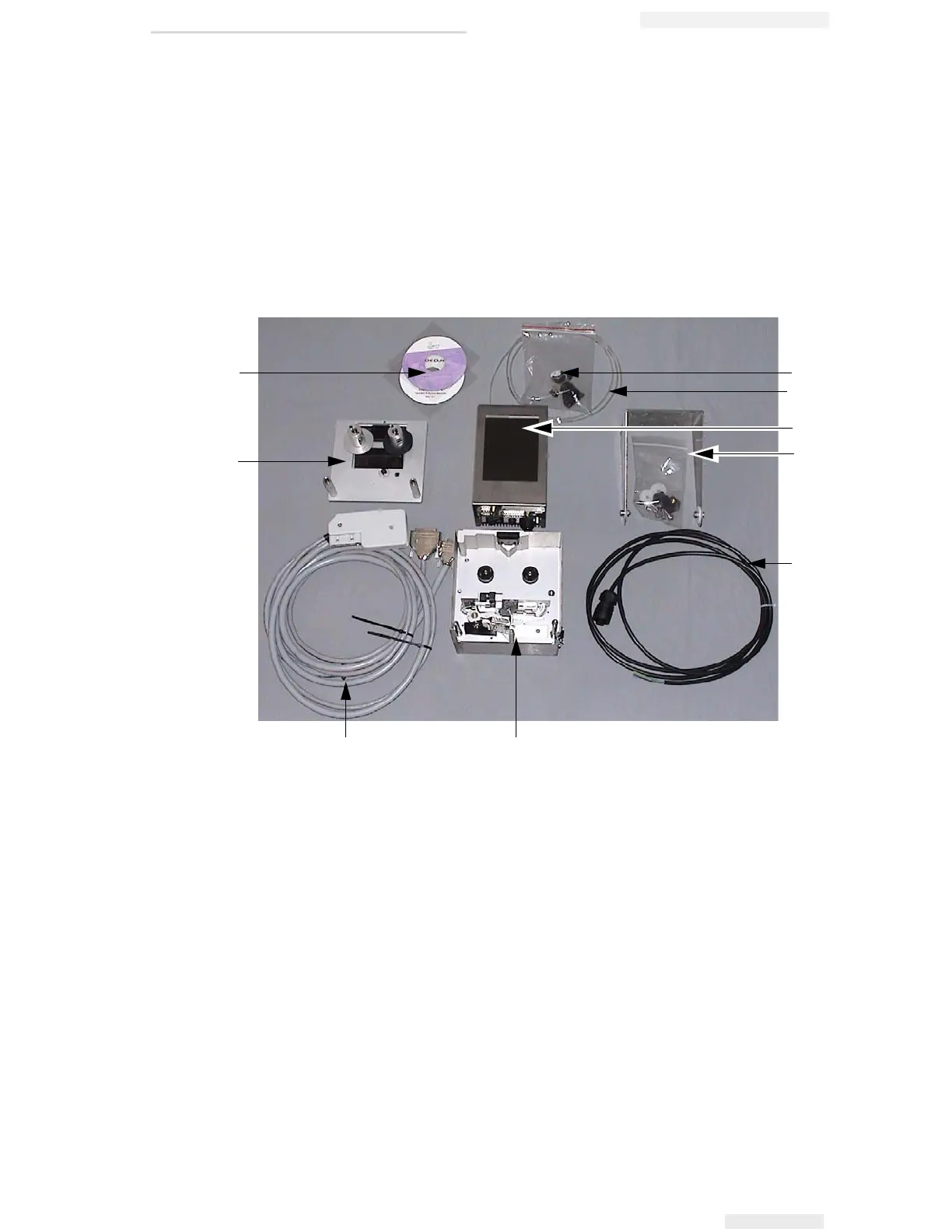

Figure 2-1: Printer Configuration Parts
9
6
4
3
5
7
2
1
8
