4000 Series Digital GSM - Technical Manual
4000 Series Digital GSM Audio Intercom with Proximity
USB & RS485 Connection
CONNECTIONS TO A PC
The digital GSM intercom also includes two options for connecting to a PC: via a USB connection or via an RS485 connection. Both
methods of connection are to allow for ease of programming and monitoring using the GSMSK PC software. All programming
features described in this manual are also accessible using the software. Further information on using the GSMSK PC software can
be found in the technical manual GSMSK-PC-SOFTWARE-MANUAL-ENUK-V1-2 (or later version).
OPTION 1: USB CONNECTION
The digital GSM can be connected using a standard micro-USB to USB cable as shown in Fig.14. This method of connection is
primarily used for programming and setup of the digital GSM panel.
%0
A
B
GND
12V
0V
PTE
AI
TRD
AO
NC
CO
NO
USB
4812
4812R
RS485
Vandal Resistant 4000 Series Digital GSM Panel
PC
USB cable

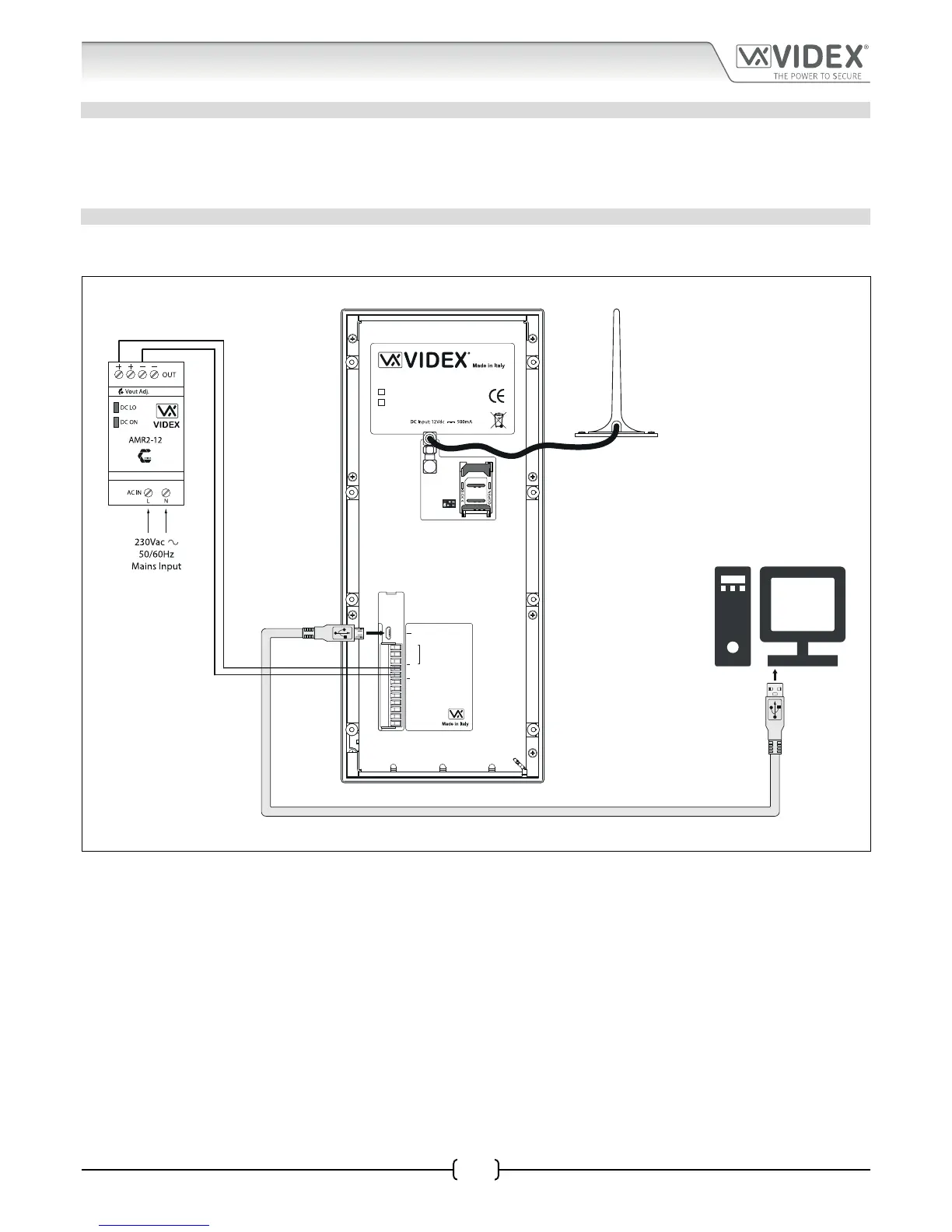

Fig. 14
