PAGE 12 of 36 VR GSM DOOR INTERCOM TECHNICAL MANUAL VER2.0.0
DOOR PANEL MOUNTING FRAMES (VR4K SERIES)
Both surface and flush mounting frames are available. The size of the frame will depend
on the number of modules that make up the door panel. The last digit of the frame code
indicates the number of modules it will take. Frames are available in gun metal gray finish,
chrome finish (Suffix \C to the frame code) or gold finish (Suffix \G to the frame code).

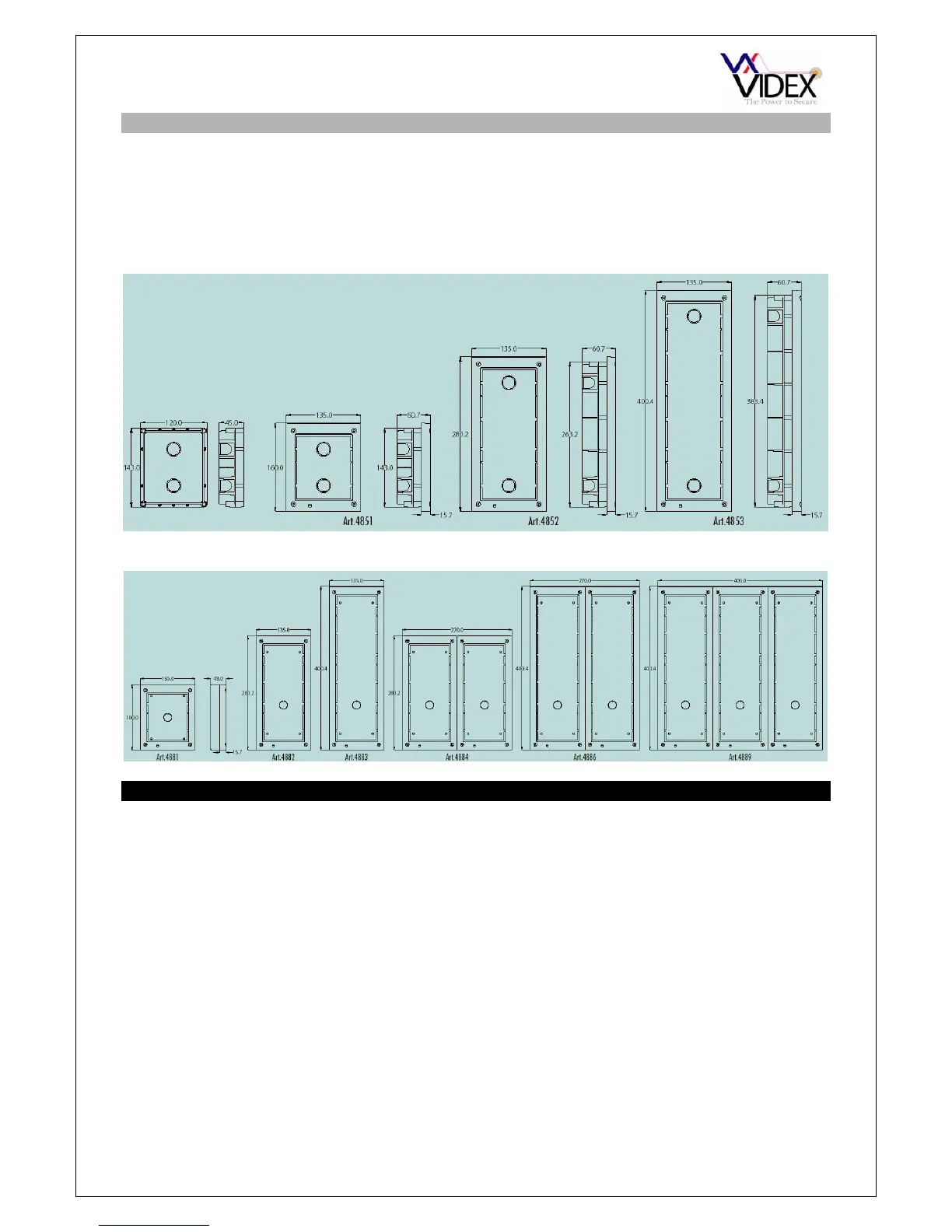

Flush frames:
Surface frames:
POWER SUPPLY
The GSM intercom panel is designed to work with power supplies of 12-14Vdc. The power
supply should be capable of supplying a constant current of no less than 1 amp (If the
system is to work with failsafe lock releases or magnetic locks we would recommend a
minimum of 2 amps). The following Videx power supplies can be used:-
Art.324 12Vdc 2A Switched mode DIN box PSU
Art.521B 13.5Vdc 1A DIN box PSU
SP29 13.8Vdc 2A boxed PSU with battery back up facility
SP28 13.8Vdc 3A boxed PSU with battery back up facility
