Vitodens 100-W, B1HE/B1KE Combi Installation/Service
Parts
Parts List
(continued)
Boiler Model No. Serial No.
B1KE-120 7722776

Ordering Parts:
Please provide Serial Number when ordering
replacement parts. Order replacement
components from your Viessmann distributor.

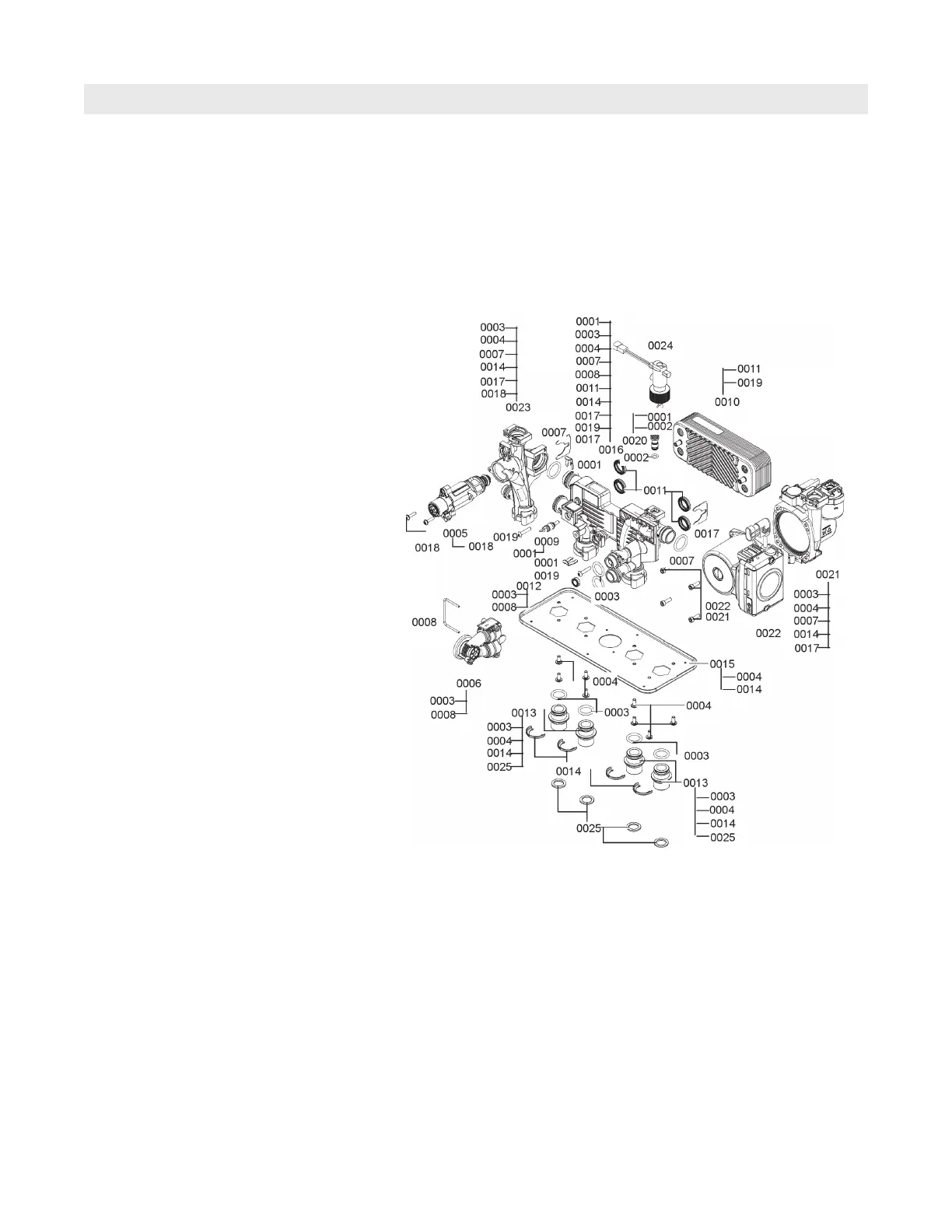

Pump Module
0001 Clip D=8 small (5 pcs)
0002 Round seal ring (5 pcs)
0003 O-Rings (5 pcs)
0004 Screw (5 pcs)
0005 Valve insert
0006 Flow sensor
0007 O-Ring (5 pcs)
0008 Safety pin (2 pcs)
0009 NTC temperature sensor
VA -30...+125°C
0010 Plate heat exchanger
0011 Profile seal
0012 Flow regulator
0013 Connector G3/4
0014 Fuse clip nipple connection
0015 Compact carrier sheet hydraulics
0016 Adapter PWT compact
0017 Clip D=24 (5 pcs)
0018 Screw EJOT (5 pcs)
0019 Round head screw (5 pcs)
0020 Plug D=8/D=10
0021 Return flow housing with cap and plug
0022 Circulation pump motor 115V
0023 Flow housing
0024 Flow switch
0025 Gasket set
