Viessmann VITOCAL 350 - Output Diagrams Vitocal 300 (Single Stage); BW 106 and WW 106 Models

Vitocal 300, type BW 106 and WW 106 (single stage)

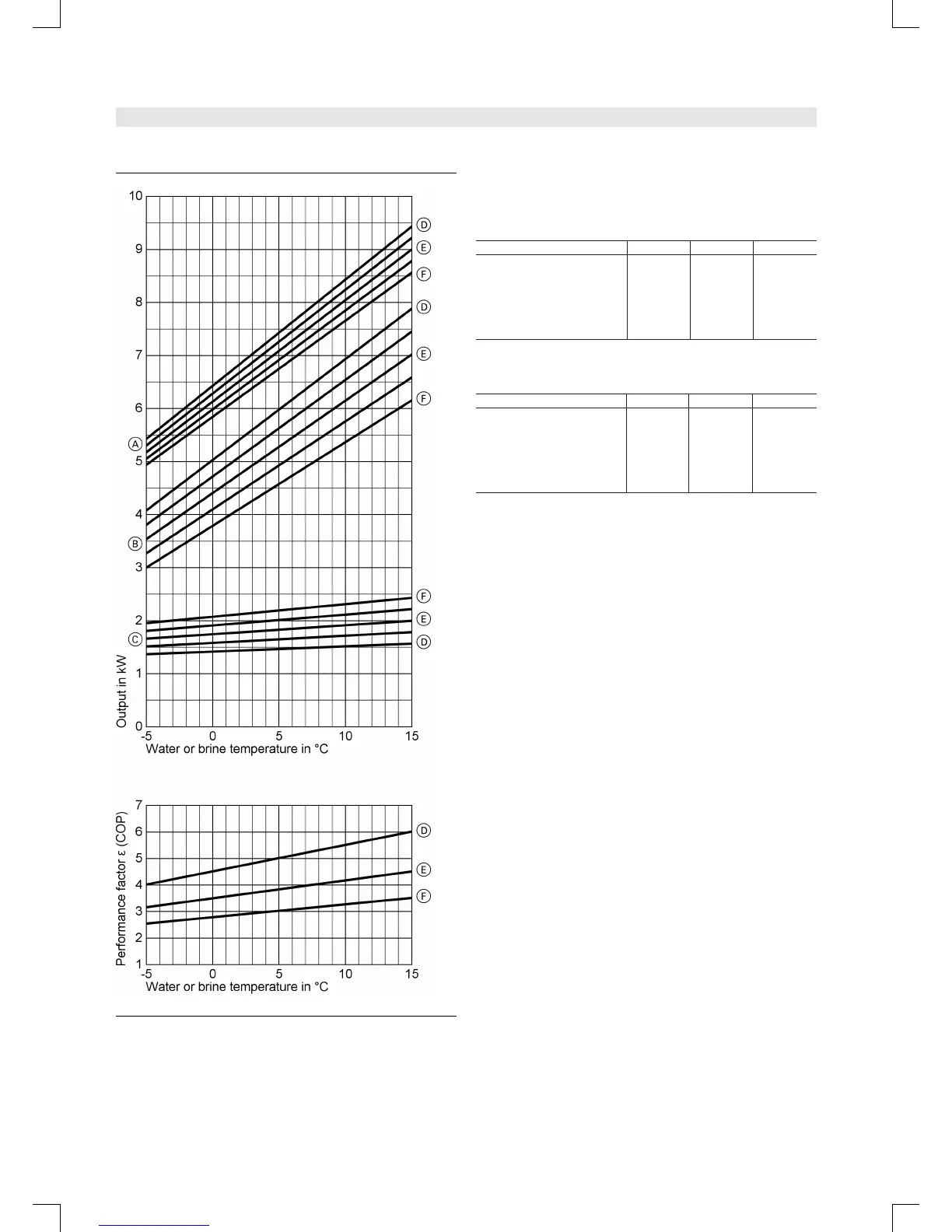

A Heating output
B Refrigerating capacity
C Power consumpti on
D T
HV
=35°C
E T
HV
=45°C
F T
HV
=55°C
Note
COP details i n the following tables and diagrams calculated with
reference to DIN EN 255.
Performance data type BW 106
Operating point B0/W35 B2/W45 B2/W55
Heating output kW 6.40 6.60 6.20
Refrigerating capa-
city
kW 5.00 4.80 4.10
Power consumption kW 1.40 1.75 2.10
Coefficient of Performance
∊ (COP)
4.57 3.76 2.95
Performance data type WW 106
Operating point W10/W35 W8/W45 W8/W55
Heating output kW 8.40 7.60 7.30
Refrigerating capa-
city
kW 6.90 5.75 5.05
Power consumption kW 1.50 1.85 2.25
Coefficient of Performance
∊ (COP)
5.60 4.11 3.24
