Viessmann VITOCAL 350 - Output Diagrams Vitocal 300 (Single Stage) (cont.); BW 108 and WW 108 Models

Vitocal 300, type BW 108 and WW 108 (single stage)

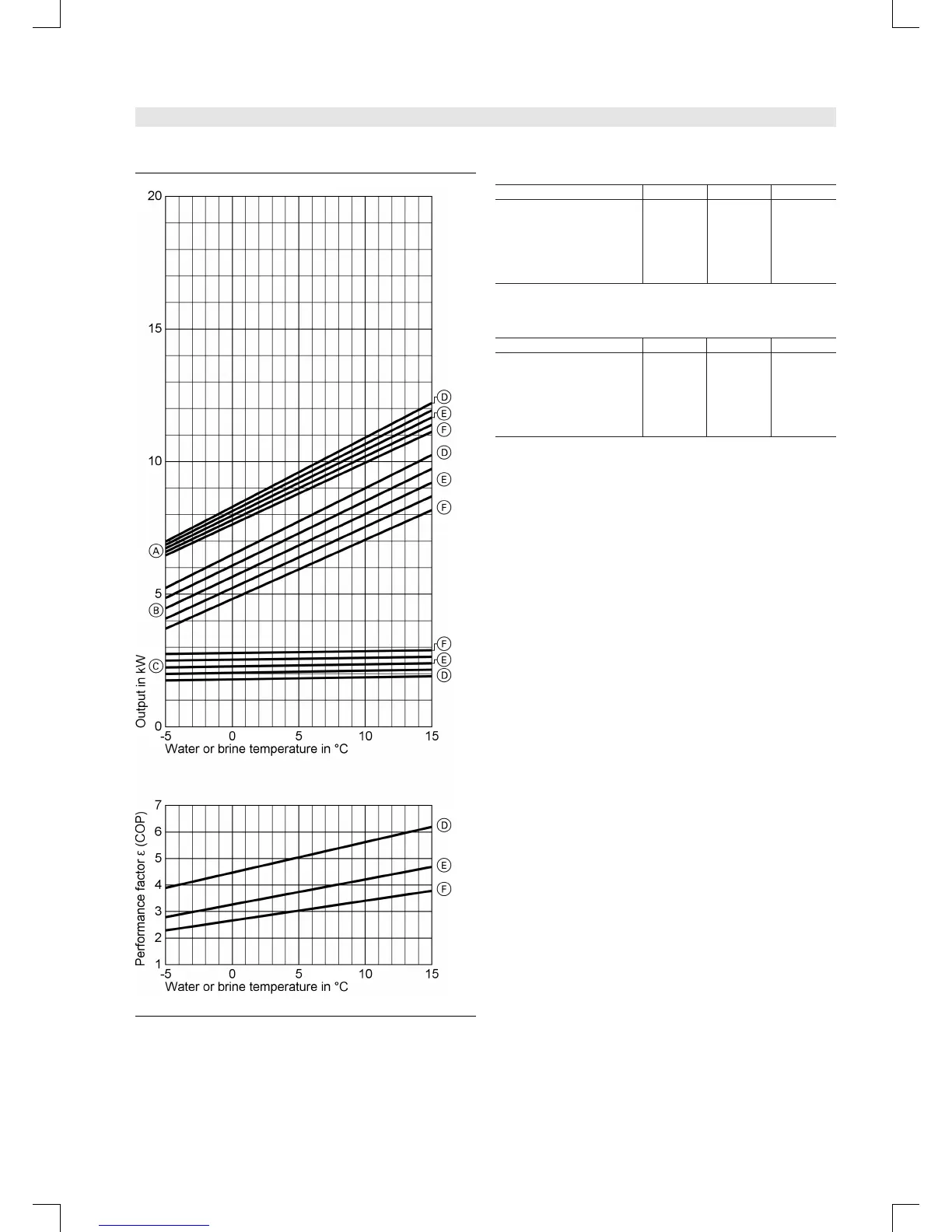

A Heating output
B Refrigerating capacity
C Power consumpti on
D T
HV
=35°C
E T
HV
=45°C
F T
HV
=55°C
Performance data type BW 108
Operating point B0/W35 B2/W45 B2/W55
Heating output kW 8.30 8.50 8.10
Refrigerating capa-
city
kW 6.50 6.25 5.30
Power consumption kW 1.80 2.25 2.75
Coefficient of Performance
∊ (COP)
4.61 3.77 2.95
Performance data type WW 108
Operating point W10/W35 W8/W45 W8/W55
Heating output kW 10.90 9.90 9.50
Refrigerating capa-
city
kW 9.00 7.55 6.65
Power consumption kW 1.90 2.35 2.85
Coefficient of Performance
∊ (COP)
5.74 4.21 3.33
5822 119-7 GB
VITOCAL 300/350 VIESMANN 13
Output diagrams for the Vitocal 300 (single stage) (cont.)
