Viessmann VITOCAL 350 - Output Diagrams Vitocal 300 (Two-Stage) (cont.); BW 226 and WW 226 Models

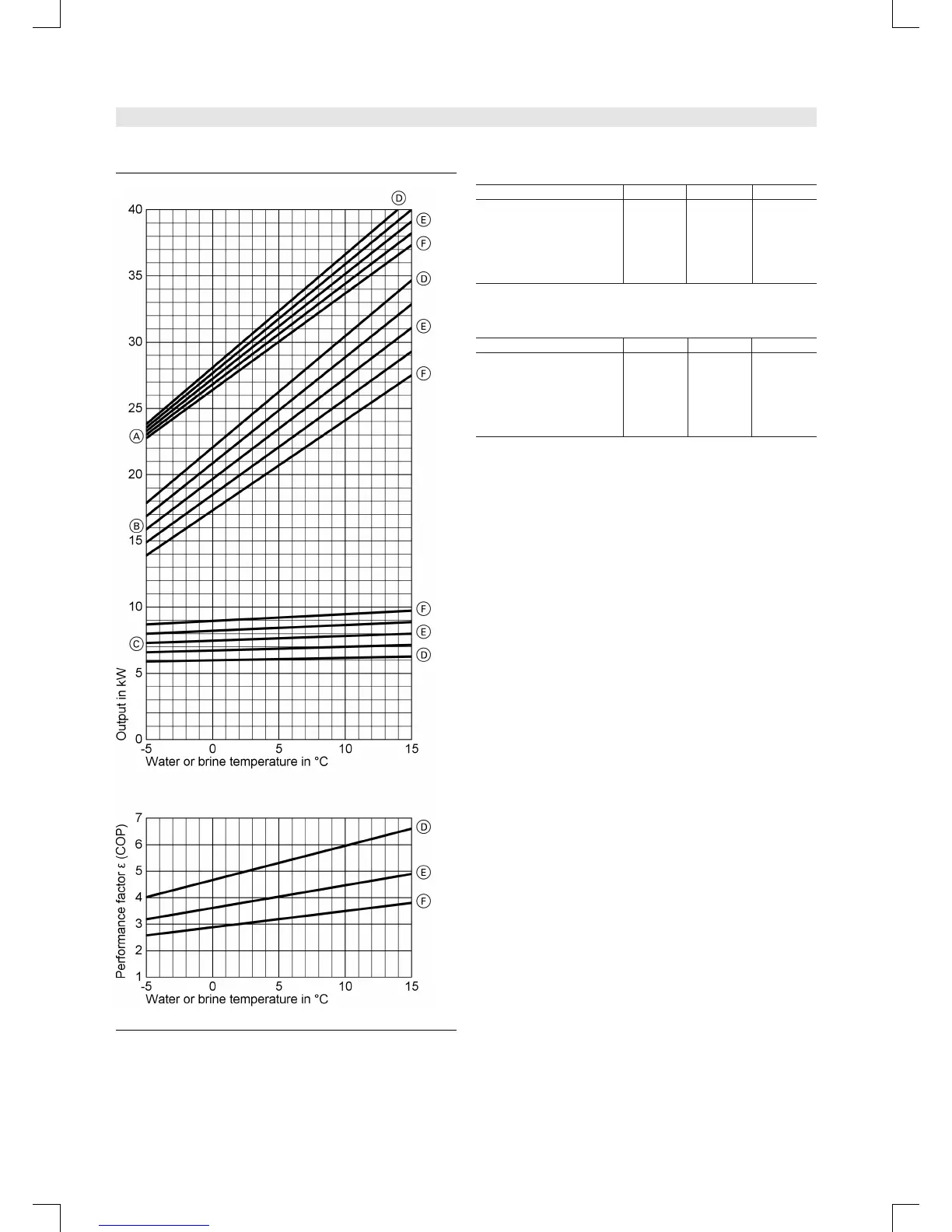

Vitocal 300, type BW 226 and WW 226 (two-stage)
A Heating output
B Refrigerating capacity
C Power consumpti on
D T
HV
=35°C
E T
HV
=45°C
F T
HV
=55°C
Performance data type BW 226
Operating point B0/W35 B2/W45 B2/W55
Heating output kW 28.00 28.80 27.80
Refrigerating capa-
city
kW 21.90 21.30 18.70
Power consumption kW 6.10 7.50 9.10
Coefficient of Performance
∊ (COP)
4.57 3.82 3.00
Performance data type WW 226
Operating point W10/W35 W8/W45 W8/W55
Heating output kW 36.60 33.40 32.20
Refrigerating capa-
city
kW 30.40 25.70 22.80
Power consumption kW 6.20 7.70 9.40
Coefficient of Performance
∊ (COP)
5.87 4.31 3.40
