Viessmann VITOCAL 350 - Output Diagrams Vitocal 300 (Two-Stage) (cont.); BW 220 and WW 220 Models

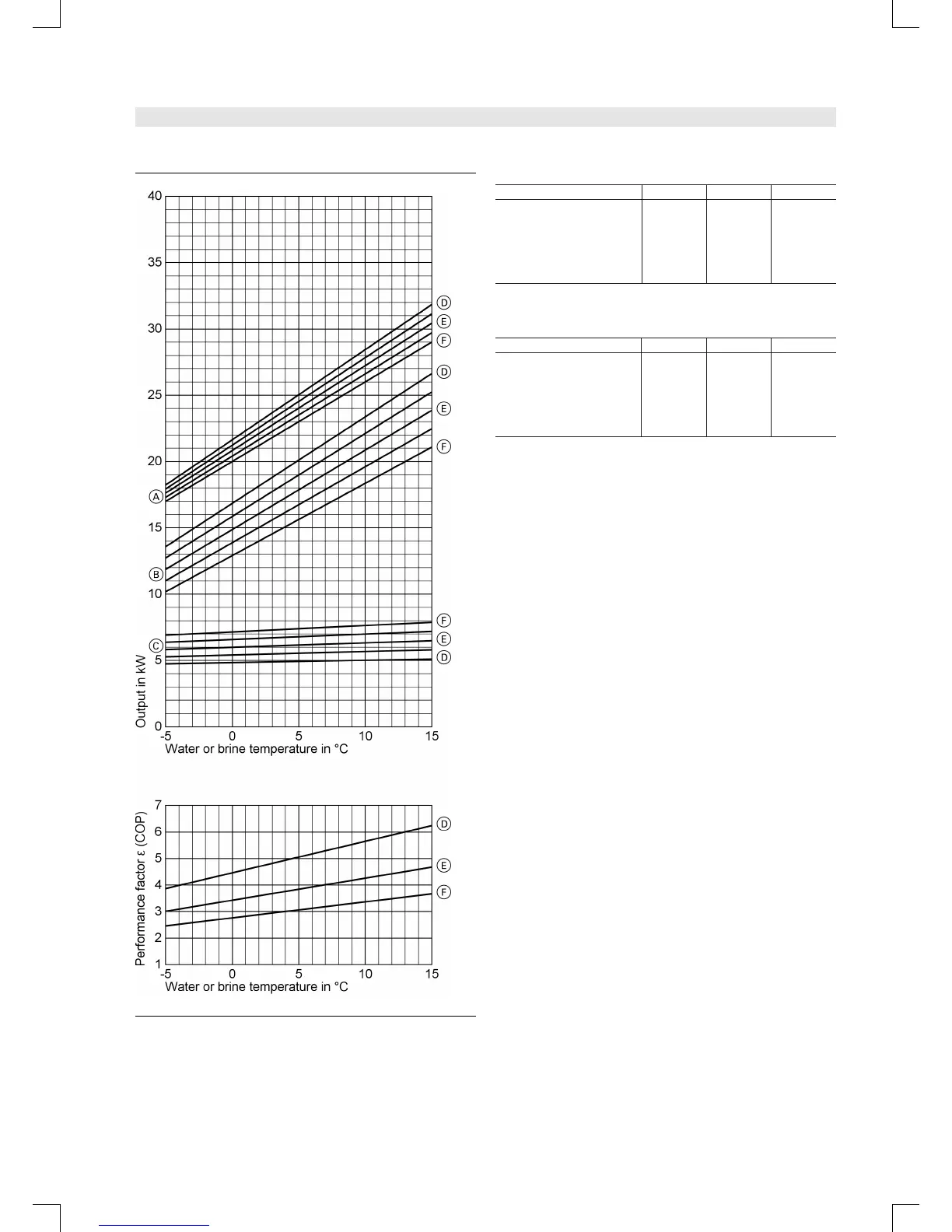

Vitocal 300, type BW 220 and WW 220 (two-stage)
A Heating output
B Refrigerating capacity
C Power consumpti on
D T
HV
=35°C
E T
HV
=45°C
F T
HV
=55°C
Performance data type BW 220
Operating point B0/W35 B2/W45 B2/W55
Heating output kW 21.60 22.20 21.20
Refrigerating capa-
city
kW 16.80 16.20 14.00
Power consumption kW 4.80 6.00 7.20
Coefficient of Performance
∊ (COP)
4.49 3.69 2.93
Performance data type WW 220
Operating point W10/W35 W8/W45 W8/W55
Heating output kW 28.40 25.80 24.80
Refrigerating capa-
city
kW 23.40 19.60 17.30
Power consumption kW 5.00 6.20 7.50
Coefficient of Performance
∊ (COP)
5.66 4.14 3.29
5822 119-7 GB
VITOCAL 300/350 VIESMANN 19
Output diagrams for the Vitocal 300 (two-stage) (cont.)
