Viessmann VITOCAL 350 - Output Diagrams Vitocal 300 (Two-Stage) (cont.); BW 216 and WW 216 Models

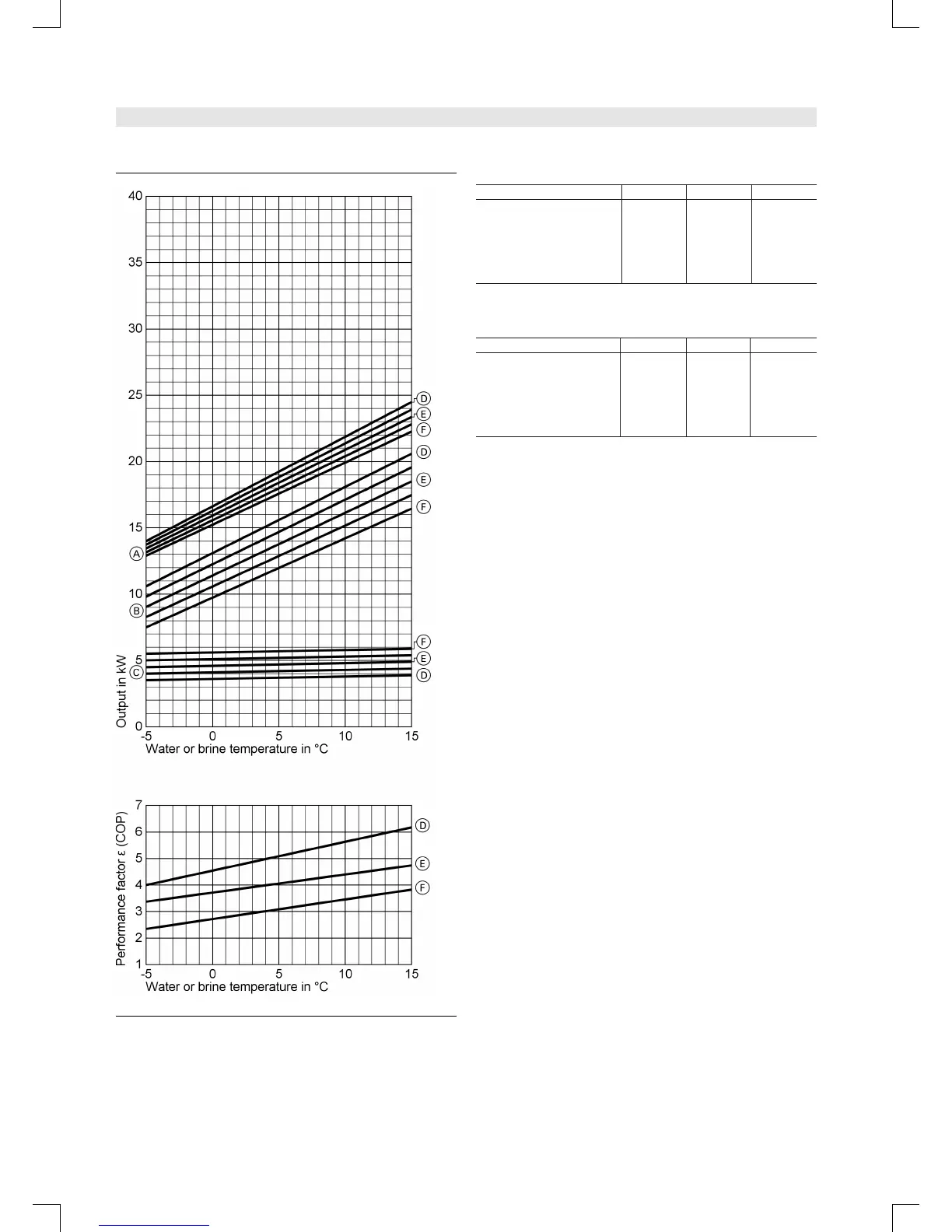

Vitocal 300, type BW 216 and WW 216 (two-stage)
A Heating output
B Refrigerating capacity
C Power consumpti on
D T
HV
=35°C
E T
HV
=45°C
F T
HV
=55°C
Performance data type BW 216
Operating point B0/W35 B2/W45 B2/W55
Heating output kW 16.60 17.00 16.20
Refrigerating capa-
city
kW 13.00 12.50 10.60
Power consumption kW 3.60 4.50 5.50
Coefficient of Performance
∊ (COP)
4.60 3.76 2.94
Performance data type WW 216
Operating point W10/W35 W8/W45 W8/W55
Heating output kW 21.80 18.80 19.00
Refrigerating capa-
city
kW 18.00 15.10 13.30
Power consumption kW 3.80 4.70 5.70
Coefficient of Performance
∊ (COP)
5.72 4.19 3.31
