Viessmann VITOCAL 350 - Output Diagrams Vitocal 300 (Single Stage) (cont.); BW 113 and WW 113 Models

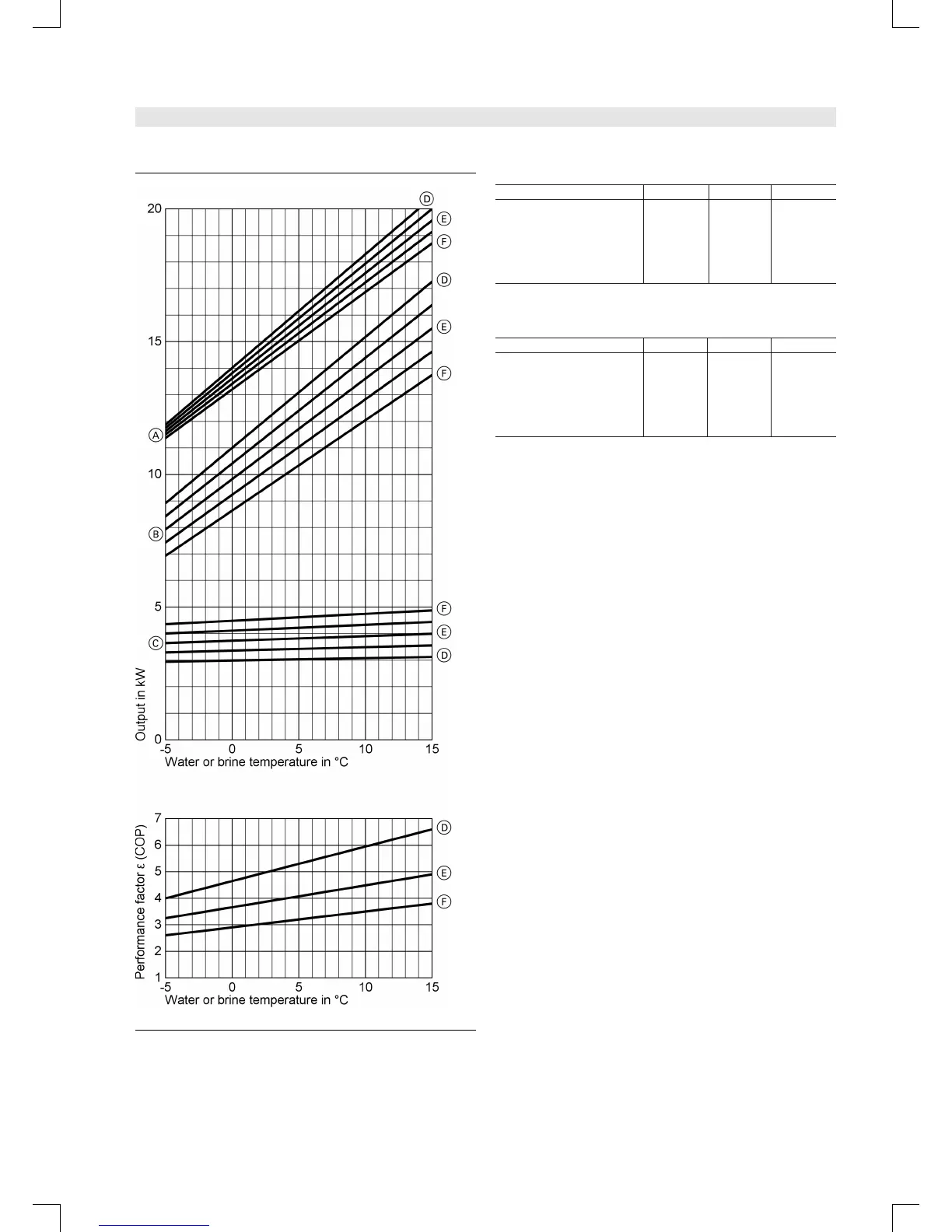

Vitocal 300, type BW 113 and WW 113 (single stage)
A Heating output
B Refrigerating capacity
C Power consumpti on
D T
HV
=35°C
E T
HV
=45°C
F T
HV
=55°C
PerformancedatatypeBW113
Operating point B0/W35 B2/W45 B2/W55
Heating output kW 14.00 14.40 13.90
Refrigerating capa-
city
kW 1 0.95 10.65 9.35
Power consumption kW 3.05 3.75 4.55
Coefficient of Performance
∊ (COP)
4.59 3.84 3.05
PerformancedatatypeWW113
Operating point W10/W35 W8/W45 W8/W55
Heating output kW 18.30 16.70 16.10
Refrigerating capa-
city
kW 15.20 1 2.85 11.40
Power consumption kW 3.10 3.85 4.70
Coefficient of Performance
∊ (COP)
5.90 4.34 3.43
5822 119-7 GB
VITOCAL 300/350 VIESMANN 15
Output diagrams for the Vitocal 300 (single stage) (cont.)
