Viessmann VITOCAL 350 - Output Diagrams Vitocal 350 (cont.); BWH 113 and WWH 113 Models

Vitocal 350, type BWH 113 and WWH 113

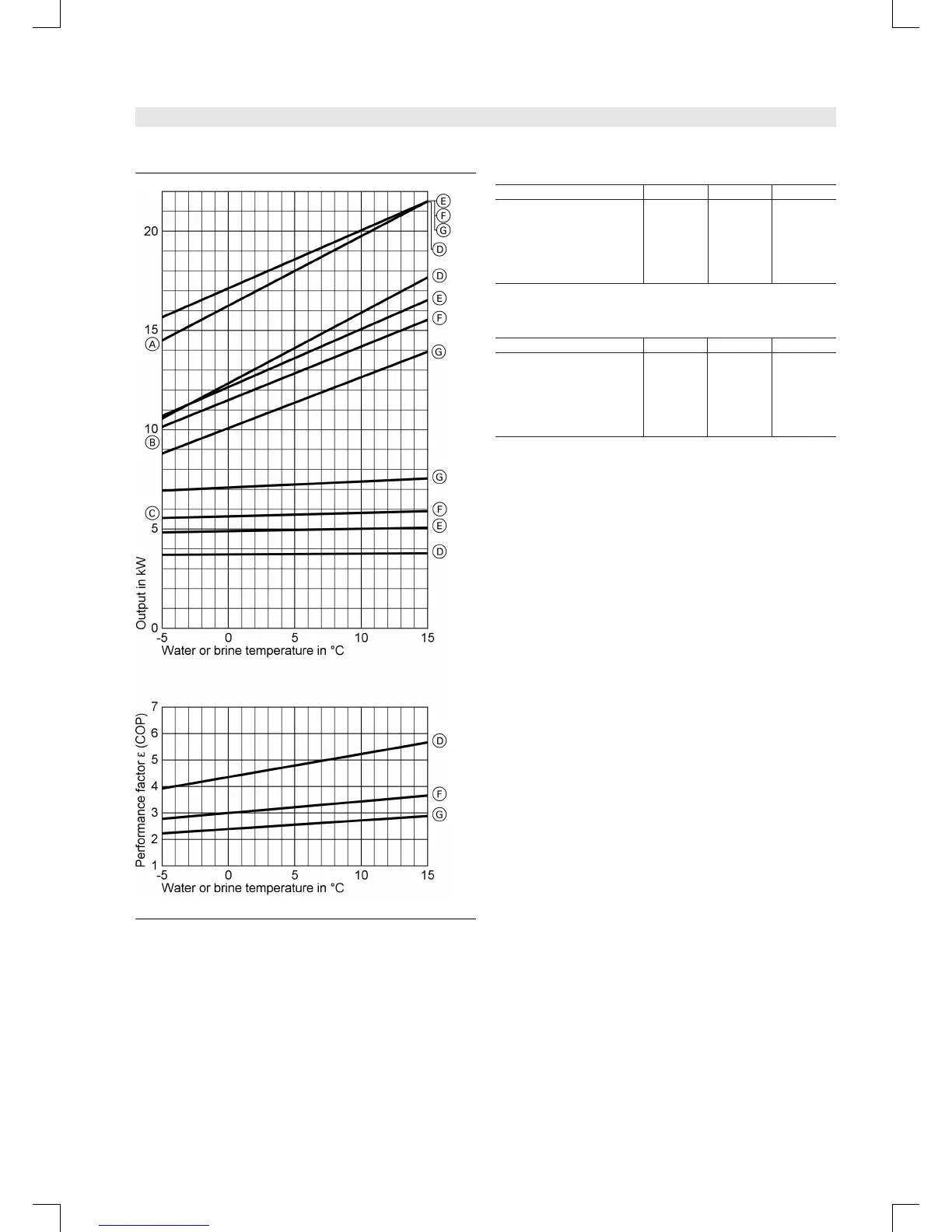

A Heating output
B Refrigerating capacity
C Power consumpti on
D T
HV
=35°C
E T
HV
=45°C
F T
HV
=55°C
G T
HV
=65°C
PerformancedatatypeBWH113
Operating point B0/W35 B2/W55 B2/W65
Heating output kW 16.20 17.70 17.70
Refrigerating capa-
city
kW 12.45 12.00 10.60
Power consumption kW 3.75 5.70 7.10
Coefficient of Performance
∊ (COP)
4.32 3.11 2.49
PerformancedatatypeWWH113
Operating point W10/W35 W8/W55 W8/W65
Heating output kW 19.70 19.40 19.40
Refrigerating capa-
city
kW 15.90 13.65 12.15
Power consumption k W 3.80 5.75 7.25
Coefficient of Performance
∊ (COP)
5.18 3.37 2.68
5822 119-7 GB
VITOCAL 300/350 VIESMANN 23
Output diagrams for the Vitocal 350 (cont.)
