Viessmann VITOCAL 350 - Output Diagrams Vitocal 300 (Two-Stage) (cont.); BW 232 and WW 232 Models

Vitocal 300, type BW 232 and WW 232 (two-stage)

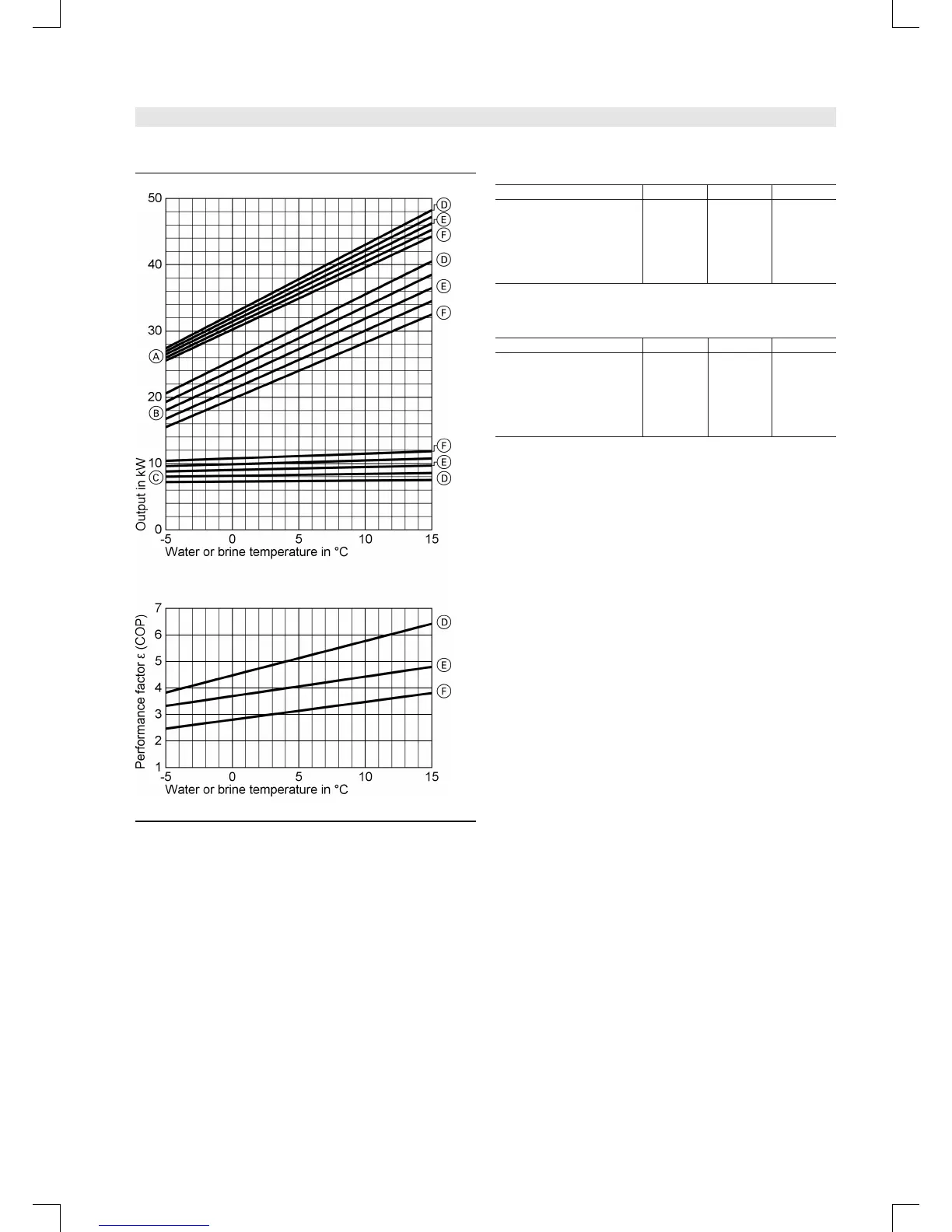

A Heating output
B Refrigerating capacity
C Power consumpti on
D T
HV
=35°C
E T
HV
=45°C
F T
HV
=55°C
Performance data type BW 232
Operating point B0/W35 B2/W45 B2/W55
Heating output kW 32.60 33.40 32.20
Refrigerating capa-
city
kW 25.40 24.40 21.40
Power consumption kW 7.20 9.00 10.80
Coefficient of Performance
∊ (COP)
4.51 3.69 2.96
Performance data type WW 232
Operating point W10/W35 W8/W45 W8/W55
Heating output kW 43.00 39.20 37.80
Refrigerating capa-
city
kW 35.60 30 .00 26.60
Power consumption kW 7.40 9.20 11.20
Coefficient of Performance
∊ (COP)
5.79 4.24 3.35
5822 119-7 GB
VITOCAL 300/350 VIESMANN 21
Output diagrams for the Vitocal 300 (two-stage) (cont.)
