Viessmann Vitopend 100-W - Rated heating output 24 kW

122
Model Combi boiler System boiler
Type L1P24 - A1JF N1P24 - A1HF
Rated heat input (heating mode) kW 6.1 - 24.4 6.1 - 24.4
Rated heat input (DHW heating) kW 6.1 - 24.4 6.1 - 24.4
Electronic temperature limiter setting °C 84 84
Temperature limiter setting °C 100 100
Dimensions
■ Length mm 300 300
■ Width mm 350 350
■ Height mm 700 700
Weight (net) kg 28.0 27.0

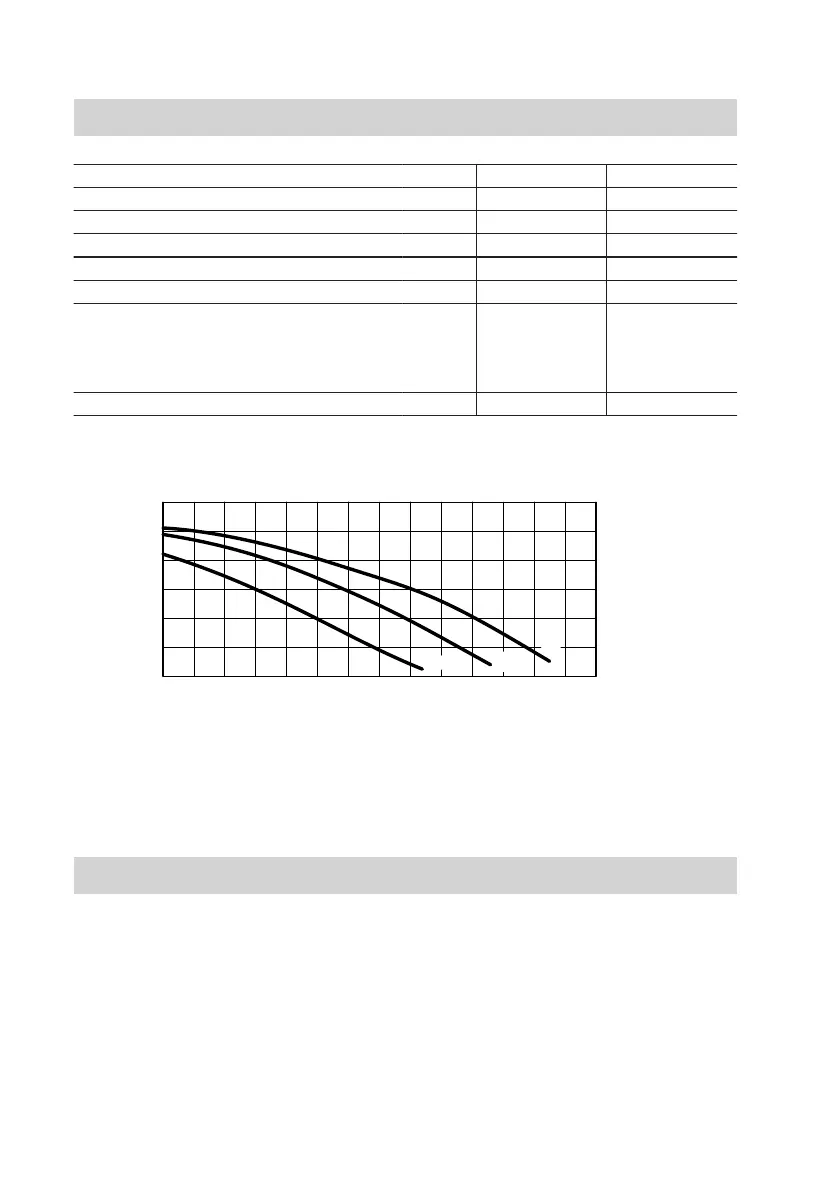

Residual head of the circulation pump
10
20
30
40
50
60
kPa
0
100
200
300
400
500
600
Residual head in mbar
A
B
C
2000 2400 28000 400 800 1200 1600
Flow rate in l/h
A
Stage 1
B
Stage 2
C
Stage 3
Rated heating output 24 kW
Note
The supply values are only for refer-
ence (e.g. in the gas contract applica-
tion) or for a supplementary, rough esti-
mate to check the volumetric settings.
Due to factory settings, the gas pres-
sure must not be altered from these
values.
Specification
Rated heating output 22 kW
(cont.)
5837146
