5.3Overview of stress reactions for Vitosol 100
95
VITOSOL

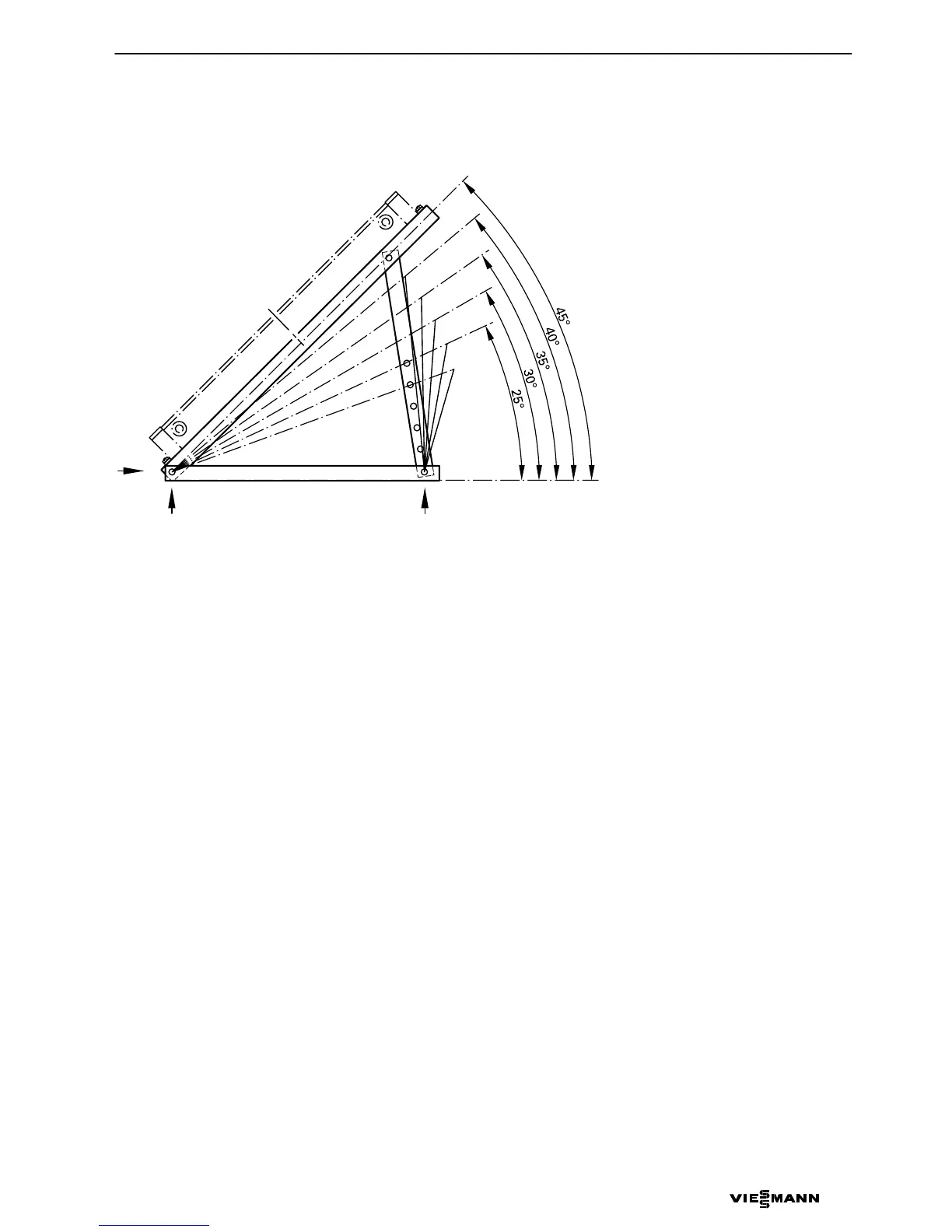

5.3 Overview of stress reactions for Vitosol 100
All forces in the following summary are reaction forces.
I max. Av: (for maximum compression)
max. Av: maximum vertical static load stress reaction on bearing A
assoc. Bv: associated vertical static load stress reaction on bearing B
assoc. Ah: associated horizontal static load stress reaction on bearing A
II max. Bv: (for maximum compression)
assoc. Av: associated vertical static load stress reaction on bearing A
max. Bv: maximum vertical static load stress reaction on bearing B
assoc. Ah: associated horizontal static load stress reaction on bearing A
III min. Av: (for tensioning brace)
min. Av: minimum vertical static load stress reaction on bearing A
assoc. Bv: associated vertical static load stress reaction on bearing B
assoc. Ah: associated horizontal static load stress reaction on bearing A
IV min. Bv: (for tensioning brace)
assoc. Av: associated vertical static load stress reaction on bearing A
min. Bv: minimum vertical static load stress reaction on bearing B
assoc. Ah: associated horizontal static load stress reaction on bearing A
The sizing of the individual connection points A and B must be verified for the worst
case stress arising from the four load combinations mentioned above.
Negative vertical static load stress reactions identify lifting loads.
5822135 GB
+Ah
+Av
+Bv
