Viessmann Vitosol100 - H Vitosol 100

2.4Selection of collector types
Vitosol 100
10
40
D
E
F
C
B
A
D
C
17
VITOSOL
Vitosol 100
Both versions are suitable for installation
on pitched and flat roofs.
The selection of method of installation,
either mounted on or integrated into the
roof are influenced by the structural
characteristics of the building. For
example, roof integration is
recommended for new building projects
(see information on design information
regarding roof integration).
Viessmann offers universal fastening
systems to simplify installation. The
fastening systems are suitable for
virtually any form of roof and roof cover
as well as for installations on flat roofs.
The fixing systems are statically designed
for the snow load zone 3 to 800 m above
sea level.
Viessmann offers a special solar panel
support to prevent breakages on tiled
roofs or for areas where snow loads
above 2.6 kN/m
2
are expected.
For this application, obtain a plastic tile
manufactured by Klöber from your local
builders’ merchant.
The parts required are illustrated on
page37.
Installation kits are available for
supporting solar panels on flat roofs.

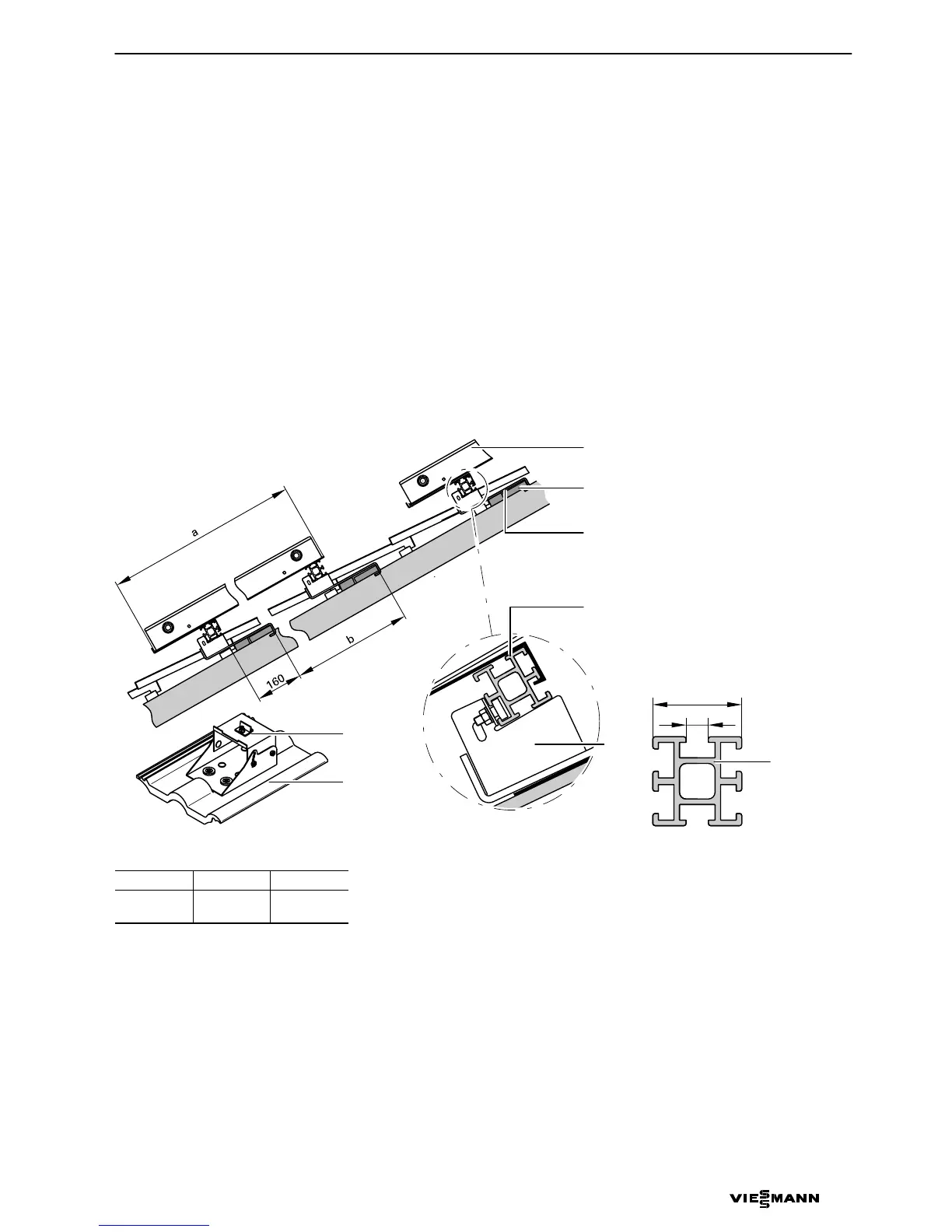

Pitched roofs  mounting on the roof
Design information regarding installation surfaces
Type s/w 2.5
Collector
ammbmm
Type s
Type w
2385
1138
19002100
500900
A Collector
B Additional batten
C Roof tie
D Mounting rail
E Plastic tile (on site, 4 no. per collector)
F Solar panel support for roofs with
higher snow loads
Note
The mounting rails are affixed directly to
the on−site substructure using clamping
bolts, if panels are installed without roof
ties, e.g. on tin roofs.
5822135 GB
